Description
High-Torque Brushless Gimbal Motor for DSLR Cameras

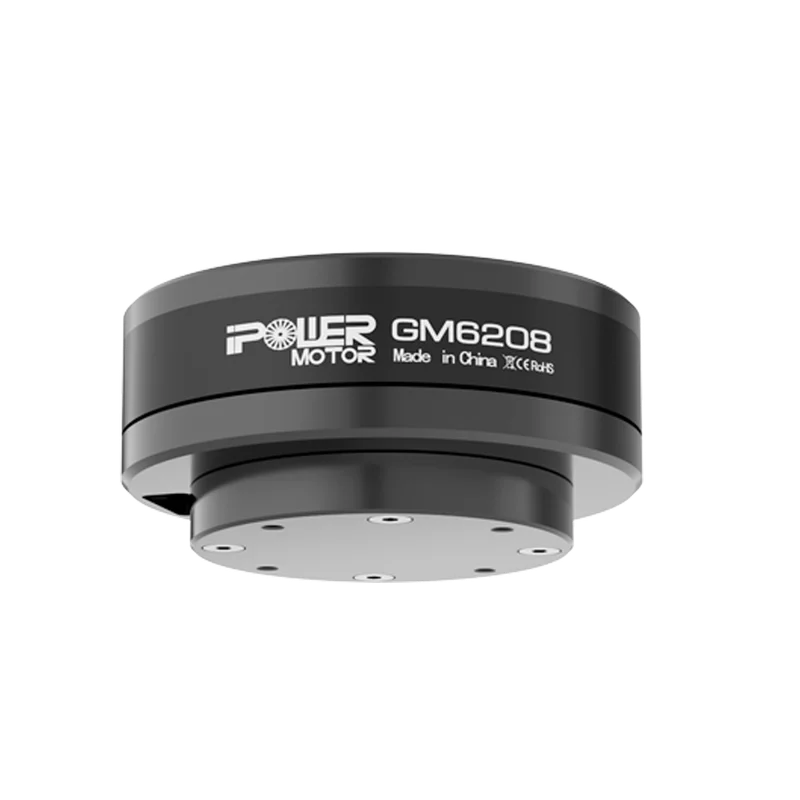

The iPower GM62 Series Motor is a powerful brushless gimbal motor engineered for professional camera stabilization.
It’s ideal for DSLR and cinema cameras such as the Canon 5D Mark II/III or RED Epic, delivering up to 4 kg·cm of torque for perfectly smooth and stable movement.
Designed for heavy-lift multi-rotor platforms, this motor combines strength, precision, and reliability.
Using brushless direct-drive technology, it provides accurate, quiet, and responsive stabilization — outperforming traditional servo-based gimbals.
Key Features
High Torque Output: Up to 4 kg·cm, ideal for DSLR and cinema cameras.
Compatible Cameras: Canon 5D Mark II/III, RED Epic, and similar setups.
Direct-Drive Brushless Design: Smooth, silent, and highly precise stabilization.
Heavy-Lift Capability: Perfect for large multi-rotor and professional aerial rigs.
Durable Build: Designed for consistent performance under demanding conditions.
Professional Use: Optimized for cinematography, aerial filming, and gimbal builders.
Specifications
Model: GM6208
Motor Out Diameter: Ф69.5±0.05mm
Configuration: 24N/28P
Motor Height: 32±0.2mm (Included with Encoder housing)
Hollow Shaft(OD): Ф25-0.01/-0.015 mm
Hollow Shaft(ID): Ф22+0.05/+0 mm
Wire Length: 610±3mm
Cable AWG: #24
Motor Weight: 265±0.5g
Wire plug: 2.5mm dupont connector
No-load current: 0.08±0.1 A
No-load volts: 20 V
No-load Rpm: 209~231 RPM
Load current: 1.2A
Load volts: 20V
Load torque(g·cm): 2600-3600
Motor internal resistance: 32Ω±5%（Resistance varies with temperature）
High voltage test: DC500V 1mA @2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): clockwise
High-low temperature test:
High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤25W
Working current: 3-5S
Working temperature: -20~60℃;10~90%RH
Compatible Sliprings
None Available at this time
Packing List
1 x GM6208 150T Brushless Gimbal Motor
1 x AS5048A Encoder with aluminum case
