Description
JIYI KX Flight Controller Parameters
| Supported frame types | I4. X4 quadrotor |
| IY6. Y6. I6. V6 hexacopter | |
| V8. I8. X8. IX8 octocopter | |
| Recommended battery types | 4S-12S LIPO battery |
| Supported receiver type | SBUS receiver |
| Support peripherals | K-BOX. RTK. obstacle avoidance radar. terrain following radar |
| integrated remote transmitter. FPV camera. binocular vision sensor | |
| System requirements for assistant software | Windows 7 /8 /10 (32 or 64 bit) |
| Hover accuracy | Horizontal ±1.5m Vertical ±0.5m |
| Maximum tilt angle | 30° |
| Maximum yaw speed | 150°/s |
| Maximum vertical speed | 6m/s |
| Maximum wind resistance | Continued wind level 4. Gust level 5 |
| Power dissipation | ＜5W |
| Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -25℃~60℃ |
| Operating voltage range | FC 4.8V-5.3V |
| GPS、Beidou 5V | |
| LED 5V | |
| Colour | silver |
| Weight | Total net weight 321g (excluding accessories) |
| FC 87g | |
| GPS 45g | |
| LED 14g | |
| Size | FC 72.6 × 48.0 × 22.8 mm |
| GPS Φ62.0 × 14.3 mm | |
| LED 24.0 × 24.0 × 8.0 mm | |
| Whole box weight | 484g |
| Whole box size | 256 x 176 x 55 mm |
Package Includes
Standard Combo Package Included:
JIYI KX flight controller * 1
GPS * 1
LED * 1
PMU * 1
Standard Combo Package Included:
JIYI KX flight controller * 1
GPS * 1
LED * 1
PMU * 1
CAN-HUB module * 1
Obstacle Avoidance Radar * 1

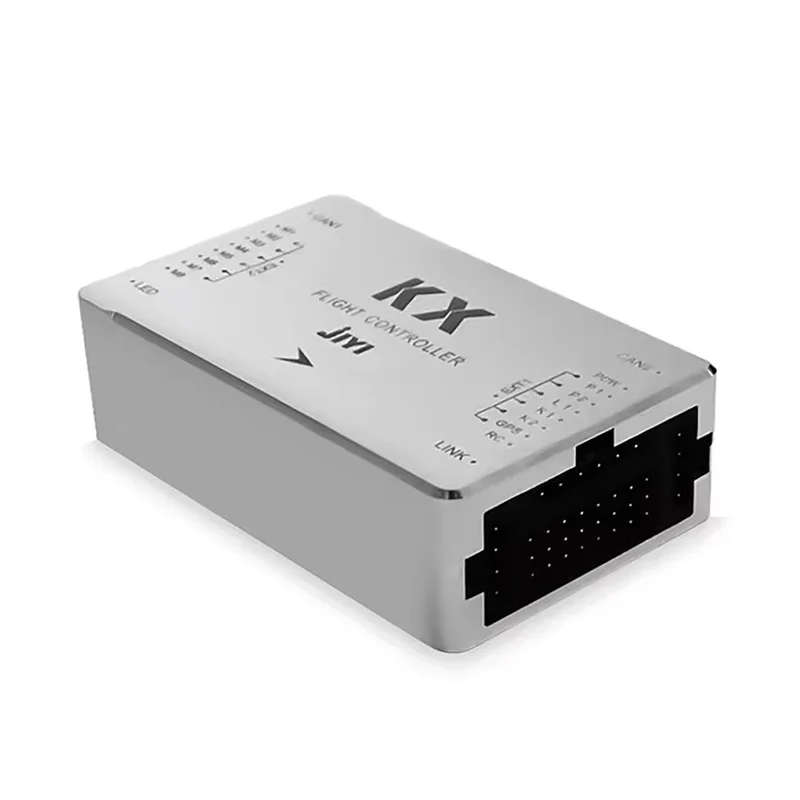

JIYI KX Flight Controller Details
KX flight controller is designed for industrial application scenarios. with redundant control of software and hardware. It has advanced diagnostic algorithms to meet the applications of power line inspection. fire fighting. logistics. emergency rescue. transportation. surveying and mapping. etc. Provide API interface development according to different needs.
JIYI KX Flight Controller Features:
- Frame Type
