Description

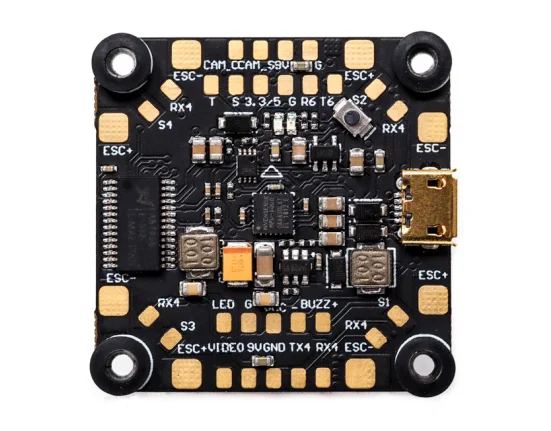

Introducing the second version of the popular Bardwell F4 flight Controller! Redesigned to make them as reliable as possible, the V2 has updated OSD circuits along with a more robust 9v regulator. The factory calibrated current sensor has been increased from 130A to 240A after reports that some users were exceeding the limits on the original FC. The 4-in-1 connector plug has also been updated to support both ESC telemetry and analog current sense which gives you compatibility with all ESCs.
Features
- All the important stuff! 3-6s F4, AIO board with centrally located MPU 6000 gyro.
- Clean builds are super easy with the layout of this compact 30.5×30.5 board.
- Josh Bardwell authored manual and selected features, manufactured and backed by RaceDayQuads.
- Strong filtering for clean video on both 9v and 5v outputs.
- No pinned-connectors on this board! All pads are direct solder for durability.
Specifications
- Betaflight OSD w/240a current sensor
- 4x UARTS for FRSKY, SBUS, IBUS, SAT (2 inverted UARTS)
- Power Out: 3x 5v, 1x 3.3v, 1x VBAT, 1x VTX filtered power (9v), 1x Camera filtered power (9v)
- Smart Audio compatibility and Camera Control capability
- Programmable LED pin
- Buzzer pins
- Pre-flashed with BF 3.2.2 – Compatible with CLRACINGF4.hex
- Blackbox capability
- Included and installed vibration dampeners/gummies
- Single Current Shunt Version
- Weight: 7.29g
Operating Manual
For a detailed and complete operating manual authored by Joshua Bardwell, please click here.
JST Connector Pinout
- VBat – Current – GND – NC – M1 – M2 – M3 – M4
