Description

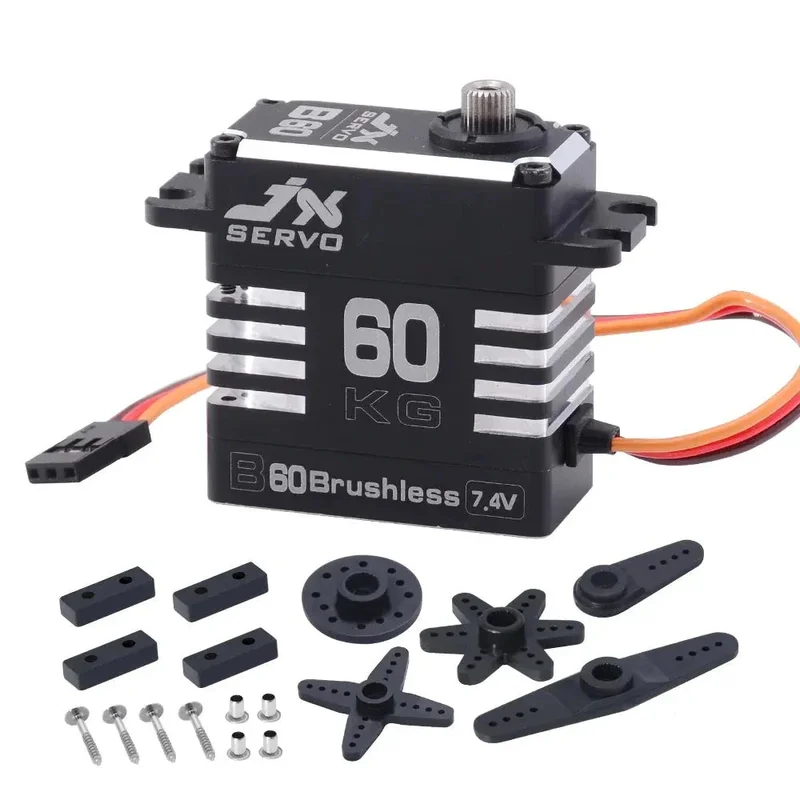

JX Servo B60 – 8.4V 60KG Servo SPECIFICATIONS

Brand Name: JX

Origin: Mainland China

Material: Metal

RC Parts & Accs: Servos

Size: 40.5X20.2X38mm

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Servos

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Technical parameters: Value 5

Model Number: JX Servo B60

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Factory supply .Huge stocks. Support wholesale！Please kindly to contact us. the price can be negotiated 🙂

Features:
-60KG.CM high torque full metal hollow cup steering gear
-High precision Taiwan made metal teeth
-CNC full metal aluminum case
-Double ball bearings

Detailed specifications:

Brand：JXModel：B60Item Name ：Standard Super Large Torque BrushlessDetailed specifications:Dead zone: 2μsPulse width range: 1000μs-2000μs = 90 °500μs-2500μs = 180 °Motor: hollow cupSpeed (6.0V): 0.13 sec / 60 °Speed (7.4V): 0.12 sec / 60 °Speed (8.4V): 0.11 sec / 60 °Torque (6.0V): 52 kg.cm(722.06oz/in)Torque (7.4V): 55 kg.cm(763.72oz/in)Torque (8.4V): 62 kg.cm(860.92oz/in)Size: 40X20X43.3mm/1.57*0.79*1.7inWeight: 87 gCable: JR 265 mm (10.43in)Bearing: 2BBOutput tooth: 25T (Metal Gear)The package contains:1x B60 Servos1x Servo Spare Parts Set（Contains steering gear kit. flat. half. cross. *. disc. related screws）

1 60KG HIGH TORQUE SERVO MOTOR 8 3 JN SERVO 3 80 KG BOBrushless 7.4V Catnd CPOOO0 Industrial RC Airplane RC Car And more Onea

JX Servo B60: High-Torque Brushless Servo for RC Cars with 0.11 seconds per 60° rotation. featuring a full metal shell and metal gear design. suitable for RC models.
