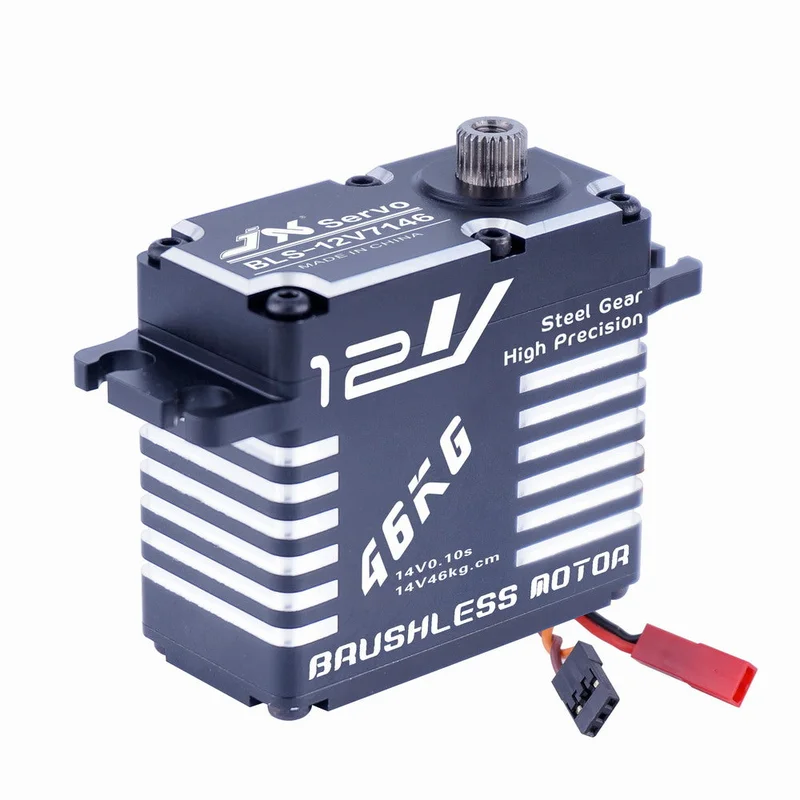

JX Servo BLS-12V7146 – 46KG 12V High Precision Steel Gear Full CNC Aluminium Shell Structure Digital Brushless

Description

Detailed introduction

FEATURE:
— 12V High voltage

— High performance programmable digital brushless standard servo
— High-precision Taiwan-made steel gears with hard anodizing
— Full CNC aluminium Shell structure
— Dual ball bearings

SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: brushless motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (14V): 0.10sec/60°
Stall Torque (11.1V): 38kg.cm
Stall Torque (14V): 47kg.cm
Dimensions: 40X20X37mm
Weight:  71 g
Connector Wire Length: JR  265 mm
Bearing: 2BB
