Description

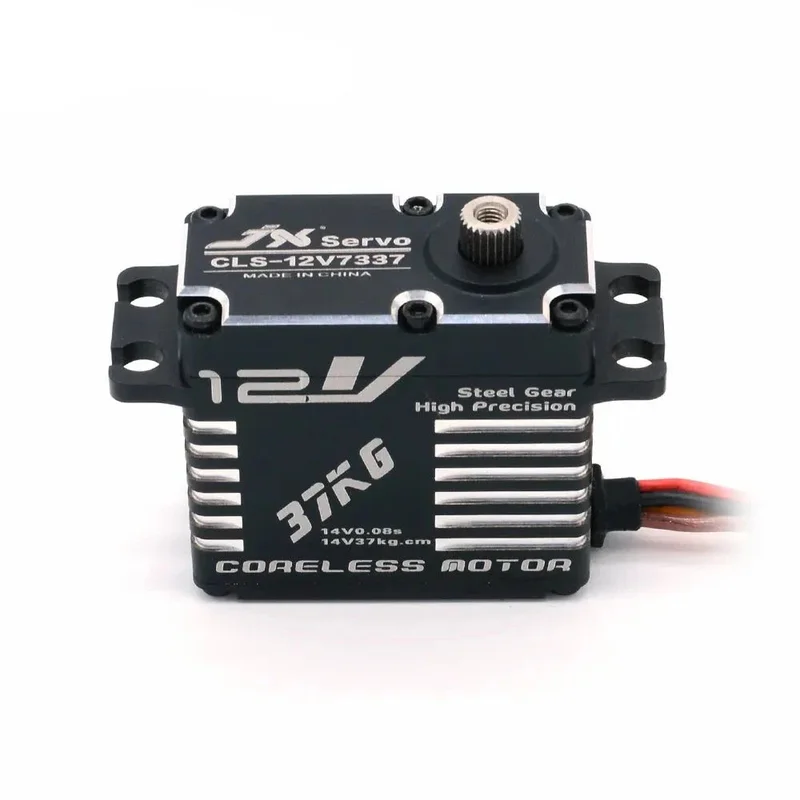

JX Servo CLS-12V7337 SPECIFICATIONS

Brand Name: JX

Remote Control Peripherals/Devices: Servos

Size: 40X20X37mm

Technical parameters: Value 5

Wheelbase: Screws

Recommend Age: 14+y

RC Parts & Accs: Servos

Certification: CE

Certification: FCC

Certification: RoHS

Use: Vehicles & Remote Control Toys

For Vehicle Type: Cars

Origin: Mainland China

Material: Metal

Upgrade Parts/Accessories: Servo

Model Number: CLS-12V7337

Quantity: 1 pcs

FEATURE:

— 12V High voltage

— High performance programmable digital brushless standard servo

— High-precision Taiwan-made steel gears with hard anodizing

— Full CNC aluminium Shell structure

— Dual ball bearings

SPECIFICATIONS:

Dead band: 1μs

Working frequence: 1520μs / 330hz

Motor: brushless motor

Operating Speed (11.1V): 0.1sec/60°

Operating Speed (14V): 0.08sec/60°

Stall Torque (11.1V): 33kg.cm

Stall Torque (14V): 37.5kg.cm

Dimensions: 40X20X37mm

Gear Teeth:25T

Control Angle:120 Degree

Weight:  73 g

Connector Wire Length: JR  265 mm

Bearing: 2BB
