Description

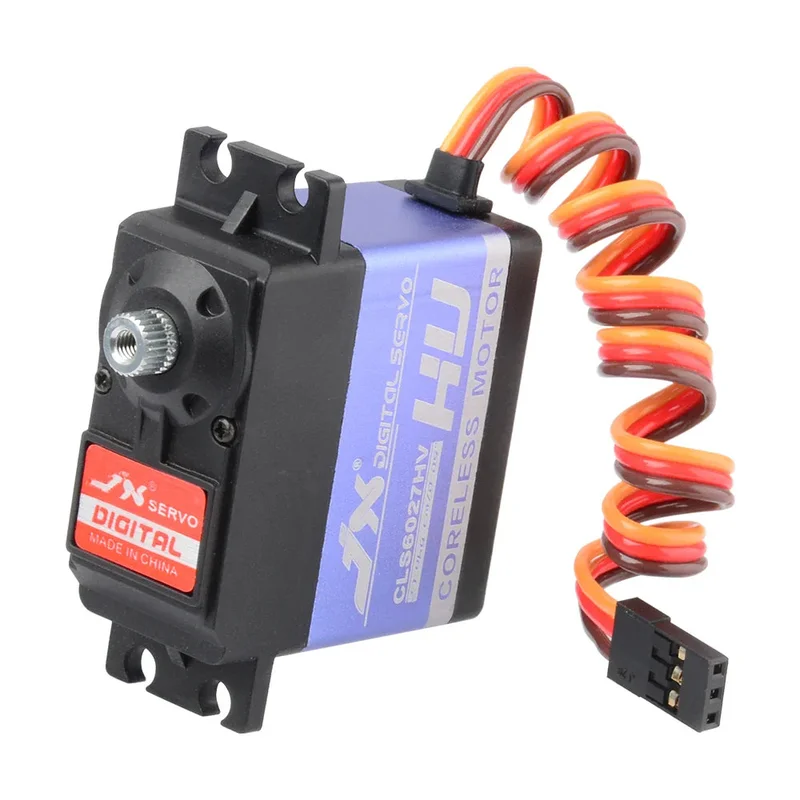

JX Ecoboost Servo CLS6027HV SPECIFICATIONS

Origin: Mainland China

Material: nylon

Use: Vehicles & Remote Control Toys

FEATURE:

—–CNC metal On the cover In the shell

—–High-precision Taiwan-made aluminium gears with hard anodizing

—-27kg Large torque 0.09s 7.4V

—-Coreless Motor

Brand:JX servo

Model:CLS6027HV

:JX Ecoboost 27kg Coreless Motor Servo

Dead band: 2μs

Working Frequence:1520μs / 330hz

Motor: coreless motor

Operating Speed (6V): 0.11sec/60°

Operating Speed (7.4V): 0.09sec/60°

Stall Torque (6V): 22.6kg.cm (313.99oz/in)

Stall Torque( 7.4V): 27.4kg.cm (381.37oz/in)

Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in

Weight: 60g (1.9oz)

Connector Wire Length: JR 265 mm (10.43in)

Bearing: 2BB

Gear Tooth:25T

Wire/Color:JR 265 mm/ -Brown +Red S Orange

Package Included:

1 x Servo
1 x Bag of Accessories
