Description

Detailed introduction

FEATURE:

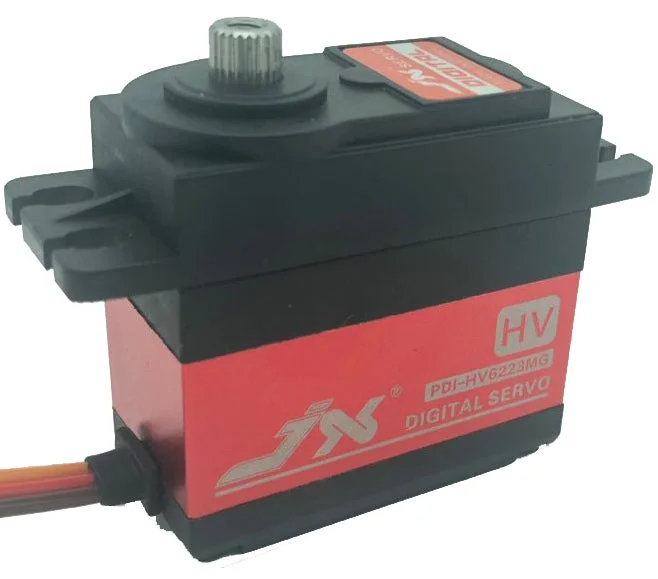

— High performance HV digital standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shell
— Dual ball bearings

SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16 sec/60°
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V):  23 kg.cm
Dimensions: 40.5X20.2X38mm
Weight:  62 g
Connector Wire Length: JR  265 mm
Bearing: 2BB

Product sellpoints

• Small size: The servo is small in size and light in weight. which is very convenient to carry and store.

• Easy to installation: The servo replacement kit is easy to install and disassemble. no tools required. it can be installed in a few minutes.

• High efficiency: The servo is equipped with high-quality aluminum alloy. which can be used for a long time.
