Description

JX Servo PS-4806HB  SPECIFICATIONS

Brand Name: JX

Remote Control Peripherals/Devices: Servos

Tool Supplies: Grinded

Size: 40.5X20.2X38mm

Technical parameters: KV1100

Wheelbase: Bottom Plate

Recommend Age: 12+y

RC Parts & Accs: Servos

Certification: CE

Certification: FCC

Certification: RoHS

Use: Vehicles & Remote Control Toys

For Vehicle Type: Cars

Origin: Mainland China

Material: Plastic

Upgrade Parts/Accessories: Gear

Model Number: 6KG Standard Servos

Quantity: 1 pcs

Features:
Standard size analog servo
Plastic gear train
Dual ball bearing supported output shaft
Fast 0.12sec transit time
6.21 kg-cm of torque

Specification:

Brand:JX SERVO

Model:PS-4806HB

:48g 6KG Analog plastic gear servo

Dead band:7μs 1520μs / 50hz

Operating Speed (4.8V): 0.14sec/60°

Operating Speed (6V): 0.12 sec/60°

Stall Torque (4.8V): 5.56kg.cm (72.23oz/in)

Stall Torque (6V):  6.21 kg-cm (86.26 oz/in)

Dimensions:  40.5X20.2X38mm

Weight:  48.5 g (1.71oz)

Connector Wire Length: JR  265 mm (10.43in)

Gear teeth:25T

Package Included:

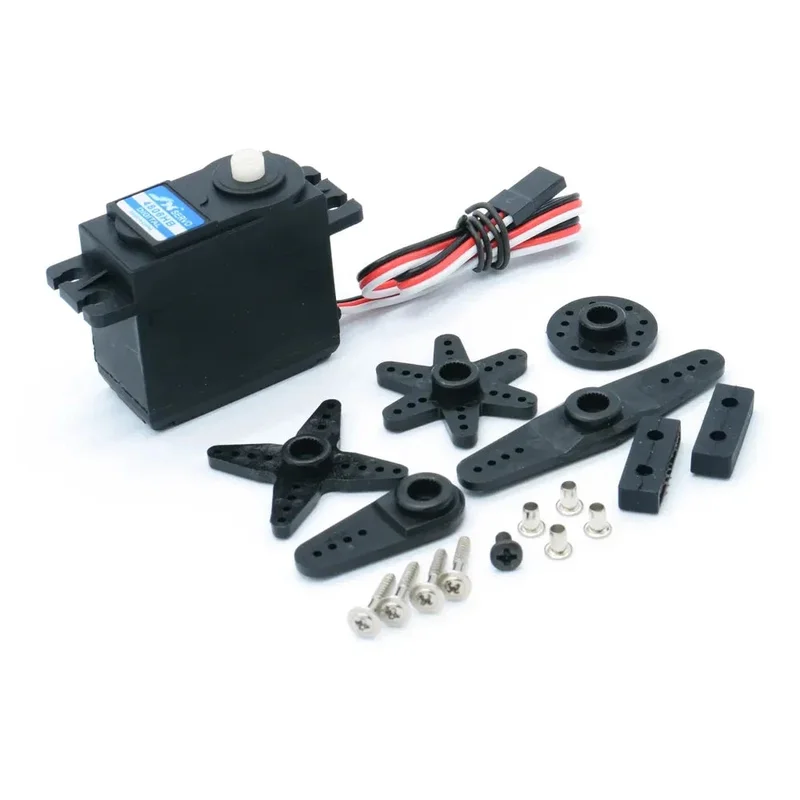

1 x PS-4806HB Servo
1x Bags of Accessories

JX Servo.PS-4806HB.6KG 4.8-6.0V.Standard Servos.Plastic Steering Gear.Core Motor.For RC Models.Remote Control.Parts Accessories
