Description

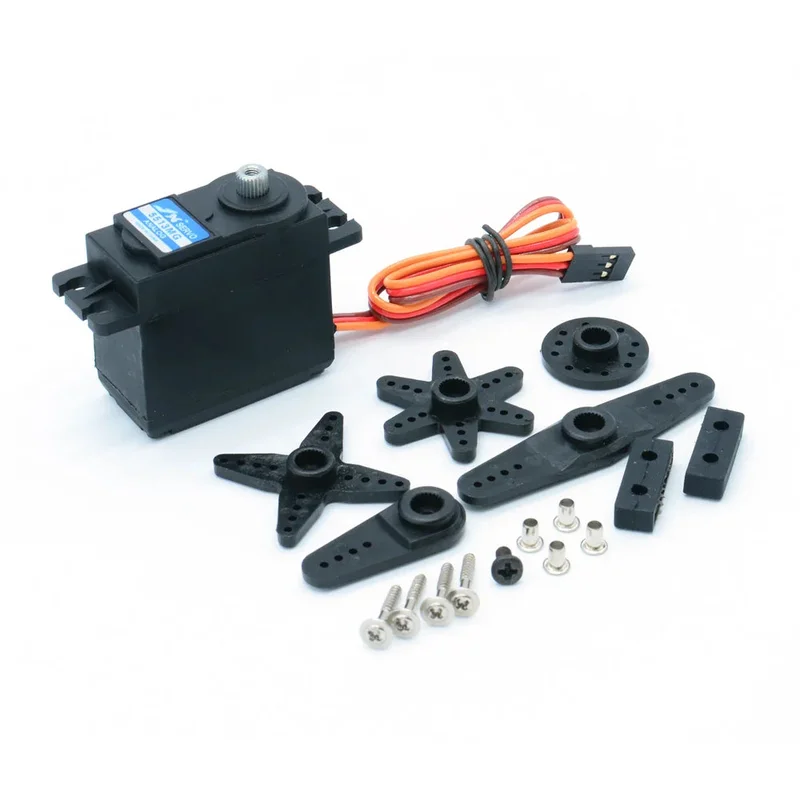

JX Servo PS-5513MG  SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Srvo

Size: 40.5X20.2X38mm/1.59X0.80X1.49 in

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servo

Tool Supplies: Assembled class

Technical parameters: Value 5

Model Number: JX Servo PS-5513MG

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

FEATURE:

— High-precision Taiwan-made metal gears
— Dual ball bearings

SPECIFICATIONS:

Dead band: 7μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.20sec/60°
Operating Speed (6V): 0.18 sec/60°
Stall Torque (4.8V): 11.75kg.cm (163.21oz/in)
Stall Torque (6V): 13.06 kg-cm (181.40 oz/in)
Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49 in
Weight: 55.6 g (1.96oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Tooth Count: 25
