Description
Highly Simulated Scale Trail Truck Chassis

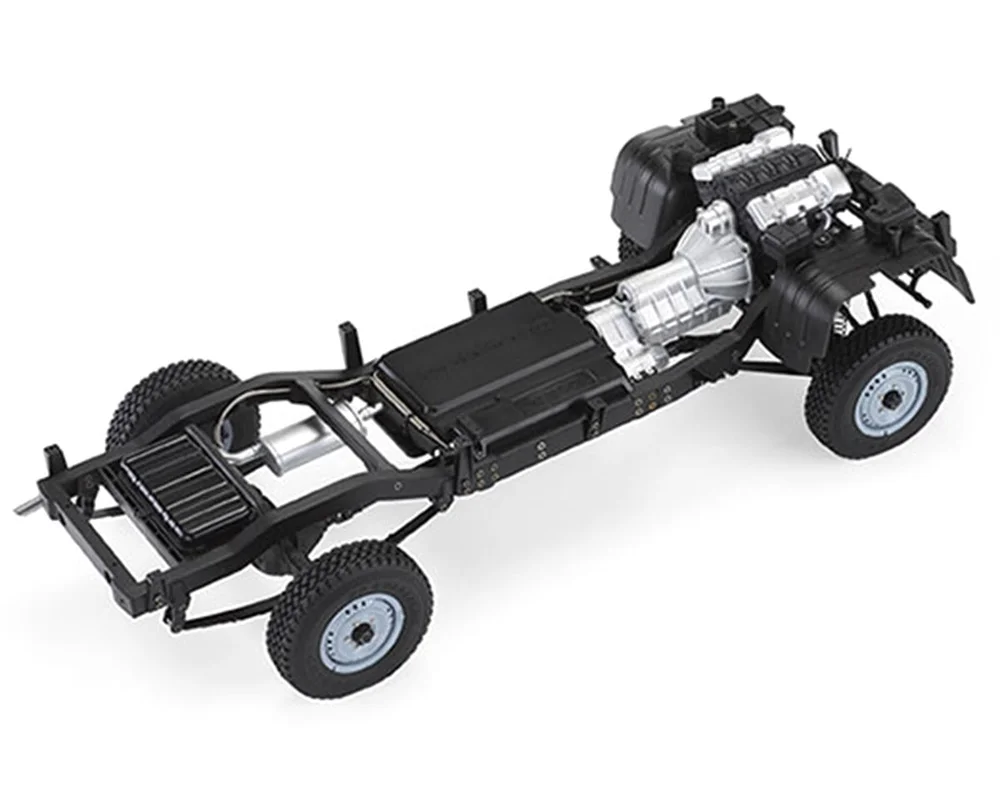

Killerbody Mercury Partially Assembled Scale Trail Truck Chassis Kit. Although it is packed with unique features such as the 2-speed transmission, 4WD and 2WD switchable drivetrain, Rather than following traditional performance oriented rock crawlers, this Killerbody Mercury chassis kit was designed to fulfill the need of a highly detailed and scale oriented platform for all the realistic scale builders!
Features factory assembled axles and transmission, 2-speed transmission with locking/unlocking differentials mechanism, 4WD and 2WD switchable drivetrain, CMS (Chassis Mounted Servo), All metal gears, 3-Link front suspension and Leaf springs rear suspension with damper cylinder. In addition, 1.65″ aluminum scale beadlock wheels with 3.35″ scale trail tires are included with the kit to match the scale realism of the LC70 body! Get this scale focused Mercury Trail Truck Chassis Kit to build your own custom scale trail truck and venture the trails in style!
NOTE:
- Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
- Painted LC70 body (KLR-48601 – Sold Separately) shown in the photos is for illustrative purposes only. The kit you will receive does not include a body.
Features:
- Pre-assembled axles and transmission
- Specially designed to fit the Killerbody LC70 hard body kit
- 2-Speed transmission with locking/unlocking differentials mechanism
- 4WD and 2WD switchable
- CMS (Chassis Mounted Servo)
- 3-Link front suspension
- Leaf springs rear suspension with damper shocks
- All metal gears
- 1.65″ Aluminum scale Beadlock Wheels
Specifications:
- Scale: 1/10
- Length: 490mm
- Width: 200mm
- Height: 200mm
- Wheelbase: 313mm
- Ground Clearance: 25mm
- Approach Angle: 43 degree
- Departure Angle: 33 degree
- Weight: 1500g
- Drive: 4WD/2WD Switchable
- Assembly Level: Partially assembled
Includes:
- (1) Mercury Chassis Kit
- (4) Beadlock Wheels
- (4) Tire
- Instruction Manual
Needed to Complete:
- (1) +6 Channel Transmitter/Receiver System
- (1) Steering Servo
- (3) Shift Servos
- (1) 1/10 ESC
- (1) 540 Size Motor
- (1) LiPo Battery and Charger
