M10 GPS V2 + TPU Upgrade Kit

Description

The newly upgraded BLITZ M10 GPS V2 has arrived, offering faster and more stable satellite search. This advancement in technology provides users with a more reliable and efficient GPS experience.

Features:

• UBLOX M10 chip, low power consumption, strong signal
• Compass module QMC5883L integrated
• Built-in farad capacitor for faster hot start
• High-precision positioning
• Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
• 10 Hz Refresh rate
• Built-in Flash

Specifications:

Compass module: QMC5883L

Baud Rate: 9600-460800 / 4800bps-921600bps (Default – 115200bps)

Sensitivity: Tracking: -167dBm

Cold start: 27s

Hot start: 1s

Maximum height: 80000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Refresh Rate: 10 Hz

GPS patch antenna size: 18.2 x 18.2 x 4 mm / 25 x 25 x 6 mm

Total dimensions: 20 x 21 x 8 mm / 25 x 25 x 11 mm

Weight: 8g / 16 g

Input Voltage: 3.3-5.5 V

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Compatibility:

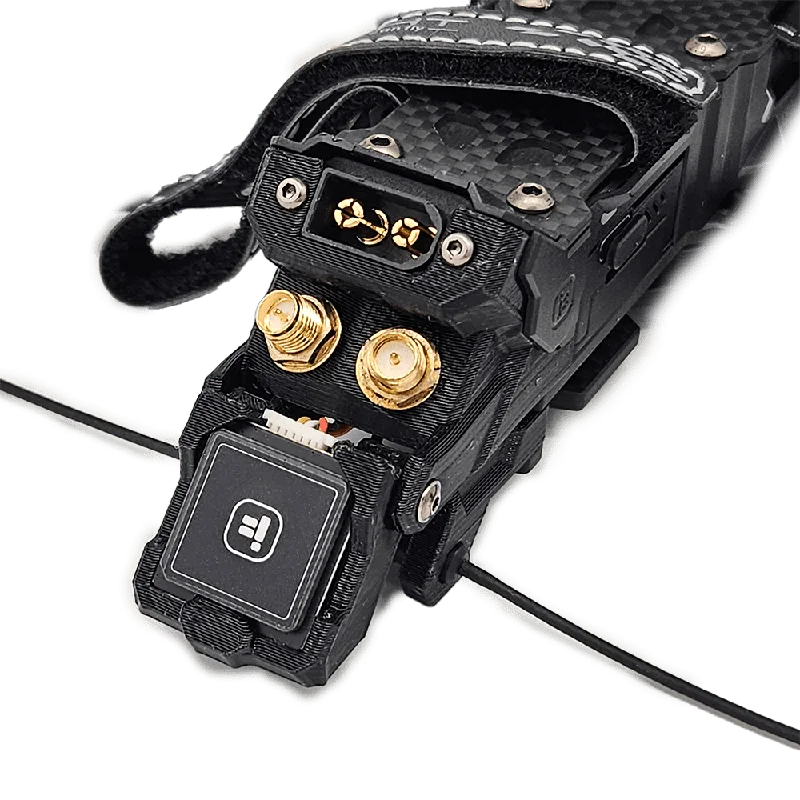

Single-Hole TPU mount:

Chimera7 Pro v2

iH3 O3

Nazgul Evoque F4/F5/F6

Nazgul DC5 ECO

Nazgul XL5 ECO

XL10 v6

BOB57 HD

Dual-Hole TPU mount:

Nazgul5 V3

Taurus X8 Pro/V3

ProTek60 Pro

Packing List

1 x BLITZ M10 GPS V2 (Mini 20x21x8mm)

1 x pc SH-1.0-4Pin silicon wire

1 x TPU Print Mount (optional Single or Dual Hole Mount)

1 x Installation Kit (including screws)
