Description

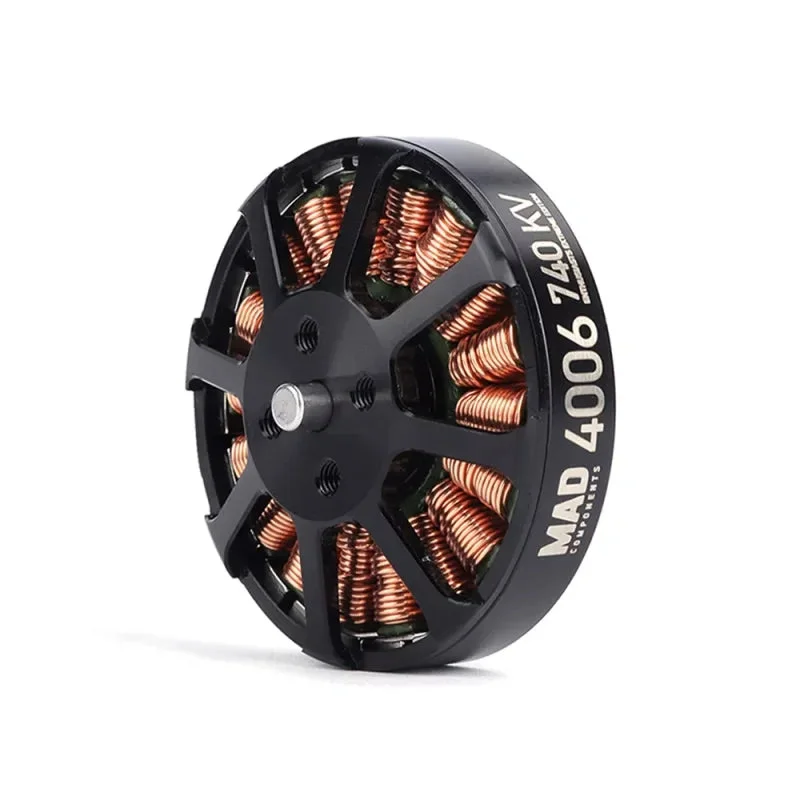

MAD 4006 EEE Drone Motor SPECIFICATIONS

Brand Name: MAD COMPONENTS

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

MAD 4006 EEE drone spare parts dc drones with motor brushless for extended time.MAD 4006 is positioned for single shaft load 500-1000g. used with 16-16 inch carbon propeller. single shaft maximum pulling force up to 2200g. single motor weight 70g.The motor has low energy consumption and high efficiency. and uses extremely durable high-quality imported bearings. which makes the rotation more stable and provides better safety guarantee.

* Open body design for better passive heat dissipation.

* Propeller installation compatibility.

* Reduced motor weight.

* Motor mounting holes standarization

* Passive heat dissapation

* Lower power consumption & Maximized performance

  Company Profile

  FAQ

  Certifications

Specifications

• Is ElectricNo batteryQuantity1 pcs
• Size110*110*50mmModel NumberMAD 4006 EEE
• For Vehicle TypeHelicoptersTool SuppliesAssembly Category
• Four-wheel Drive AttributesMotorsRemote Control Peripherals/DevicesMOTOR
• RC Parts & AccsMotorsMaterialMetal
• Brand NameMAD COMPONENTSOriginMainland China
• Recommend Age14+yUseVehicles & Remote Control Toys
• CertificationCE.RoHSMotor ModelMAD 4006 EEE
• KV320KV/380KV /740KVConfiguration18N24P
• Motor Dimensions44.5×18.5mmDegree of ProtectionIP14
• Wire150mmWire Pressure Test500V
• StatorImported/Anti-CorrsiveMaxmium Power268.72W
• Maxmium Thrust1.8KGPackageColor Box
