Description

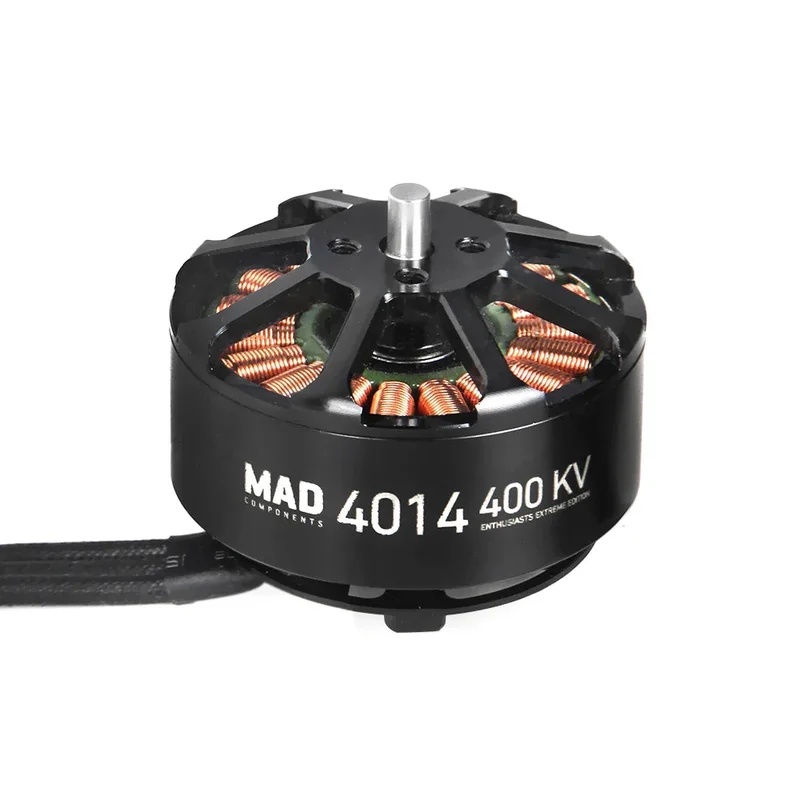

MAD 4014 EEE Brushless Drone Motor SPECIFICATIONS
Brand Name: MAD COMPONENTS
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
Size: 110*110*50mm
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: RoHS
Remote Control Peripherals/Devices: MOTOR
Tool Supplies: Battery
Quantity: 1 pcs
Model Number: MAD 4014 EEE
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Configuration: 18N24P
Motor Dimension: 44.9×31.5mm
KV: 370KV/400KV
Wire: 18#600mm
Wire Presssure Test: 500V
Degree of Protection: IP14
Motor Weight: 142g
Box Weight: 2.9kg
Package: Color Box
MAD 4014 EEE Motor Data
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD 4014 EEE V1.0 | Number of pole pairs | 7 |
| Stator | Japan / Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:44.9 × 31.5mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 18# 600mm (extended Enameled wires) |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:25 M3×4. D:32 M2.5×3 |
| Bearing | EZO 685ZZ | Disruptive test | 500 V |
| Additional Accessories | Prop Adapter *2. Propeller Plate *2. M6 Bullet *2. Prop Adapter *2. Ø4-6 Adapter Ring *2. 3.5mm Bullet Connector *6. Heat Shrinkable Tube 6. M38mm 8 Motor Screws. M36mm 8 Prop Adapter Fixing Screws. M310mm *4 Propeller Screws. Sticker *2 |
MAD 4014 EEE Specifications
| Specifications | |||
|---|---|---|---|
| RPM/V | 370KV | Nominal Voltage | 6S lipo battery |
| No Load Current | 1.25A / 20V | Internal resistance | 116.8mΩ |
| Motor Weight | 142 g | Product Boxed Weight | 488g (110 x 110 x 55 mm) 2pcs/box |
| Maximum Current | 23.06 A | Maximum Power | 507W |
| Maximum thrust | 2.9 kg | Maximum Torque | 0.636 Nm |
| Recommended ESC | MAD AMPX PRO 40A (2~6S) | Recommended Propellers | 15×5.0. 16×5.4. 17×5.8 |
| UAV take-off weight | 6S-16″/4.4kg–Quadcopter | ||
| 6.5kg–Hexacopter | |||
| 8.5kg–Octocopter | |||
| Single rotor take-off weight | 0.75kg ~ 1.1kg |
MAD 4014 EEE Brushless Drone Motor
MAD 40 Series motors are the classical UAV motors for small to medium industrial use. efficient and for endurance flight. This sizes of motors have been releasing in the market for 10years. MAD Components optimized them to be very lightweight design. MAD 4014 EEE is designed to carry payloads of 800–1600g per rotor. with 15-17 “carbon propeller. Support 6S. Max thrust of single rotor is up to 3100g. unit motor weighs 154g.
EEE reduction version design. minimized weight. optimized efficiency and flight time extended.
ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance.
* Open body design for better passive heat dissipation.
* Propeller installation compatibility.
* Reduced motor weight.
* Motor mounting holes standarization.
