Description

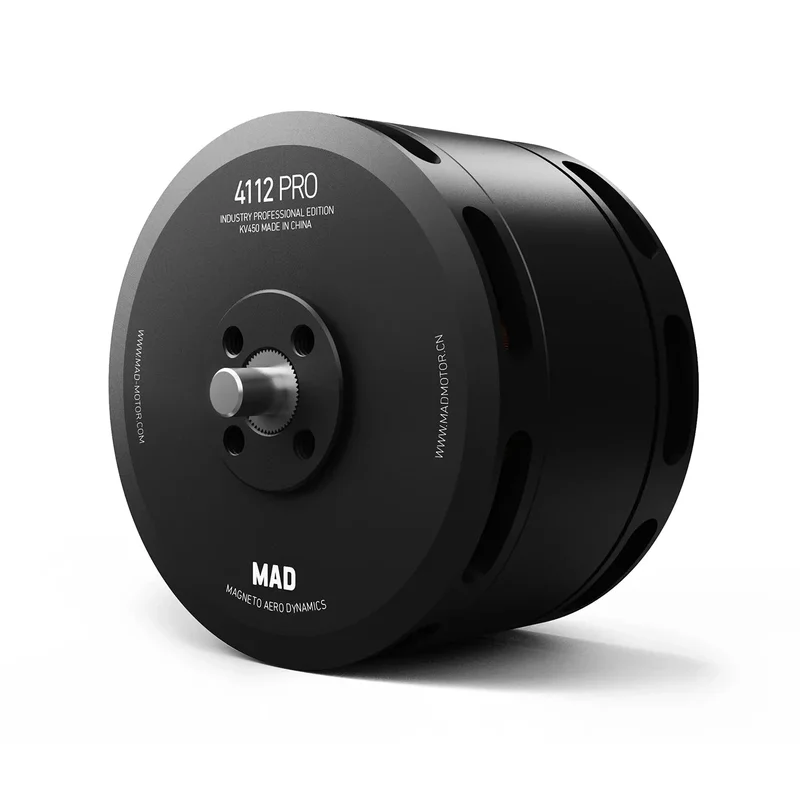

MAD 4112 PRO IPE 450KV Brushless Motor Overview
The MAD 4112 PRO IPE 450KV Brushless Motor is designed for high-performance drone applications. featuring a robust and efficient design. Key specifications include a 450KV rating. providing a maximum thrust of 3.8 kg and a maximum power of 920W. The motor operates with a nominal voltage of 6S lipo battery and supports a maximum current of 39.7 A. Weighing 146 g. it offers excellent heat dissipation and protection (IP35) with a 150 mm 16# Awg (Black) silicone cable. The motor is suitable for various UAV configurations. including quadcopters with a take-off weight of 6.8kg. hexacopters at 10.2kg. and octocopters at 13.6kg. Recommended ESC is the MAD AMPX PRO 40A (2~6S). and propellers of sizes 15×5.0 and 16×5.4 are suggested for optimal performance.
MAD 4112 PRO IPE 450KV Brushless Motor SPECIFICATIONS
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD 4112 PRO IPE V1.0 | Number of pole pairs | 12 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:46.6 × 34.7mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | EZO 685ZZ1 / EZO 695ZZ1 | Disruptive test | 500 V |
| Additional Accessories | Propeller Plate *2. Ø4-6 Adapter Ring *2. 3.5mm Bullet Connector *6. Heat Shrinkable Tube 6. M36mm 8 Motor Screws. M310mm *4 Propeller Screws. Sticker *2 |
| Specifications | |||
|---|---|---|---|
| RPM/V | 450KV | Nominal Voltage | 6S lipo battery |
| No Load Current | 0.91A / 20V | Internal resistance | 116.8mΩ |
| Motor Weight | 146 g | Product Boxed Weight | 532g (110 x 110 x 55 mm) 2pcs/box |
| Maximum Current | 39.7 A | Maximum Power | 920 W |
| Maximum thrust | 3.8 kg | Maximum Torque | 0.73 Nm |
| Recommended ESC | MAD AMPX PRO 40A (2~6S) | Recommended Propellers | 15×5.0. 16×5.4 |
| UAV take-off weight | 6S-16″/6.8kg–Quadcopter | ||
| 10.2kg–Hexacopter | |||
| 13.6kg–Octocopter | |||
| Single rotor take-off weight | 1.4kg ~ 1.9kg |
