Description
MAD ENCR V8015 Overview

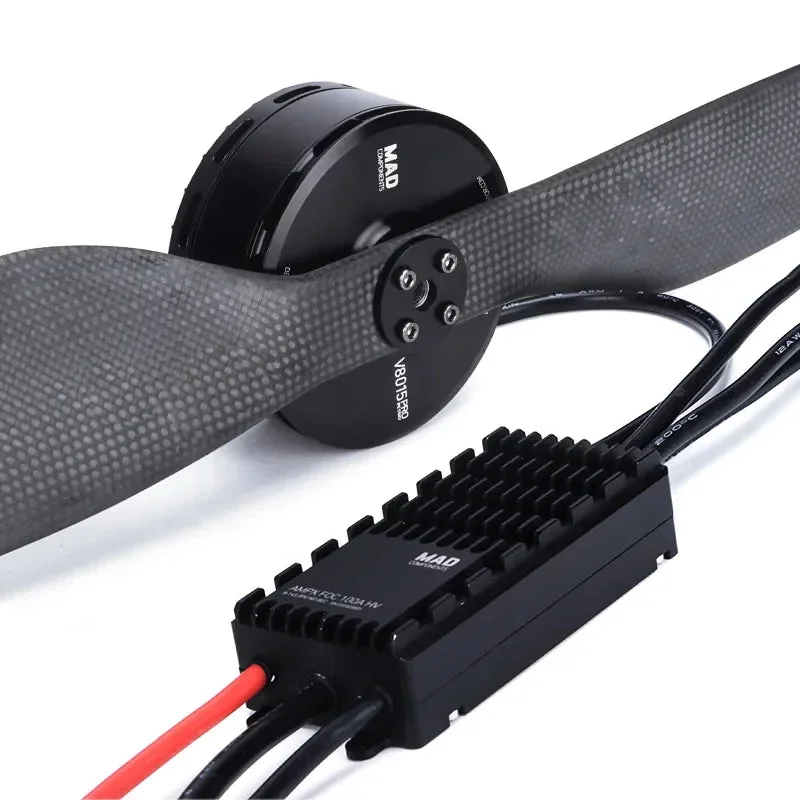

The MAD ENCR V8015 eVTOL Electronic Feathering Propeller Propulsion System is a high-performance solution for eVTOL aircraft. Featuring an anticorrosive stator from Taiwan. IP35 protection. and independent centrifugal heat dissipation. it ensures durability and efficiency. With a maximum thrust of 17.2 kg. a power output of 4484.9W. and a recommended 12S lipo battery. it is designed for heavy-lift applications. The system includes comprehensive accessories and supports various propeller configurations. making it ideal for demanding UAV missions such as quadcopters. hexacopters. and octocopters.
MAD ENCR V8015 Specifications
drone electric motor Data
| Attribute | |
|---|---|
| Motor Model | MAD V8015 PRO IPE V1.0 |
| Stator | TAIWAN / Anticorrosive |
| Motor Size | D:88.5 × 52.7 mm |
| Degree of Protection | IP35 |
| Centrifugal Heat Dissipation | YES |
| Propeller Mounting Holes | D:20 M3×4. D:23 M4×4 |
| Shaft Diameter | IN: 12 mm |
| Bearing | EZO 6901ZZ*2 |
| Number of pole pairs | 14 |
| Varnished wire Degree | 180°C |
| Magnet Degree | 150°C |
| Cable Length | 1000 mm 14# AWG(Black) silicone |
| Rotor Balance | ≤25 mg |
| Motor Balance | ≤10 mg |
| Motor Mounting Holes | D:40 M4×4 |
| Disruptive test | 500 V |
| Additional Accessories | M6 Propeller Plate 1. Conversion 1. 3.5mm Bullet Connector3. Heat Shrinkable Tube3. M4*12mm 4 Motor Screws. M314mm 4 Prop Adapter Fixing Screws. Sticker1 |
Motor Specifications
| Attribute | |
|---|---|
| RPM/V | 180KV |
| No Load Current | 2.85A / 20V |
| Motor Weight | 635 g |
| Maximum Current | 95.14 A |
| Maximum thrust | 17.2 kg |
| Recommended ESC | MAD AMPX FOC 100A (5-14S) |
| UAV take-off weight | 12S-28”/ 30kg–Quadcopter. 45kg–Hexacopter. 60kg–Octocopter |
| Nominal Voltage | 12S lipo battery |
| Internal resistance | 33mΩ |
| Product Boxed Weight | 978g (150 x 150 x 65 mm) |
| Maximum Power | 4484.9W |
| Maximum Torque | 5.7 Nm |
| Recommended Propellers | 26×7.8 |
| Single rotor take-off weight | 6.0kg ~ 8.5kg |
MAD ENCR V8015 eVTOL Electronic Feathering Propulsion System: Specifications – ESC Dimension: 95.00 x 86.20 x 3.20 mm; Connection: Red V+ Output U. Output V. Output W (Black V-); Encoder Yellow 485A. 485B (Green GND). White PWM input Connect Controller Black VGND. Propellers: Fluxer 26×7.8 MATT (660.4 x 198.1mm) – Single Weight: 69g; Material: High-quality carbon fiber Resin; Surface Treatment: Polished; Working Temperature: 35-60C; Storage Temperature: 10-50C; Storage Humidity: <85%; Optimum RPM: 1900-4000 RPM; Minimum Single Thrust Limitation: 18kg. Package includes Color box. 8x M3*1 4mm Mounting screws. and 2x Cover Plate.
