Description
Overview

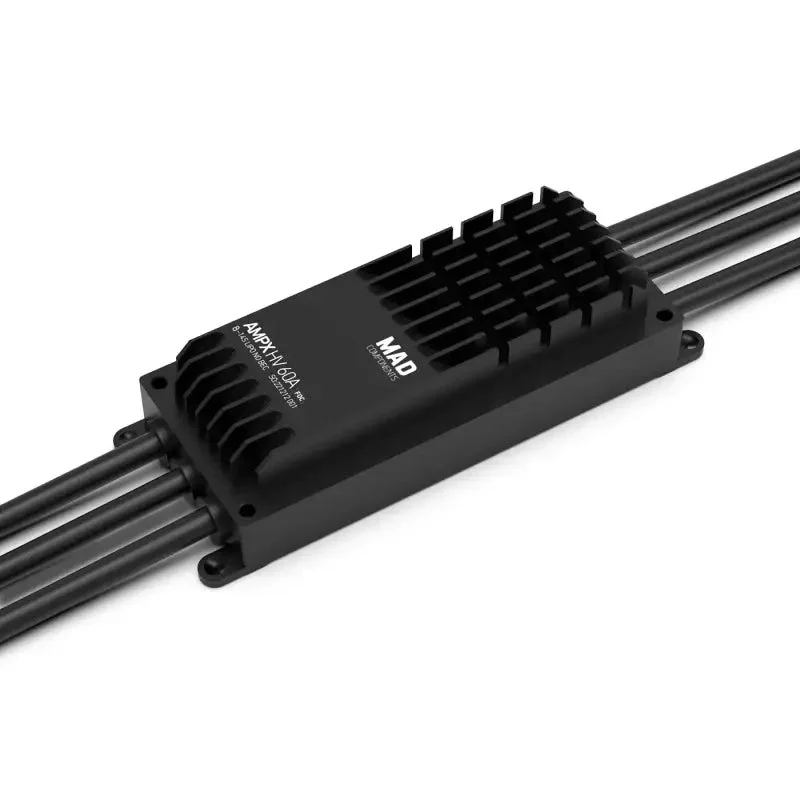

The MAD AMPX FOC 60A ESC is a Field-Oriented Control (FOC) electronic speed controller designed for industrial UAV applications. It supports 8-14S LiPo batteries. making it suitable for single rotors with a takeoff weight of up to 7kg. With FOC sinusoidal drive. it delivers smoother. quieter. and more efficient motor performance while reducing electromagnetic interference.
This ESC is customized for different motor and propeller combinations. requiring specific firmware settings. If no motor and propeller details are provided at purchase. the default firmware will be pre-installed. Firmware upgrade guidance can be found in the productsection.
Key Features
- Supports 8-14S LiPo Batteries – Wide input range for high-power drones.
- FOC Sinusoidal Drive – Efficient. low-noise. and high-precision motor control.
- Fast Throttle Response – Rapid acceleration and deceleration within 10ms.
- Optimized Heat Dissipation – Dual-sided heat dissipation reduces thermal resistance.
- Integrated Hardware Self-Check – Detects circuit defects and prevents failures.
- Comprehensive Protection – Includes short circuit. over-current. over-voltage. and temperature protection.
- CAN Communication Interface – Enables real-time ESC monitoring and firmware updates.
- IPX7 Waterproof Rating – Ensures durability in harsh environments.
Protection Mechanisms
- Short Circuit Protection – Prevents internal damage from electrical faults.
- Over-Current Protection – Ensures the ESC operates within safe power limits.
- Over-Voltage & Under-Voltage Protection – Prevents damage from improper battery voltage.
- Temperature Protection – Reduces power output if internal temperature exceeds safety limits.
- PWM Signal Loss Protection – Cuts power in case of throttle signal loss.
ESC Parameters
| Parameter | Specification |
|---|---|
| Model | AMPX FOC 60A ESC |
| Supported Battery | 8-14S LiPo (Recommended: 14S) |
| Maximum Input Voltage | 60.9V |
| Rated Output Current | 20A |
| Peak Output Current | 60A (10s) |
| Maximum RPM | 13000RPM (10 Pole Pairs) |
| PWM Input Level | 3.3V / 5V Compatible |
| PWM Pulse Width | 1100-1920us (Idle to Full RPM) |
| PWM Frequency | 50-450Hz |
| Communication | CAN |
| Firmware Upgrade | Yes (FOC ESC firmware tutorial available) |
| Weight (Excluding Wires) | 70g |
| IP Rating | IPX7 (Waterproof) |
| Operating Temperature | -20°C to 50°C |
ESC Connection
- PWM+ (1100-1920us) – Idling RPM to Full RPM.
- PWM- (1920-2400us) – Full RPM.
- Stop Signal – 0 RPM.
Idling and Full RPM can be adjusted via software.
ESC Dimension
- Length: 92mm
- Width: 35.4mm
- Height: 21.37mm
ESC Compatibility
| Electric Machinery | Voltage | Recommended Propeller |
|---|---|---|
| 5012 IPE KV160 | 48V | 20″ |
| 5012 IPE KV320 | 24V | 22″ |
| 5015 IPE KV150 | 48V | 22″ |
| MC06 EEE/IPE KV140 | 48V | 22″ |
| MC10 EEE/IPE KV300 | 24V | 22″-24″ |
| M7C10 IPE KV120 | 48V | 26″ |
| M8C08 EEE/IPE KV100 | 48V | 28″-30″ |
Important Notes
- FOC ESC requires correct firmware for different motor and propeller combinations. Please provide motor and propeller details when purchasing.
- If no details are provided. the default firmware will be pre-installed.
- Firmware upgrade tutorials are available in the productsection.
FOC ESC Software
1. View Manual
2. FOC ESC Software
3. FOC ESC Communication Protocol
This high-performance ESC is designed for professional UAV applications. offering high efficiency. precise control. and enhanced safety through its FOC drive system and comprehensive protection features.
AMPX 60A FOC ESC targets industry UAVs with Mad motors. up to 7kg take-off weight. Features fast throttle response. optimized heat dissipation. hardware self-check. comprehensive protection. modular design. and CAN communication for firmware updates and data recording.
Specifications for AMPX FOC 60A 8-14S include a working temperature of -20 to 50°C. IPX7 rating. and various protections. It supports CAN communication. has a maximum RPM of 13000 (10 pole pairs). and weighs 70g without cable. PWM settings control motor RPM from idling to full speed.
ESC dimensions are 79x30x84.4mm. AMPX ESC Recommendations list various electric machinery models. voltages (24V and 48V). and propeller sizes ranging from 20″ to 30″. The table includes models like 5012 IPE KV160 with 48V and a 20″ propeller. among others.
ESC blinking patterns and beeping sounds indicate various issues like motor startup failure. throttle signal problems. or hardware abnormalities. Solutions include adjusting idle throttle values. checking connections. ensuring proper wiring. and verifying power supply voltage. Troubleshooting steps help resolve ESC-related malfunctions effectively.
