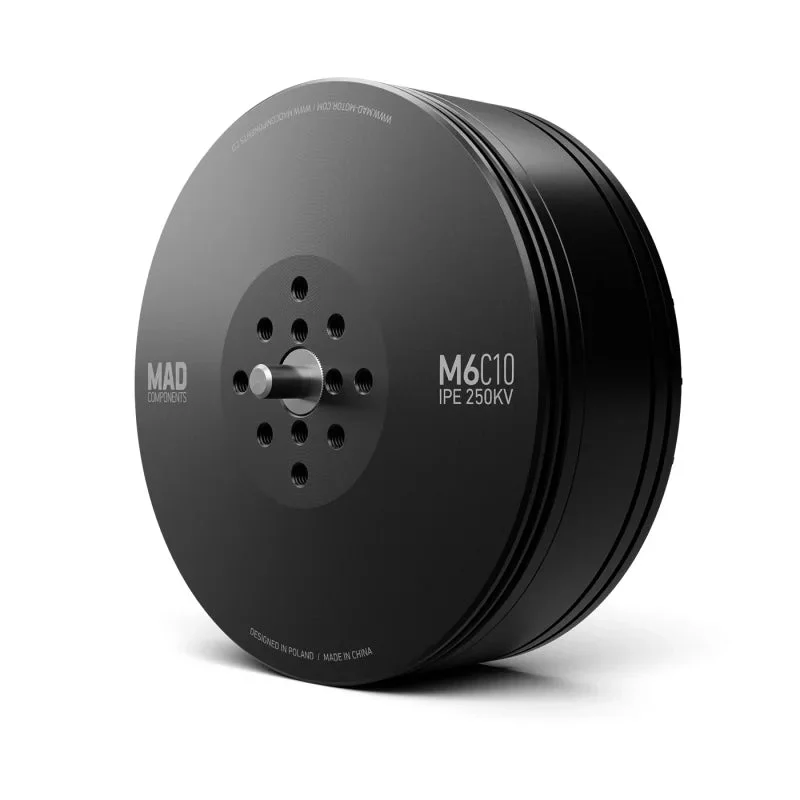

MAD M6C10 IPE V3 Drone Motor Overview
The MAD M6C10 IPE V3.0 is a versatile motor designed for UAV applications. with a focus on high performance and reliability. It features a range of RPM/V options from 150KV to 300KV. supporting various UAV configurations including quadcopters. hexacopters. and octocopters. The motor boasts IP45 protection. advanced centrifugal heat dissipation. and robust construction with high-quality bearings and stator. With a maximum thrust of up to 10.4 kg and compatibility with 12S lipo batteries. it is well-suited for demanding aerial applications. The motor’s design includes multiple propeller mounting options and comprehensive accessories. ensuring easy integration and optimal performance in diverse UAV setups.
MAD M6C10 IPE V3 Drone Motor Specifications
Motor Data
| Parameter | Value |
|---|---|
| Motor Model | MAD M6C10 IPE V3.0 |
| Stator | TAIWAN / Anticorrosive |
| Motor Size | D:72 × 33.4 mm |
| Degree of Protection | IP45 |
| Centrifugal Heat Dissipation | YES |
| Propeller Mounting Holes | D:12 M3×4. D:18 M3×4. D:22 M3×4 |
| Shaft Diameter | IN: 6 mm |
| Bearing | EZO 696ZZ *2 |
| Cable Length | 150 mm 16# Awg(Black) silicone |
| Motor Balance | ≤10 mg |
| Rotor Balance | ≤5 mg |
| Motor Mounting Holes | D:25 M3×4 |
| Disruptive test | 500 V |
| Additional Accessories | M6 Prop Adapter 1. M6 Propeller Plate 1. Ø4-6 Adapter Ring 1. 3.5mm Bullet Connector3. Heat Shrinkable Tube3. M310mm 4 Motor Screws. M36mm 4 Prop Adapter Fixing Screws. M312mm 2 Propeller Screws. Sticker1 |
Specifications
| Parameter | 150KV | 200KV | 250KV | 300KV |
|---|---|---|---|---|
| RPM/V | 150KV | 200KV | 250KV | 300KV |
| No Load Current | 0.7A / 20V | 1.03A / 20V | 1.3A / 20V | 1.5A / 20V |
| Motor Weight | 234 g | 226 g | 232 g | 234 g |
| Maximum Current | 36.3 A | 47 A | 62.7 A | 59.2 A |
| Maximum Thrust | 8.5 kg | 9.6 kg | 10.4 kg | 7.4 kg |
| Recommended ESC | MAD AMPX 40A (5-14S) HV | MAD AMPX 60A (5-14S) | MAD AMPX 60A (5-14S) | XROTOR Pro 60A (4-6S) |
| Nominal Voltage | 12S lipo battery | 12S lipo battery | 8-12S lipo battery | 6S lipo battery |
| Internal Resistance | 120mΩ | 64mΩ | 41mΩ | 31mΩ |
| Product Boxed Weight | 404g (110 x 110 x 55 mm) | 396g (110 x 110 x 55 mm) | 402g (110 x 110 x 55 mm) | 404g (110 x 110 x 55 mm) |
| Maximum Power | 1732W | 2238W | 2992W | 1385W |
| Maximum Torque | 2.38 Nm | 2.3 Nm | 2.40 Nm | 2.04 Nm |
| Recommended Propellers | 21×6.3. 22×6.6. 22X7.0. 22.1×7.4. 24×7.2 | 19×5.7. 20×6.0. 21×6.3 | 18×6.1. 18.1×8.2. 21×6.3. 22×6.6. 22.1×7.4 | 21×6.3. 22×6.6. 22.1×7.4. 24×7.2 |
| UAV Take-off Weight | 6S-22”/ 9kg-Quadcopter. 13.5kg-Hexacopter. 18kg-Octocopter | 12S-20”/ 13kg-Quadcopter. 19.5kg-Hexacopter. 26kg-Octocopter | 12S-18”/ 15kg-Quadcopter. 22.5kg-Hexacopter. 30kg-Octocopter | 6S-22”/ 9kg-Quadcopter. 13.5kg-Hexacopter. 18kg-Octocopter |
| Single Rotor Take-off Weight | 3kg ~ 4kg | 3kg ~ 4kg | 4kg ~ 5kg | 2.5kg ~ 3.5kg |
MAD ANTIMATTER brand motors are defined as “not ordinary” in the field of multi-rotor motors. We are proud to launch the ANTIMATTER series motors (M6C06. M6C08. M6C10. M6C12) at the end of 2019. We spent a year designing and proving which drone motors are the most efficient with 21-24in props. This is the magic! MAD Components in Poland.
Antimatter M6C18 EEE is designed to carry a payload of 3.5-5kg. supports 6S-12S voltage.
