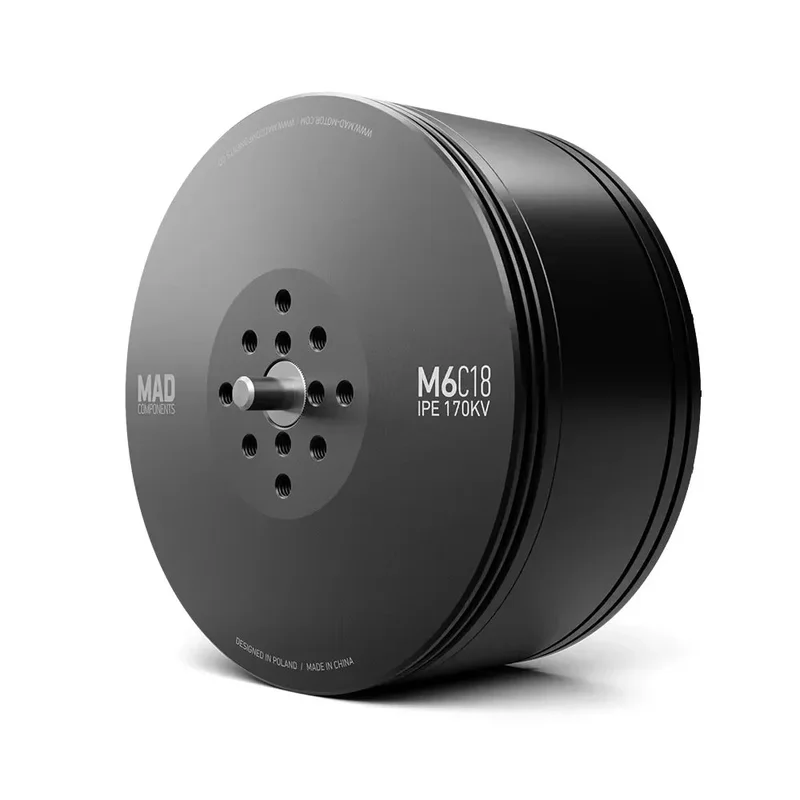

MAD M6C18 IPE V3 Drone Motor Overview
The MAD M6C18 IPE V3.0 is a versatile and durable drone motor designed for various UAV applications. It features an anticorrosive stator from Taiwan. high-temperature resistance (180°C varnished wire and 150°C magnet). and IP45 protection with centrifugal heat dissipation. The motor supports multiple propeller mounting options and maintains high rotor and motor balance. Available in 170 KV and 330 KV versions. it provides up to 3429W and 2161W of power respectively. with a maximum thrust of 13.3 kg and 9.4 kg. Suitable for quadcopters. hexacopters. and octocopters. it accommodates take-off weights up to 26 kg. Recommended ESCs include MAD AMPX 80A (5-14S) and AMPX 120A (5-14S).
MAD M6C18 IPE V3 Drone Motor Specifications
Motor Data
| Parameter | Value |
|---|---|
| Motor Model | MAD M6C18 IPE V3.0 |
| Number of Pole Pairs | 14 |
| Stator | TAIWAN / Anticorrosive |
| Varnished Wire Degree | 180°C |
| Motor Size | D: 72 × 41.4 mm |
| Magnet Degree | 150°C |
| Degree of Protection | IP45 |
| Cable Length | 150 mm 16# AWG (Black) silicone |
| Centrifugal Heat Dissipation | YES |
| Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D: 12 M3×4. D: 18 M3×4. D: 22 M3×4 |
| Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm |
| Motor Mounting Holes | D: 25 M3×4 |
| Bearing | EZO 696ZZ *2 |
| Disruptive Test | 500 V |
| Additional Accessories | M6 Prop Adapter *1. M6 Propeller Plate *1. Ø4-6 Adapter Ring *1. 3.5mm Bullet Connector *3. Heat Shrinkable Tube 3. M310mm 4 Motor Screws. M36mm 4 Prop Adapter Fixing Screws. M312mm 2 Propeller Screws. Sticker1 |
Specifications
| Parameter | 170 KV | 330 KV |
|---|---|---|
| RPM/V | 170 KV | 330 KV |
| Nominal Voltage | 12S lipo battery | 6S lipo battery |
| No Load Current | 1.6A / 30V | 3.4A / 20V |
| Internal Resistance | 48mΩ | 10.5mΩ |
| Motor Weight | 380 g | 390 g |
| Product Boxed Weight | 539g (110 x 110 x 55 mm) | 549g (110 x 110 x 55 mm) |
| Maximum Current | 73.1 A | 96.1 A |
| Maximum Power | 3429W | 2161W |
| Maximum Thrust | 13.3 kg | 9.4 kg |
| Maximum Torque | 4.28 Nm | 2.93 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | MAD AMPX 80A (5-14S). AMPX 120A (5-14S) |
| Recommended Propellers | 21×6.3. 22×6.6. 22.1×7.4. 22.2×7. 24×7.5 | 21×6.3. 22×6.6. 22.1×7.4 |
| UAV Take-off Weight | 6S-22”/ 13kg–Quadcopter 19.5kg–Hexacopter 26kg–Octocopter |
6S-22”/ 11kg–Quadcopter 16.5kg–Hexacopter 22kg–Octocopter |
| Single Rotor Take-off Weight | 4kg ~ 6kg | 4kg ~ 5kg |
