Description

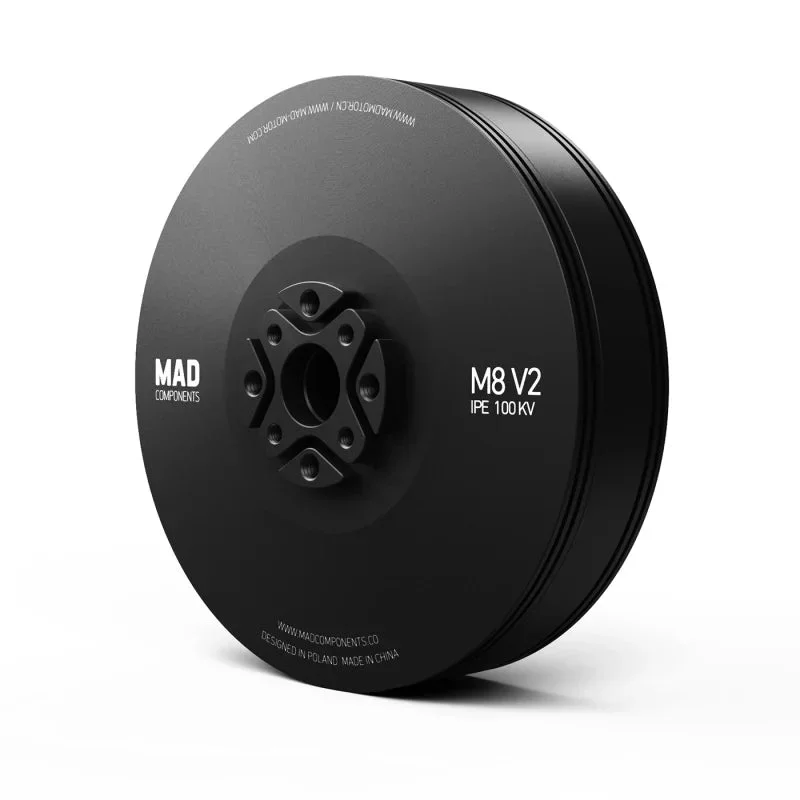

MAD M8C08 8108 IPE V2.0 SPECIFICATIONS
Brand Name: MAD COMPONENTS
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
Size: 150*150*65mm
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: RoHS
Remote Control Peripherals/Devices: drone brushless motor
Tool Supplies: Assembled class
Quantity: 1 pcs
Model Number: MAD M8C08 IPE
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Configuration: 24N28P
Motor Dimension: 87.1X26.2mm
KV: 85KV/100KV/150KV/ 180KV
Degree of Protection: IP35
Motor Weight: 280g 277g
Rated Voltage: 12S
Package: Color Box
Maxmium Power: 1174W
Maxmium Thrust: 7600g
Motor Data Tables
| Parameter | Value |
|---|---|
| Motor Model | MAD M8 IPE V2.0 |
| Number of pole pairs | 21 |
| Stator | Japan / Anticorrosive |
| Varnished wire Degree | 180°C |
| Motor Size | D:87.1 × 26.2 mm |
| Magnet Degree | 180°C |
| Degree of Protection | IP45 |
| Cable Length | 80mm (16# AWG wires) |
| Centrifugal Heat Dissipation | YES |
| Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4. D:23 M4×4 |
| Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 15 mm |
| Motor Mounting Holes | D:36 M4×4. D:48 M3×4 |
| Bearing | EZO 6802ZZ |
| Disruptive test | 500 V |
| Additional Accessories | Propeller Plate *1. Locating Pin 1. M410mm 4 (Motor Screws). M314mm *4 (Propeller Screws). 3.5mm Bullet Connector *3. Heat Shrinkable Tube 3. Sticker2. |
MAD M8C08 8108 IPE V2.0 85KV Specifications
| Parameter | Value |
|---|---|
| RPM/V | 85 KV |
| Nominal Voltage | 12S lipo battery |
| No Load Current | 0.64A/30V |
| Internal resistance | 207 mΩ |
| Motor Weight | 280 g |
| Product Boxed Weight | 530g (150 x 150 x 65 mm) |
| Maximum Current | 24.7 A |
| Maximum Power | 1174W |
| Maximum thrust | 7.6 kg |
| Maximum Torque | 2.659Nm |
| Recommended ESC | MAD AMPX 40A (5-14S) HV MAD AMPX 60A (5-14S) HV |
| Recommended Propellers | 28×8.4. 29×8.7. 30×10.0 |
| UAV take-off weight | 12S-30”/ 10kg–Quadcopter 15kg–Hexacopter 20kg–Octocopter |
| Single rotor take-off weight | 2kg ~ 3kg |
MAD M8C08 8108 IPE V2.0 100KV Specifications
| Parameter | Value |
|---|---|
| RPM/V | 100 KV |
| Nominal Voltage | 12S lipo battery |
| No Load Current | 0.99A/30V |
| Internal resistance | 147 mΩ |
| Motor Weight | 283 g |
| Product Boxed Weight | 533g (150 x 150 x 65 mm) |
| Maximum Current | 29 A |
| Maximum Power | 1360W |
| Maximum thrust | 8.0 kg |
| Maximum Torque | 2.553Nm |
| Recommended ESC | MAD AMPX 40A (5-14S) HV MAD AMPX 60A (5-14S) HV |
| Recommended Propellers | 27×8.1. 28×8.4 |
| UAV take-off weight | 12S-30”/ 12kg–Quadcopter 18kg–Hexacopter 24kg–Octocopter |
| Single rotor take-off weight | 2.5kg ~ 3kg |
M series motors are the flagship motors specially designed for large-scale multi-rotor.electric paraglider. large agricultural Used for aerial photography. mapping. electrical paragliding. agricultural spraying. surveying or anything in between where professional industry level propulsion systems are required.This type of motor is made with industrial grade components and undergo intense testing and quality control.Waterproof and dustproof.
M40 is designed to handle cargo transportation. emergency rescue and manned space programs. as well as heavy lift projects and industrial applications. M40 motors deliver reliable high-quality performance that will handle all flying tasks.
* IP35 dust&waterproof protection. unique and durable structure for better safety
* Unique motor core design. 24N28P multi-slot multi-poles
* Built in centrifugal air cooling system and efficient heat dissipation array design
* Designed for agricultural plant protection and professional grade application
* The housing is equipped with large positioning bearings to avoid resonance and gyro effect
