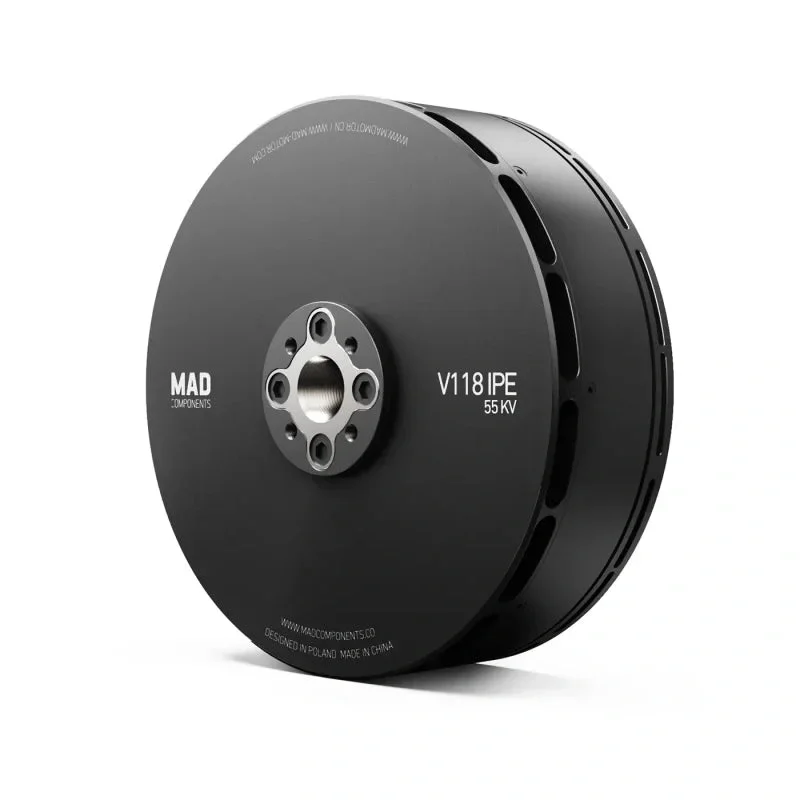

MAD V118 eVTOL UAV Drone Motor Summary
The MAD V118 IPE V2.0 is a high-performance drone motor built for demanding applications. It features an anticorrosive stator made in Taiwan and measures D:144.2 × 49 mm. The motor is protected with an IP35 rating and supports centrifugal heat dissipation. It has a robust construction with a shaft diameter of 20 mm and uses high-quality EZO 6904ZZ *2 bearings. The motor is designed to operate at a varnished wire degree of 220°C and a magnet degree of 180°C. It includes a cable length of 150 mm with extended enameled wires and has excellent rotor and motor balance specifications. The motor can handle a maximum current of 164.4 A and provides a maximum thrust of 48 kg. It operates efficiently with a 24S lipo battery. delivering a maximum power output of 15885W and a maximum torque of 24 Nm. The MAD V118 IPE V2.0 is suitable for UAVs with take-off weights up to 120kg for octocopters and 16kg for single rotors.
MAD V118 eVTOL UAV Drone Motor Specifications
Motor Data
|
|
| Parameter |
Details |
| Motor Model |
MAD V118 IPE V2.0 |
| Stator |
TAIWAN / Anticorrosive |
| Motor Size |
D:144.2 × 49 mm |
| Degree of Protection |
IP35 |
| Centrifugal Heat Dissipation |
YES |
| Propeller Mounting Holes |
D:30 M4×4 |
| Shaft Diameter |
IN: 20 mm |
| Bearing |
EZO 6904ZZ *2 |
| Number of pole pairs |
19 |
| Varnished wire Degree |
220°C |
| Magnet Degree |
180°C |
| Cable Length |
150 mm (extended Enameled wires) |
| Rotor Balance |
≤10 mg |
| Motor Balance |
≤20 mg |
| Motor Mounting Holes |
D:50 M6×4 |
| Disruptive test |
500 V |
| Additional Accessories |
Propeller Plate *1. Prop Adapter *1. 8.0mm Bullet Connector *3. Heat Shrinkable Tube *3. |
|
M6*25mm 4 Motor Screws. M412mm 4 Prop Adapter Screws. M420mm 4 Propeller Screws. Sticker2 |
Specifications
|
|
| Parameter |
55 KV |
| RPM/V |
55 KV |
| No Load Current |
1.52A / 20V |
| Motor Weight |
1420 g |
| Maximum Current |
164.4 A |
| Maximum thrust |
48 kg |
| Recommended ESC |
MAD AMPX 200A (12-24S) |
| Nominal Voltage |
24S lipo battery |
| Internal resistance |
43mΩ |
| Product Boxed Weight |
2350g (260 x 210 x 120 mm) |
| Maximum Power |
15885W |
| Maximum Torque |
24 Nm |
| Recommended Propellers |
40×13.1 |
| UAV take-off weight |
245-40” / 60kg–Quadcopter. |
|
90kg–Hexacopter. 120kg–Octocopter |
| Single rotor take-off weight |
13kg ~ 16kg |
MAD V118 eVTOL UAV Drone Motor Details
