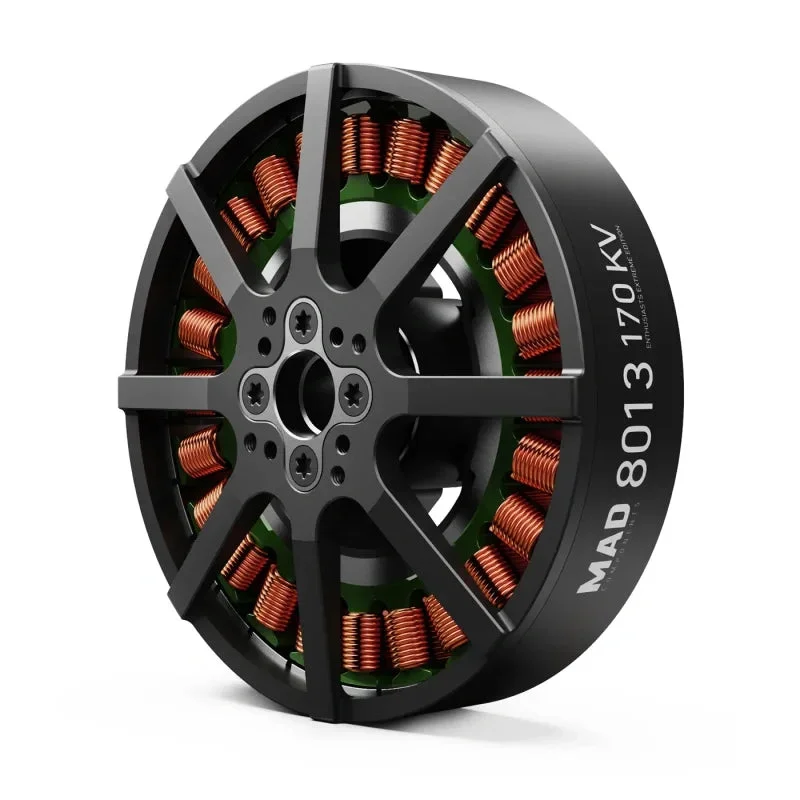

MAD V8013 EEE VTOL Drone Motor Summary
The MAD V8013 EEE V1.0 Brushless Motor is a robust and high-performance motor suitable for various professional drone applications. With KV options of 135. 150. and 170. it delivers a maximum thrust ranging from 14.5 kg to 16.3 kg. depending on the KV rating. This motor features a rain-protected design. independent centrifugal heat dissipation. and high-quality EZO bearings. ensuring stable performance under demanding conditions. Compatible with 12S lipo batteries. it supports different propeller sizes and has an internal resistance ranging from 29.5mΩ to 44mΩ. Ideal for quadcopters. hexacopters. and octocopters. the MAD V8013 EEE V1.0 balances weight. power. and thrust effectively. making it a top choice for professional drone operations.
MAD V8013 EEE VTOL Drone Motor SPECIFICATIONS
MAD V8013 EEE V1.0 Motor Data
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Motor Model | MAD V8013 EEE V1.0 | Number of pole pairs | 14 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.5 × 36.3 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤25 mg |
| Propeller Mounting Holes | D:20 M3×4. D:25 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | EZO 6901ZZ*2 | Disruptive test | 500 V |
| Additional Accessories | Propeller Plate 1. Locate pin 1. 4.0mm Bullet Connector3. Heat Shrinkable Tube3. M4*12mm 4 Motor Screws. M314mm 4 Propeller Screws. Sticker1 |
MAD V8013 EEE 135KV Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| RPM/V | 135KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 1.7A / 25V | Internal resistance | 44mΩ |
| Motor Weight | 518 g | Product Boxed Weight | 861g (150 x 150 x 65 mm) |
| Maximum Current | 74 A | Maximum Power | 3388W |
| Maximum thrust | 14.5 kg | Maximum Torque | 4.8 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | Recommended Propellers | 26×7.8. 27×8.1. 28×8.4 |
| UAV take-off weight | 12S-28″/21.8kg–Quadcopter. 32.8kg–Hexacopter. 43.8kg–Octocopter | Single rotor take-off weight | 4.5kg ~ 6.5kg |
MAD V8013 EEE 150KV Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| RPM/V | 150KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 2.35A / 30V | Internal resistance | 37mΩ |
| Motor Weight | 512 g | Product Boxed Weight | 855g (150 x 150 x 65 mm) |
| Maximum Current | 77.8 A | Maximum Power | 3569W |
| Maximum thrust | 15 kg | Maximum Torque | 4.67 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | Recommended Propellers | 26×7.8 |
| UAV take-off weight | 12S-26″/21.3kg–Quadcopter. 31.9kg–Hexacopter. 42.5kg–Octocopter | Single rotor take-off weight | 4.4kg ~ 6.4kg |
MAD V8013 EEE 170KV Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| RPM/V | 170KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 2.4A / 25V | Internal resistance | 29.5mΩ |
| Motor Weight | 508 g | Product Boxed Weight | 851g (150 x 150 x 65 mm) |
| Maximum Current | 104 A | Maximum Power | 4577W |
| Maximum thrust | 16.3 kg | Maximum Torque | 5.2 Nm |
| Recommended ESC | MAD AMPX 120A (5-14S) | Recommended Propellers | 26×7.8 |
| UAV take-off weight | 12S-26″/28.4kg–Quadcopter. 42.6kg–Hexacopter. 56.8kg–Octocopter | Single rotor take-off weight | 5.8kg ~ 8.2kg |
