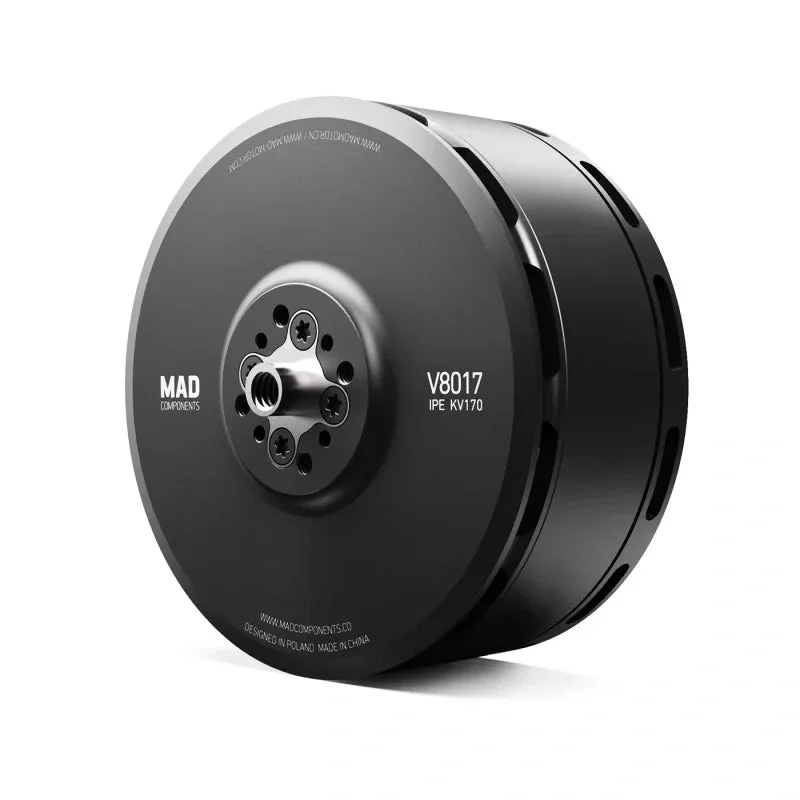

MAD V8017 IPE VTOL Drone Motor Overview
The MAD V8017 IPE V1.0 is engineered for demanding VTOL drone applications. featuring a durable anticorrosive stator and varnished wire capable of withstanding temperatures up to 180°C. The motor is designed for high efficiency and stability. with an IP35 protection rating. ensuring resistance to dust and water splashes.
With a high RPM/V rating of 170KV and a maximum power output of 6325W. this motor delivers impressive thrust up to 21.4 kg and a torque of 7.33 Nm. making it suitable for heavy-lift drones. The motor’s design includes precise rotor balance (≤5 mg) and centrifugal heat dissipation to maintain optimal performance under load.
The motor supports a variety of UAV configurations. including quadcopters. hexacopters. and octocopters. with significant take-off weights. It comes equipped with robust propeller mounting options and a durable bearing system. ensuring longevity and reliability in various operational environments. The recommended ESC for this motor is the MAD AMPX 200A. and it is compatible with large propellers (27×8.1. 28×8.4). further enhancing its versatility for different UAV designs and missions.
MAD V8017 IPE VTOL Drone Motor Specifications
Motor Data |
|||
| Motor Model | MAD V8017 IPE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.5 × 46.2 mm | Motor Balance | 150°C |
| Degree of Protection | IP35 | Cable Length | 1000 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4. D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | 6901ZZ*2 | Disruptive test | 500 V |
Specifications
| Parameter | Value |
|---|---|
| RPM/V | 170KV |
| Nominal Voltage | 12S lipo battery |
| No Load Current | 3.9A / 30V |
| Internal Resistance | 17.5mΩ |
| Motor Weight | 680 g |
| Product Boxed Weight | 1008g (150 x 150 x 65 mm) |
| Maximum Current | 132.4 A |
| Maximum Power | 6325W |
| Maximum Thrust | 21.4 kg |
| Maximum Torque | 7.33 Nm |
| Recommended ESC | MAD AMPX 200A (5-14S) |
| Recommended Propellers | 27×8.1. 28×8.4 |
| UAV Take-off Weight | 12S-28” / 32kg–Quadcopter 48kg–Hexacopter 64kg–Octocopter |
| Single Rotor Take-off Weight | 6kg ~ 9kg |
Products
V8107 motor is the most classical product among VTOL UAV motors. MAD V8017 IPE is one of the most efficient motors among them. and the most widely used motors for UAV of high-end aerial photography. exploration. Archaeology. Remote sensing surveying. Mapping etc. Endurance flight time varies from 30-120mins.
-
Designed for rigorous conditions
-
Over-sized durable bearings for increased life. durability
-
Water and dust resistant. IP35 degree of protection
-
Motor mounting holes standarization
