Description

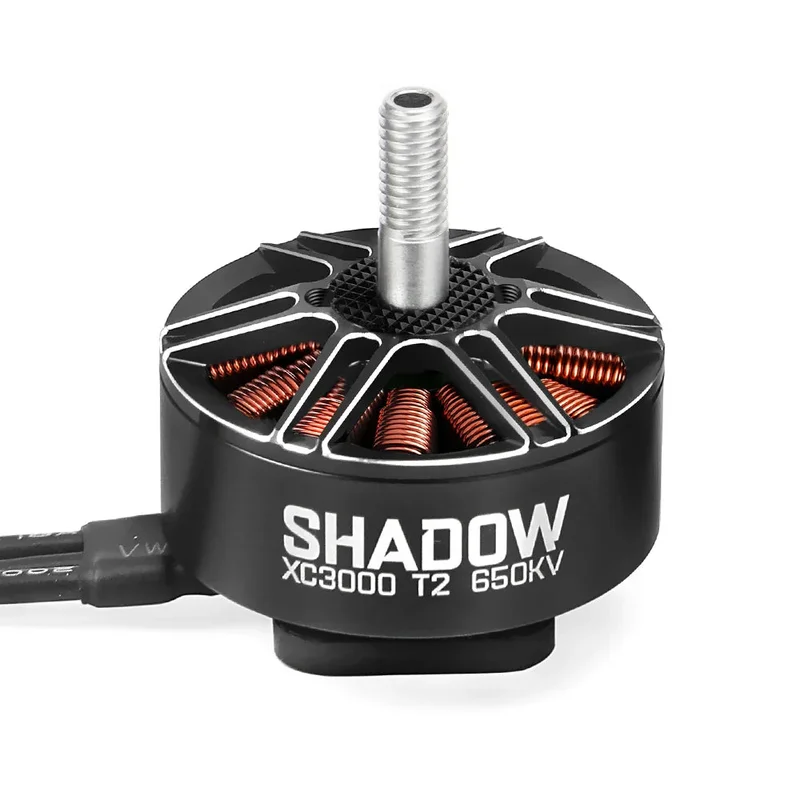

MAD XC3000 T2 Shadow FPV Motor Summary
The MAD Shadow XC3000 T2 V1.0 is a versatile and high-performance drone motor designed for a variety of UAV applications. available in three KV ratings (650 KV. 920 KV. and 1200 KV) to meet different power and efficiency requirements.
Manufactured with high-quality. anticorrosive materials from Japan. this motor ensures durability and reliability. with varnished wire capable of withstanding temperatures up to 180°C. It features rain protection and independent centrifugal heat dissipation. making it suitable for various environmental conditions.
-
650 KV Version:
- Nominal Voltage: 8-12S lipo battery
- Maximum Current: 28.2A
- Maximum Power: 1330W
- Maximum Thrust: 2.8 kg
- Recommended Propellers: HQ 7×4.5×3. HQ 8×4.5×3. HQ 9x5x3
-
920 KV Version:
- Nominal Voltage: 6-8S lipo battery
- Maximum Current: 39.6A
- Maximum Power: 1088W
- Maximum Thrust: 2.5 kg
- Recommended Propellers: HQ 7×4.5×3. GF 8040×3
-
1200 KV Version:
- Nominal Voltage: 6S lipo battery
- Maximum Current: 42A
- Maximum Power: 981W
- Maximum Thrust: 2.5 kg
- Recommended Propellers: GF 7035×3
Each version of the MAD Shadow XC3000 T2 V1.0 motor is suitable for quadcopters. hexacopters. and octocopters. with varying take-off weights and single rotor capacities. This motor provides a reliable and efficient solution for both commercial and industrial UAV applications. ensuring optimal performance and longevity.
MAD XC3000 T2 Shadow FPV Motor Specifications
Motor Data
| Parameter | Value |
|---|---|
| Motor Model | MAD Shadow XC3000 T2 V1.0 |
| Number of Pole Pairs | 7 |
| Stator | Japan / Anticorrosive |
| Varnished Wire Degree | 180°C |
| Motor Size | D: 35.7 × 40.55 mm |
| Magnet Degree | 150°C |
| Degree of Protection | Rain protection |
| Cable Length | 380 mm 18# Awg (Black) silicone |
| Centrifugal Heat Dissipation | Independent |
| Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | M5 Nut |
| Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm |
| Motor Mounting Holes | D: 19 M3×4 |
| Bearing | NSK 684ZZ *2 |
| Disruptive Test | 500 V |
| Additional Accessories | M3*8mm 4 Motor Screws. M5 Nut Propeller Screws. Sticker2 |
Specifications
| Parameter | 650 KV | 920 KV | 1200 KV |
|---|---|---|---|
| RPM/V | 650 KV | 920 KV | 1200 KV |
| Nominal Voltage | 8-12S lipo battery | 6-8S lipo battery | 6S lipo battery |
| No Load Current | 0.6A / 10V | 1.0A / 10V | 1.6A / 10V |
| Internal Resistance | 28.7mΩ | 57mΩ | 39mΩ |
| Motor Weight | 70 g | 70 g | 70 g |
| Product Boxed Weight | – | – | – |
| Maximum Current | 28.2 A | 39.6 A | 42 A |
| Maximum Power | 1330W | 1088W | 981W |
| Maximum Thrust | 2.8 kg | 2.5 kg | 2.5 kg |
| Maximum Torque | 0.4 Nm | 0.4 Nm | 0.3 Nm |
| Recommended ESC | BLHeli-32 50A 8S-12S 4IN1 ESC | MAD BL-32 60A 4IN1 6S 64MHZ ESC. BLHeli-32 50A 8S-12S 4IN1 ESC | MAD BL-32 60A 4IN1 6S 64MHZ ESC |
| Recommended Propellers | HQ 7×4.5×3. HQ 8×4.5×3. HQ 9x5x3 | HQ 7×4.5×3. GF 8040×3 | GF 7035×3 |
| UAV Take-off Weight | 8S-7”/ 3.2kg–Quadcopter 4.8kg–Hexacopter 6.4kg–Octocopter |
8S-7”/ 3.2kg–Quadcopter 4.8kg–Hexacopter 6.4kg–Octocopter |
6S-7”/ 3.2kg–Quadcopter 4.8kg–Hexacopter 6.4kg–Octocopter |
| Single Rotor Take-off Weight | 700g ~ 900g | 700g ~ 900g | 700g ~ 900g |
Products
MAD Shadow XC3000 Powerful Brushless RC Drone Outrunner FPV Motor for FPV Racing Drone
* Specially Designed for 6s voltage with
* The weight is extremely light for max thrust 2.8kg .
* Open design for maximum heat dissipation.
* Specially designed for X8 Professional Cinematic FPV drones with 7.8.9inch prop..
* Can be used to build the fastest. most durable and stable UAV and high-speed photographic UAV.
* MAD Shadow XC3000 6S FPV Racing Motors only weigh 70g with 2 durable bearing. Maximun thrust can reach 2.8kg
