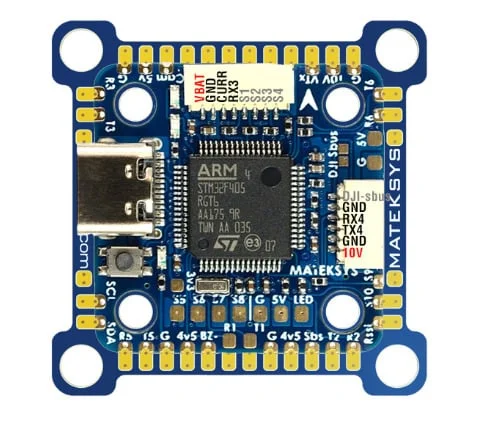

Matek F405 miniTE Flight Controller
Meet the MATEKSYS F405-MiniTE, an incredibly versatile and powerful flight controller that packs the capabilities of a full-sized board into a compact 20x20mm form factor. Engineered for advanced FPV drone and RC projects, this FC is a true multi-purpose brain, perfect for everything from standard quadcopters to complex octocopters, VTOLs, and sophisticated fixed-wing aircraft running ArduPilot or INAV.
Unmatched Versatility for Complex Builds
The F405-MiniTE stands out with its massive number of inputs and outputs. It features an incredible 12 PWM outputs (8 of which support bi-directional DShot), allowing you to control up to 8 motors for an X8 cinelifter or a full suite of servos on an FPV wing. With 6 available hardware UARTs, you have plenty of ports to connect all your essential drone parts, including your receiver, GPS, digital VTX, and other peripherals.
Powerful & Feature-Packed Core
Built around a reliable STM32F405 MCU and a modern, high-precision ICM42605 gyro, this flight controller provides a stable and responsive flight experience. It comes loaded with features that professional builders demand, including an onboard SPL06 barometer for altitude sensing, 16MB of blackbox flash for easy tuning, and dual BECs (5V and 10V) to reliably power all your components.
Ready for Digital HD FPV
This flight controller is designed for seamless integration with modern digital FPV systems. It features plug-and-play compatibility with the DJI Air Unit and has a dedicated, robust 10V @ 1.4A BEC to provide clean, stable power to your digital video transmitter, ensuring a clear and reliable HD video feed.
Specifications
- MCU: STM32F405RGT6
- IMU: ICM42605
- Barometer: SPL06-001
- OSD: AT7456E
- Blackbox: 16MB Flash Memory
- Input Voltage: 6-30V (2-6S LiPo)
- PWM Outputs: 12 (8 with DShot)
- UARTs: 6
- BECs: 5V 1.7A & 10V 1.4A
- Mounting: 20x20mm (M2/M3) with included 30.5×30.5mm conversion plate
- Weight: 5g
What’s in the Box?
- 1x MATEKSYS F405-MiniTE Flight Controller
- 1x 20mm to 30.5mm Conversion Plate
- 1x Set of Mounting Grommets
- 1x Set of Cables for 4-in-1 ESC and DJI Air Unit
