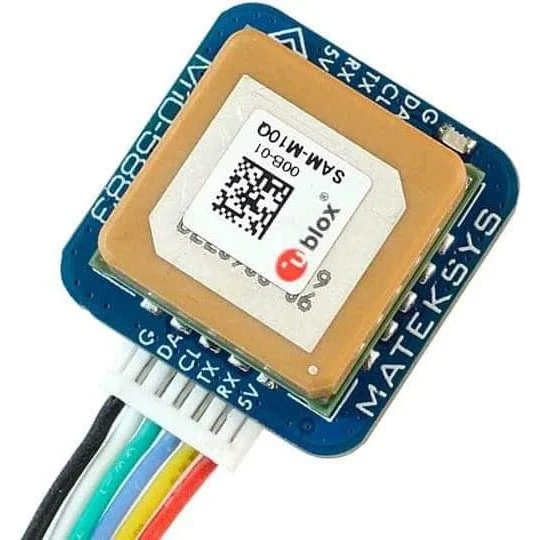

Matek M10Q-5883 GNSS & Compass

Description

The MATEKSYS M10Q-5883 supports GNSS (GPS, GLONASS, Galileo, and BeiDou) and thus offers excellent RF sensitivity. The SAM-M10Q uses a multi-constellation GNSS module powered by u-blox SAM-M10Q-00B. The SAM-M10Q features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. This feature will help you pick up the best signals. But also enhance the dynamic position accuracy with small antennas or in non-line-of-sight scenarios. The high number of visible satellites enables the receiver to select the best signals. Hence this maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. The high-gain 15x15mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.

Check out all our GPS modules, and our full line of Matek products!

Features

• M10-5883 uses multi-constellation GNSS powered by u-blox SAM-M10Q-00B
• Ultra-low-power GNSS antenna module for easiest integration
• Simple design-in with no RF expertise required
• Less than 38 mW power consumption without compromising GNSS performance
• Maximum position availability with 4 concurrent GNSS reception
• Advanced spoofing and jamming detection
• Pin-compatible with previous SAM-M8Q

Specifications

• GNSS  u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo, and BeiDou)
• Magnetic Compass QMC5883L
• Patch antenna 15x15x4mm
• Input voltage range: 4~9V (5V pad/pin)
• Power consumption: 13mA
• UART baudrate: 9600 default
• Operating Temperatures: -20~80 °C
• UART(TX, RX) interface for GNSS SAM-M10Q-00B
• I2C(DA, CL) interface for Compass QMC5883L
• JST-GH-4P connector (SM04B-GHS-TB). 1.27mm pitch
• GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
• Protocol: UBX(u-blox) 5Hz/?p=5712#tab-id-6
• u-center Windows

Important Notes

• Compass Alignment(flat mounting): Tilting the magnetometer is strongly discouraged !
• INAV/BetaFLight: compass Arrow forward, set CW 270° Flip when flight controller arrow is facing forward.
• INAV/BetaFLight: compass Arrow backward, set CW 90° Flip when flight controller arrow is facing forward.
• Ardupilot/Mission Planner: Rotation None.
• Make sure to have compass/magnetometer 10cm away from power lines/ESC/motors/iron based material

Includes

• 1x Matek M10Q-5883 GNSS & Compass
