Description

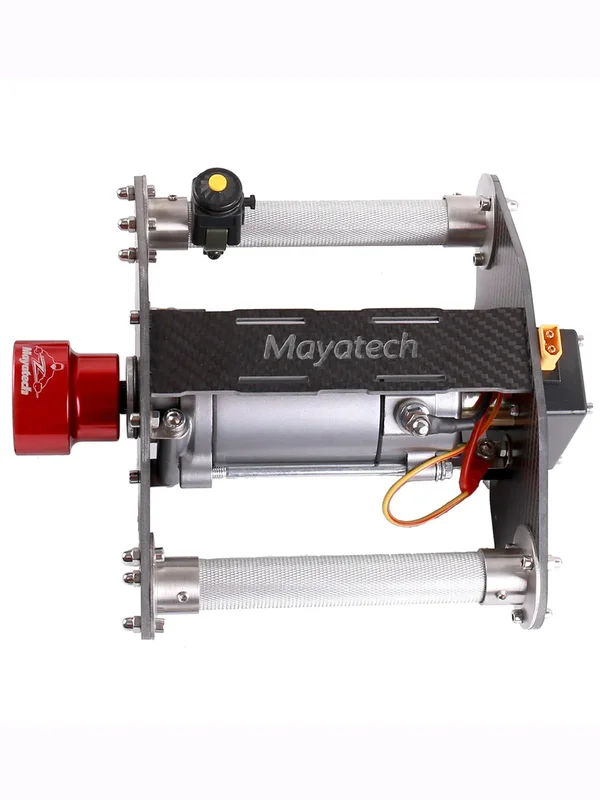

Mayatech TOC250 Terminator TOC Starter SPECIFICATIONS
Brand Name: Mayatech
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Starter Boxes
Size: 29*25*14cm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Starter
Tool Supplies: Assembled class
Quantity: 1 pcs
Model Number: TOC250
patent number: ZL202123445559X
Mayatech TOC250 Details
Application scenarios
Play model for more than 10 years .Many starters are used and broken。Why is the starter not durable？Compared some starter .The main reasons are these：
1.All starters are conventional switches .Contactors are not used.The resistance at the switch is relatively large.The voltage loss is relatively large.It is also prone to fever.
2. The brushes of all starters are too small.When the starting resistance is large. it is easy to burn the brush and brush holder.
3. The conventional starter does not have a reducer. and the output torque is too small.It is easy to twist and damage when starting .under these circumstances .The motor is almost in a short circuit state .Coils and brushes burn easily.
But now .We found a solution：Learn from the relevant technologies of 250cc parallel bar four stroke motorcycle engine starter motor .The process of rotor coil is optimized .Use super magnetic steel .The motor efficiency is improved without increasing its power consumption The power is higher. A 5.6:1 planetary reducer is built in the front section of the motor.
Note：The starter adopts reduction gear design to increase torque (non direct drive).It is normal that the starting head will shake slightly during rotation. which is not a quality problem.
The rubber head of the fixed wing version is different from that of the helicopter version. and there is one less starting rod.The new terminator starter uses XT60 plug as power output and directly uses 3S battery for power supply. The battery is not included in the delivery. You need to bring it yourself.
Product features
1.Hold with both hands. convenient and labor-saving
The aluminum alloy metal tube is used as the handrail. held by both hands. and the fixed wing is convenient and labor-saving.
2. Multi purpose and more convenient
It can be used as a gasoline fixed wing. If the matching rubber head and starting rod are purchased separately. it can be upgraded as a helicopter starter
3. Fixed wing version
It is suitable for 45-90 methanol fixed wing. more than 2.25 inch propeller cover. 10cc-80cc gasoline fixed wing and more than 2.25 inch propeller cover
Special starter for 80cc-250cc UAV and oil powered UAV with paddle cover such as Dabai.
4. Helicopter version
Equipped with 6mm hexagonal starting rod. it can start 15. 30. 50 and 90 series gasoline or methanol helicopters. and basically all helicopters on the market.
5. Sensitive touch. high current. more stable
High current switch. greater current resistance. more stability. case position in line with ergonomics. easy to press and take
6. The design is reasonable and easy to use
Equipped with battery mounting fixing plate and battery strap. it is more convenient to use
7. Bite technology to prevent slipping
The upgraded starter adopts large aluminum head with teeth. which has strong bite force and is not easy to slide teeth
8. Convenient power supply and flexible use
The split power cord design is convenient and flexible. It can directly connect the XT60 interface battery or the battery. The power cord is 1.65m long and easy to use. It adopts a powerful power chuck with less resistance
9.More power and less energy consumption
The process of rotor coil is optimized and strong magnetic steel is adopted to improve the motor efficiency without increasing its power consumption
10.Multi scene usage
Considering the actual situation of field use. stainless steel fasteners are used for assembly without rust
11.High strength carbon fiber material
The bracket is carved with carbon fiber version CNC. with high strength and light weight
12.Rubber head silicone material
The fixed wing rubber head is made of silica gel and adopts conical design to increase the contact surface with the propeller cover without slipping
Fixed wing Usage
1. Hold with both hands. The rubber head of the fixed wing version is different from that of the helicopter version. Next. there is a starting lever.One less starting lever
2.Fixed wing version：Confirm that the starter is inserted into the 3S battery and fixed. hold it flat with both hands. and align the rubber head with the engine propeller cover (in the early stage. confirm that the engine CDI is involved in the power supply. the oil circuit is unblocked. the propeller and engine are safely fixed. and confirm whether the engine oil needle is preset by the manufacturer) .Start the inching switch for 2-3 seconds each time. block the exhaust pipe (do not press it uniformly). let the oil enter the engine. hear the engine oil deflagration. and finally extend the continuous starting time to 5 seconds until the engine is started. and adjust the engine oil needle according to the engine state.
Helicopter usage
1. Hold with both hands. The rubber head of the fixed wing version is different from that of the helicopter version. Next. there is a starting lever.One more actuating lever
2. Helicopter Version (also purchase the matching rubber head and starting rod): confirm that the starter is inserted into the 3S battery and fixed. and align both hands vertically with the starting rod at the helicopter engine starting port (in the early stage. confirm that the engine CDI is involved in the power supply. the oil circuit is unblocked. the propeller and engine are safely fixed. and confirm whether the engine oil needle is preset by the manufacturer). The inching switch is started for 2-3 seconds each time. Block the exhaust pipe (do not press start uniformly). let the oil enter the engine. hear the engine oil deflagration. and finally continue to strengthen and extend the starting time to 5 seconds until the engine is started. and adjust the engine oil needle according to the engine state.
Technical parameter
Output voltage 12v-16.8v 9ah above battery power supply
Maximum speed The no-load speed is 1000. and the on-load speed is greater than 650
Maximum torque Torque 120kg / cm
Product application Suitable for 80cc-250cc gasoline helicopter engine. such as af25b (need to support 5mm hexagonal starter rod)
Packing size 315mm*245mm*120mm
weight 3016g
note:The duration of single power on shall be ≤ 3 seconds. and the number of consecutive times shall be ≤ 5 times. If it exceeds the requirements. please wait for cooling before using
Mayatech TOC250 starter kit for fixed-wing gasoline UAVs. includes parts list: main module (X1). XTBO battery clamp (I65cn) and strap (2×5.6g). packing box (X1).
Mayatech TOC250 Terminator starter suitable for fixed-wing gasoline UAVs. with multiple versions and large current capacity. Includes main module. starting lever. XTBO battery clamp. battery strap. and packing box. Weights: 2660g (main module). 83g (starting lever). 65cm (battery clamp). 5.6g (packing box).
