Description

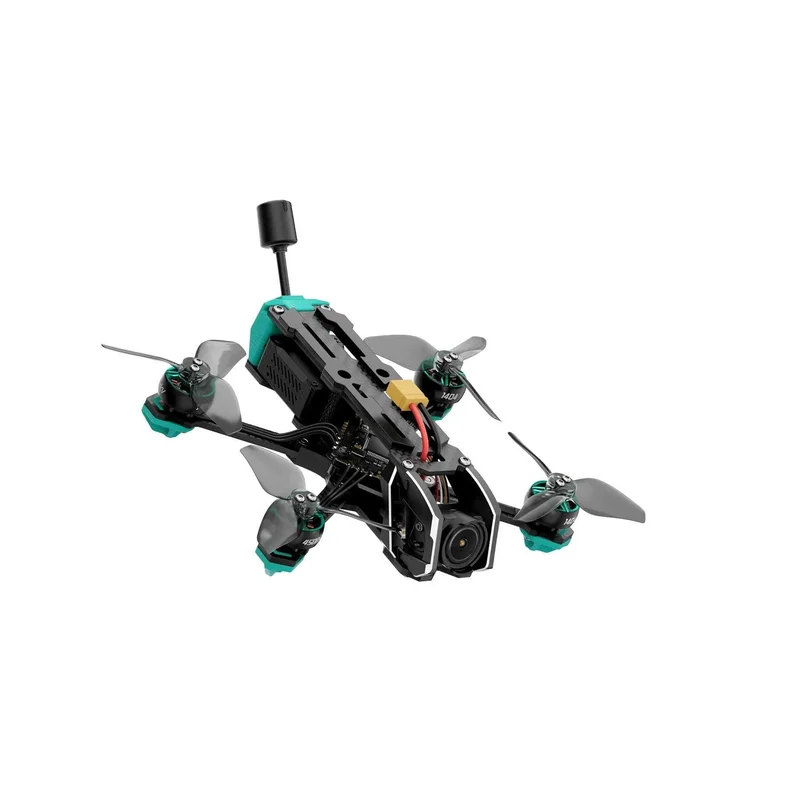

Help build the future of drone design with the NewBeeDrone LionBee 3″ Long Range DIY Developer Kit. The LionBee reimagines 1S FPV drone design with an innovative flight controller integrated directly into the battery structure, improving durability, efficiency, and vibration resistance. Built with an advanced AT32F435 processor, a next-generation ESC, and an 800mW Smart-Max VTX with adaptive output, it offers reliable performance for demanding flights. Designed as a modular developer platform, the LionBee is ideal for pilots and innovators looking to experiment and push the boundaries of micro long-range FPV.
NOTE: This is a DIY kit. Assembly is required.
Check out our other pre-built quads, and the rest of our NewBeeDrone products.
Features
- Structural-integrated FC + 18650 battery chamber architecture
- World’s first 1S 32-bit ESC MCU
- AT32F435 288MHz high-performance FC processor
- 800mW Smart-Max VTX with adaptive thermal control
- Built-in SPI ExpressLRS receiver with customized firmware support
- Full reverse-polarity protection (battery inserted backward will not cause damage)
- Modular, replaceable 18650 battery chamber with factory-soldered brass terminals

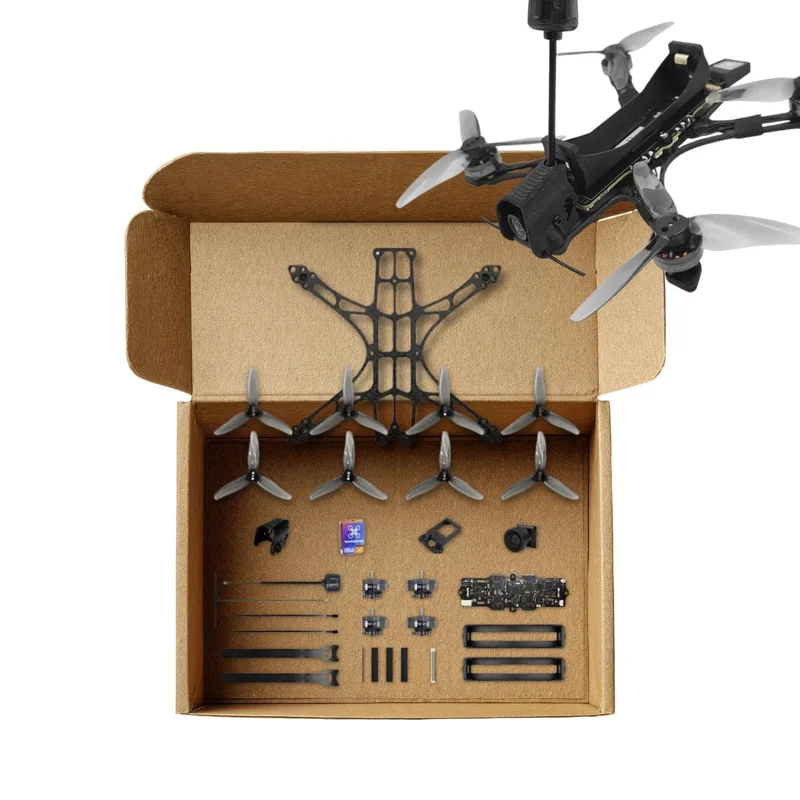

- Developer Kit system designed for experimentation and innovation
Specifications
- MCU: AT32F435
- Gyro: BMI270
- Barometer: SPL06
- OSD: Built-in OSD
- VTX: 25mW–800mW Smart-Max Temperature Controlled PA
- Receiver: Built-in SPI ELRS
- ESC: 4-in-1 AM32 32-bit 5A
- Input Voltage: 1S Li-ion / LiPo
- Protection: Full reverse-polarity protection
- Mounting Pattern: 25.5 × 82 mm
- GPS
