Description

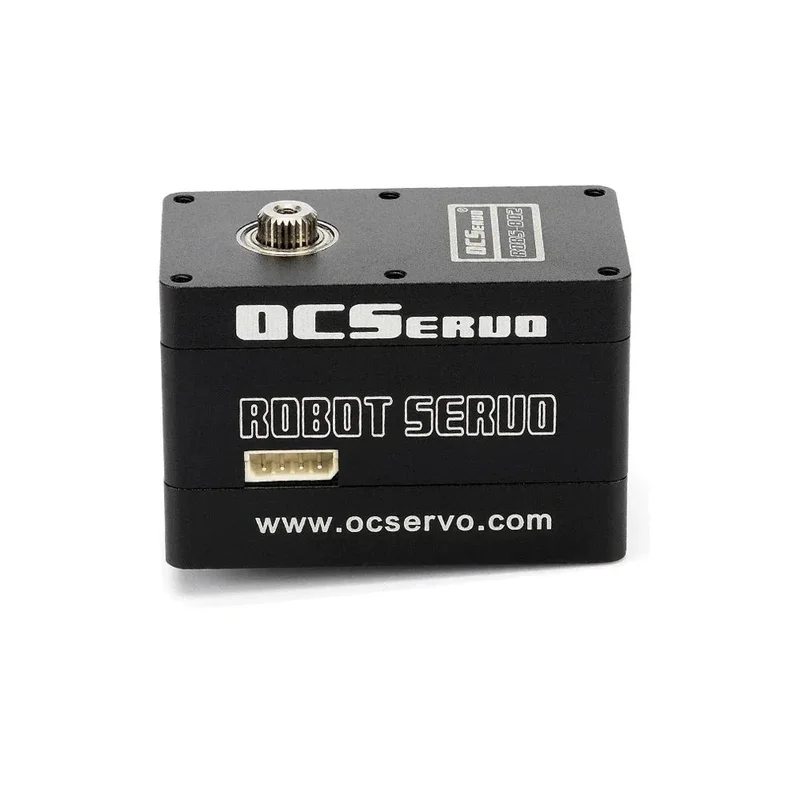

OCServo ROBS-301 – 29kg.cm Servo SPECIFICATIONS
Brand Name: OCSERVO
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Servos
Model Number: ROBS-301
Follow the shop for more offersBrand:OCSERVOItem No: ROBS-301Specification:
|
Operating Voltage |
7.2V |
12.0V |
– |
|
Stall Torque(kg-cm) |
24 |
29 |
– |
|
Stall Torque(oz-in) |
333 |
402 |
– |
|
Speed (RPM) |
50 |
55 |
– |
|
Size (mm) |
52×28×34.5 |
||
|
Weight (g) |
72 g |
||
|
Resolution |
0.15° |
||
|
Operating Angle |
360°or Continuous turn |
||
|
Standby Current |
15mA |
||
|
Stall Current |
1700 mA@12V |
||
|
Operating Temp |
-10°C~80°C |
||
|
Communication |
OCS |
||
|
Protocol Type |
Full Duplex Asynchronous serial Communication |
||
|
Bus Interface |
485 |
||
|
Control System |
Bus Packet Communication |
||
|
Module Limit |
254 (0-253) |
||
|
Com Speed |
38400bps-1Mbps |
||
|
Position FB |
Yes |
||
|
Temp FB |
Yes |
||
|
Load FB |
Yes |
||
|
Speed FB |
Yes |
||
|
Input Voltage FB |
Yes |
||
|
Current Measurement |
No |
||
|
Material |
Metal Gear&Metal Body |
||
|
Motor |
Coreless Motor |
||
|
Manual Download |
ROBS-301 Manual(PDF) |
||
|
The Drawings |
ROBS-301 Drawing(PDF) |
