 Hobbywing SkyWalker 2312 2316 2320 Brushless Motor SPECIFICATIONS

Brand Name: hobbywing

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Motor

Quantity: 1 pcs

Model Number: 2312 2316 2320

2312:

Skywalker 2312 SL 980KV

Recommended Battery：3-4S LIPO

KV Rating：980KV

No-load Current：1.3A/14.8V

Resistance：75.6mΩ

Number of slot poles：12N14P

Maximum continuous current：24A/180s

Maximum continuous power：340W/10min

Motor Size：Φ28.8 *46mm

Motor Weight：65g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 30A

propeller：

3S：10x6E .11×5.5E

4S：8x6E .9×4.5E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

Skywalker 2312 SL 1250KV

Recommended Battery：3-4S LIPO

KV Rating：1250KV

No-load Current：1.5A/14.8V

Resistance：51.6mΩ

Number of slot poles：12N14P

Maximum continuous current：38A/35s

Maximum continuous power：563W/35s

Motor Size：Φ28.8 *46mm

Motor Weight：65g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 30A-40A

propeller：

3S：8x6E .9×4.5E.10X6E

4S：8x4E .8x6E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

Skywalker 2312 SL 1400KV

Recommended Battery：3-4S LIPO

KV Rating：1400KV

No-load Current：1.8A/14.8V

Resistance：39.9mΩ

Number of slot poles：12N14P

Maximum continuous current：37A/65s

Maximum continuous power：550W/65s

Motor Size：Φ28.8 *46mm

Motor Weight：65g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 30A-40A

propeller：

3S：7x6E .8x6E

4S：7x5E .8x4E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

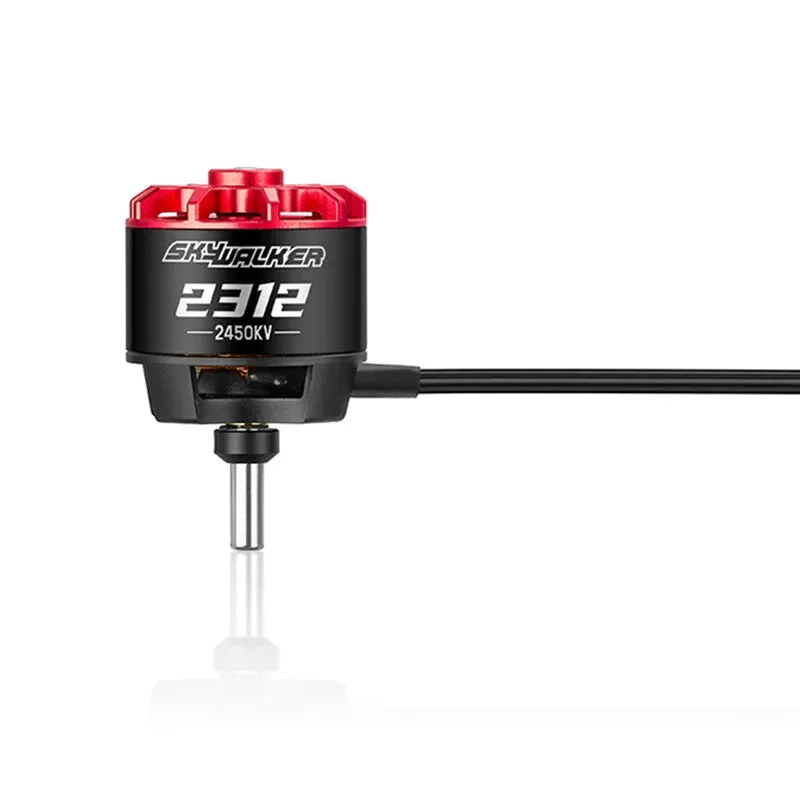

Skywalker 2312 SL 2450KV

Recommended Battery：3S LIPO

KV Rating：2450KV

No-load Current：4.1A/11.1V

Resistance：19.3mΩ

Number of slot poles：12N14P

Maximum continuous current：47A/10min

Maximum continuous power：520W/10min

Motor Size：Φ28.8 *46mm

Motor Weight：65g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 20A-50A

propeller：

3S：5x3E .6x6E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

2316

Skywalker 2316 SL 980KV

Recommended Battery：3-4S LIPO

KV Rating： 980KV

No-load Current：1.5A/14.8V

Resistance：53.6mΩ

Number of slot poles：12N14P

Maximum continuous current：31A/240s

Maximum continuous power：455W/240s

Motor Size：Φ28.8 *50mm

Motor Weight：79g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 30A-40A

propeller：

3S：10x6E .11×5.5E

4S：9×4.5E .9x6E .10x5E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

Skywalker 2316 SL 1400KV

Recommended Battery：3-4S LIPO

KV Rating： 1400KV

No-load Current：2.3A/14.8V

Resistance：28.4mΩ

Number of slot poles：12N14P

Maximum continuous current：42A/135s

Maximum continuous power：618W/135s

Motor Size：Φ28.8 *50mm

Motor Weight：79g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 40A-50A

propeller：

3S：7x6E .8x6E

4S：7x5E .8x4E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

2320

Skywalker 2320 SL 860KV

Recommended Battery：3-4S LIPO

KV Rating： 860KV

No-load Current：1.5A/14.8V

Resistance：48.4mΩ

Number of slot poles：12N14P

Maximum continuous current：36A/90s

Maximum continuous power：540W/90s

Motor Size：Φ28.8 *54mm

Motor Weight：93g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 30A-40A

propeller：

3S：12x6E .13×6.5E

4S：10x5E .10x6E .11×5.5E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

Skywalker 2320 SL 1100KV

Recommended Battery：3-4S LIPO

KV Rating： 1100KV

No-load Current：1.8A/14.8V

Resistance：33mΩ

Number of slot poles：12N14P

Maximum continuous current：41A/180s

Maximum continuous power：580W/194s

Motor Size：Φ28.8 *54mm

Motor Weight：92g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 40A-50A

propeller：

3S：10x5E .10x6E .11×5.5E

4S：8x6E .9×4.5E

Clip mounting hole thread：Φ12mm-3*M2.5

Skywalker 2320 SL 1250KV

Recommended Battery：3-4S LIPO

KV Rating： 1250KV

No-load Current：2.3A/14.8V

Resistance：28.9mΩ

Number of slot poles：12N14P

Maximum continuous current：50A/94s

Maximum continuous power：740W/94s

Motor Size：Φ28.8 *54mm

Motor Weight：92g

Shaft Diameter：4mm

Bearing model：684ZZ（D9*d4*4）

Phase cable：18AWG

Cable length：100mm

Recommend ESC：Skywalker-V2 40A-50A

propeller：

3S：9×4.5E .9x6E .10x6E

4S：8x4E .9×4.5E

Clip mounting hole thread：Φ12mm-3*M2.5

Base thread：Φ16mm-2*M3/Φ19mm-2*M3

Sky Walkor 2312 #8oKv brand of motor 2212 98okV High performancee PouttW) 350.00 The newly designed 2312. 2316. and 2320 fixed-wing motors have increased output poweroo

The unique hollow design improves airflow. enhancing the motor’s cooling capacity and efficiency. Additionally. the self-dissipating top cover structure helps to prolong the motor’s lifespan.

The Original Hobbywing SkyWalker 2312/2316/2320 brushless motor features advanced bearing technology and precision CNC machining. resulting in an exceptionally low rotor dynamic balance that minimizes motor vibration and ensures smoother operation. Additionally. JIC ET 2320 IOOKV is a cutting-edge dynamic balancing technology that further enhances the motor’s performance.

The copper pad and retainer spring on the core of the rotor shaft provide a secure fit. while the bushing and set screw help lock the shaft in place. enhancing the motor’s reliability.

This product features top-quality components. including enameled wire from JNEHIZOO. silicon steel sheets. and a unique magnetic steel design that provides maximum torque. The thicker material (0.2mm) is softer and easier to work with than traditional materials. making it ideal for routing.
