Description
SPECIFICATIONS
Upgrade Parts/Accessories: other
Tool Supplies: other
Remote Control Peripherals/Devices: other
Recommend Age: 12+y
RC Parts & Accs: other
Origin: Mainland China
Model Number: AT9S PRO
Material: other
Four-wheel Drive Attributes: other
For Vehicle Type: Helicopters
Brand Name: abay
Brand Name: RadioLink
Please note: Mode1 means right hand throttle. Mode2 means left hand throttle
SPECIFICATIONS:
Brand Name: Radiolink

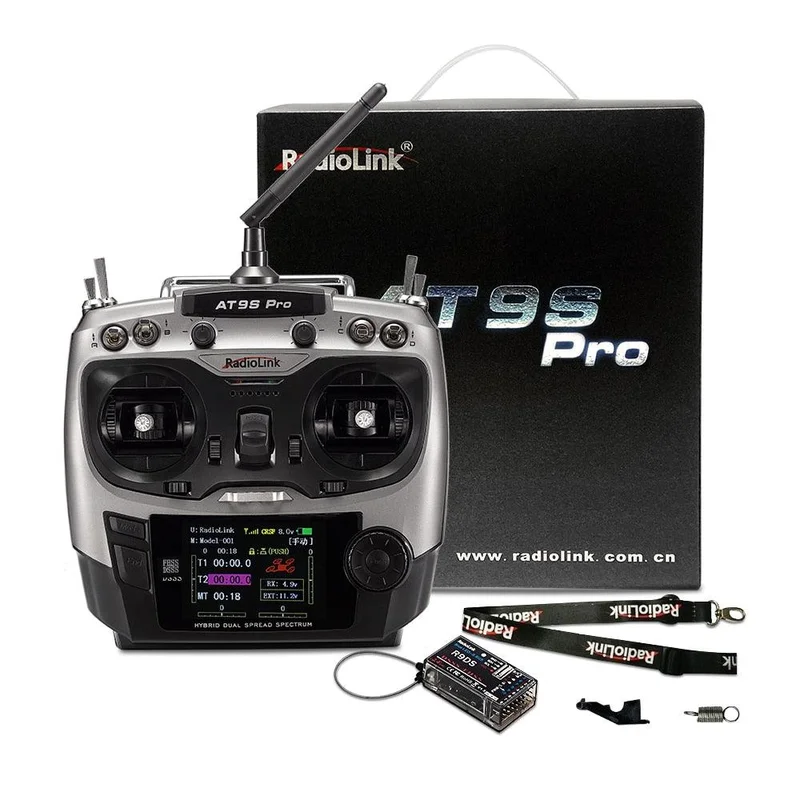

Item Name: AT9S Pro Transmitter
Package Weight: 1200g
Mode: Mode2
Color: Gold. Gray
| AT9S Pro Transmitter | |
| Weight: | 880g |
| Size: | 183*100*193 mm |
| Frequencies Band: | 2.4Ghz ISM band (2400MHz-2483.5MHz) |
| Bandwidth: | 5.0MHz |
| ACPR: | >38dbm |
| Modulation Mode: | QPSK |
| Spread Spectrum Mode: | DSSS&FHSS/CRSF |
| Transmission Power: | DSSS&FHSS<100mW (20dbm) CRSF 10mW/25mW/100mW/500mW/1W/2W (Optional) |
| Operating Voltage: | 7.4~18.0V |
| Operating Current: | DSSS&FHSS<90mA@12V CRSF Depends on the transmission power selected |
| Channel Qty: | 10/12 (CH5 through CH10/12CH can be programmed) |
| Control range: | DSSS&FHSS-4KM in the air (Maximum range is tested in an unobstructed area free of interference) CRSF-Depends on the RX and TX from BLACKSHEEP |
| Signal Output: | PWM/SBUS/PPM/CRSF |
| Compatible receivers: | 12CH-R12DSM. R12DS 10CH-R9DS (Std). R6DS. R6DSM CRSF: RX from BLACKSHEEP |
| Simulator Mode: | the transmitters RF circuit turns off to save battery power |
| Display: | 2.8-inch 16-bit true color screen. resolution 240 * 320 pixels |
| Adaptable Models: | Rotary Wing. Fixed wing. Multicopter. Car. Boat. Robot |
AT9S PRO Features:-Radiolink 2019 AT9S Pro Version TX 10/12CH RC Radio Controller Support T8S Crossfire CRSF Protocols with R12DSM Mini Receiver RX 2.4G for Racing Drone Quadcopter Mode 1/2.-Excellent Anti-interference: The rc transmitter with DSSS&FHSS working synchronously to keep the excellent anti-interference performance. only 3ms for10 channels response.-CRSF Protocol Supported: On the basis of the RadioLink unique communication technology of DSSS and FHSS. CRSF protocol from BLACKSHEEP is added. Compatible with TBS Crossfire TX.-Compatible with SBUS. PPM. PWM and CRSF: With DSSS&FHSS protocol. SBUS. PPM and PWM can operate simultaneously for seamless user control. With CRSF protocol. TBS Crossfire TX is needed to bind to BLACKSHEEP receiver.-Real-time Information: When with flight module PRM-03.model voltage. speed. climb. throttle. longitude. latitude. altitude. GPS. RSSI. flight mode. yaw. roll. Pitch and distance are displayed. on the LCD screen display.-Adapts to All Types of Aircraft: Easy to understand user software makes quick work of changing aircraft types. Rotary Wing. Fixed Wing. Multicopter. Car. Boat. Robot. Transmitter automatically switches layout depending on selected mode.-USB Based Upgrades: Transmitter is easily updated with the latest firmware by USB cable to connect PC.-Voltage Protection System: RadioLink’s voltage protection software ensures vital components are protected from a reverse polarity connection.-Simple Setting Humanized: Menu is designed applicable to both beginners and skilled person. only need takes 1 second to bind.-Support for Universal Battery: JST connector supports multiple type batteries: 8 pcs AA or 2s-4s LiPo battery. (Not included batteries) A 3s 1800mAh liPo battery can work more than 12 hours.
:
Brand Name:RadioLink
Item NO.: R9DS
Frequency: 2.4GHz
Channel: 9CH
Color: Black
Usage: Used for RadioLink AT9 AT10 remote controller
Features:
– Upgraded version. antenna is improved. signal will be more stable
– Dual-way communication function
– Could send back flight data
– High sensitivity. distance up to 1.1km
– DSSS technology. reliable
– Supported S-BUS and high-voltage steering engine
doLink At9s Pro T9s RadioLink Pro U;KAld it 74ose% Hetocl Ci Tm Dorio 0:00:00. 82 Www radiolink_ com; cn
JioLink At9s Pro 79S RadoLink Pro Saaa U:Radiain Tao0 Watecal C01 00.10 0.8uu0 www.radiolink com;Cn 0O:00. 38 DOCOC 48 00:18 Hala Muroiped Oideu Horid Dua S04lo elgtrur oideu qunoiped R9Ds
Shopping Process: Browse. Add to Cart. Pay with Goods. Escrow Payment. Confirm Order. Give Signature. Sign for Dispatch. and Start Parcel Shipment.
Please note that immediate checkout after auction close may be required. If you’re unable to do so. please wait for a few minutes and try again. In case any unforeseen issues arise (such as delays in shipping exceeding 48 hours). we will promptly notify you.
Our Service: On-time Delivery – We ensure your product arrives promptly. If there’s an issue with delivery. we offer a full refund. Additionally. our Longer Protection policy provides 15 extra days of coverage after order completion. Returns: You can return any product that’s in perfect condition. Guaranteed Quality: We stand behind the quality of our products. and if it’s not up to par. we’ll provide a full refund.
