Description
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed, and ultra-long range bringing you brand new experience with your hobby.

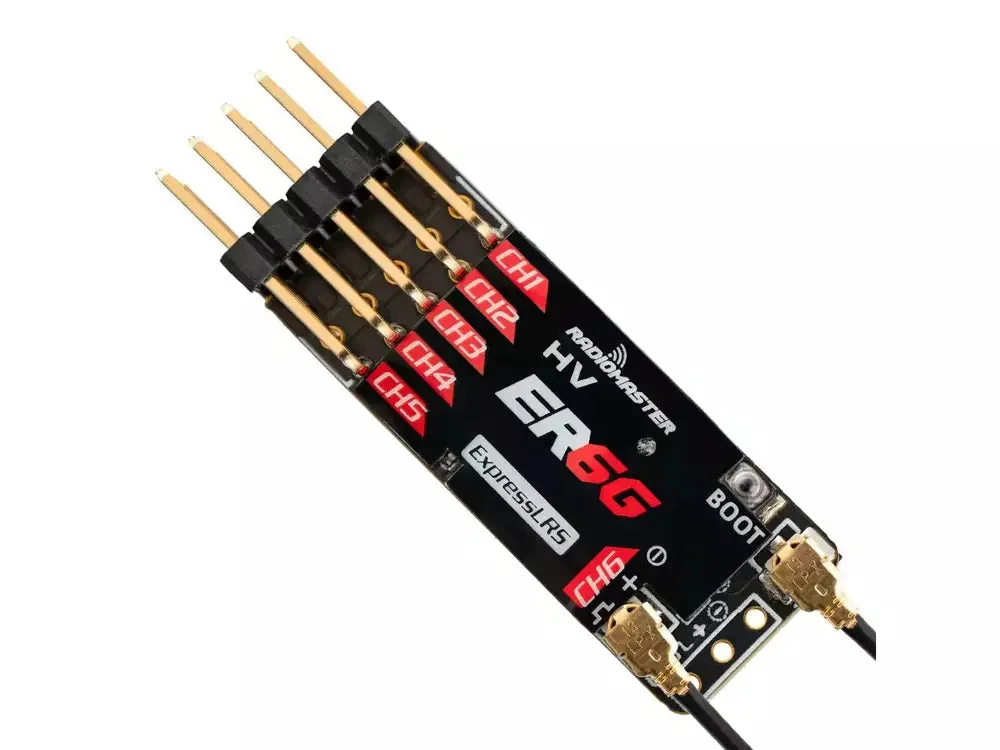

The ER6G & ER6GV receivers have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built-in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a Vario in their receiver.
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector
- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
Specifications:
ER6G
- Item: ER6G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 6CH PWM
- Telemetry power: maximum 50mw (LUA Adjustable)
- Battery voltage detection range: DC 3.0 – 26V
- Weight: 5.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6G
ER6GV
- Item: ER6GV 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.2 pre-installed
- Output channel: 6CH PWM
- Return power: maximum 50mw (LUA Adjustable)
- Built-in high-precision air pressure sensor (Vario)
- Battery voltage detection range: DC 3.0 – 26V
- Weight: 5.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV
Dimensions:
Radiomaster ER Series Receivers
- ER4 ELRS PWM Receiver
- ER6 ELRS PWM Receiver
- ER8 ELRS PWM Receiver
- ER6G/ER6GV ELRS PWM Receiver
- ER8G/ER8GV ELRS PWM Receiver
Includes:
1x Radiomaster ER6G or ER6GV ELRS 2.4GHz PWM Receiver
1x Voltage Telemetry Wire (Type-A)
2x Heat-Shrink Tube
1x User Card
Download ER6G Manual
Download ER6GV Manual
