Description

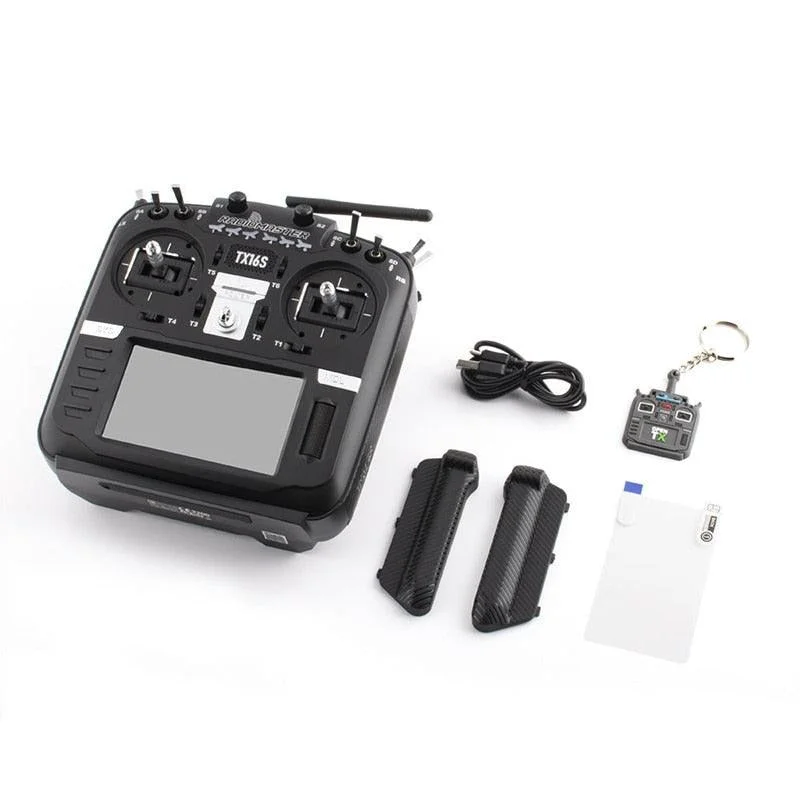

RadioMaster TX16S Mark II V4.0 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Technical parameters: KV1100

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Origin: Mainland China

NAME: HANMA

Model Number: TX16S MKII V4.0

Material: Composite Material

Four-wheel Drive Attributes: Battery

For Vehicle Type: Airplanes

Brand Name: abay

Only Mode 2 Left throttle option.if you want Mode 1 right throttle .please kindly contact us.we will send a Change mode video to you .you can follow it to change.
SpecificationSize: 287×129×184mmWeight: 750g (without battery)Transmission frequency: 2.400GHz-2.480GHzTransmitter module:Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)Option 2: Internal ELRS(Sx1280)Transmitting power:lnternal 4-in-1 multi-protocol module : Max 100mw(protocol dependent)lnternal ELRS : Max 250mw(transmitting power is adjustable)Antenna gain: 2db (transmit power adjustable)Working current: 400mAWorking voltage: 6.6-8.4v DCRemote control distance:> 2km @ 22dbmRadio firmware: EdgeTXModule Firmware: Multiprotocol- Module (4IN1)-OR-ExpressLRS(ELRS)Channels: Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal:Option 1: v4.0 Hall sensor with Aluminium fascia.Option 2: AG01 CNC Hall sensorModule Bay: JR compatible module bayUpgrade method: Supports USB-C online / SD card offline upgrade IMPROVEMENTS

• Improved internal circuity and optimized power supply.
• New charge circuitry with integrated reverse-polarity protection.
• Optimized charge lC. better balancing and USB-C charge current management.
• Rear mounted audio jack provides headphone output.
• V4.0 Gimbal improved centring and temperature stability(Same circuitry as AG01).
• Optional high/low rear grips included for improved ergonomics.
• Improved S1/S2 knobs with clear centre-detents.
• Improved LS/RS Sliders with smoother feel and better centre-detents.
• Redesigned battery cover for improved battery access.
• Retooled body shell with improved fit and finish.
• Trainer socket changed to standard TRS 3.5mm socket.
• Rear DIY Socket added for personalised mods.
• Improved internal plastics for better longevity.
• Available ELRS and 4in1 versions.

MAX units feature carbon look face plates and CNC finishing components and buttons.LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

The RadioMaster TX16S Mark II V4.0 features ELRS (Electronic Linkage Rate System) support for both EdgeTX and OpenTX systems. available in 4in1 and ELRS versions. This controller also boasts multi-directional movement with a maximum travel distance of 480k77 mm. adjustable hall gimbal settings without disassembly. and a minimum/maximum stick travel limiter set at 1/2 inch. Additionally. the horizontal axis tensioner allows for precise control over left/right movements.

Optional high/low rear grips included for improved ergonomics . 4.3-inch full-colour touch display with a Improved internal plastics for belter longevity.
