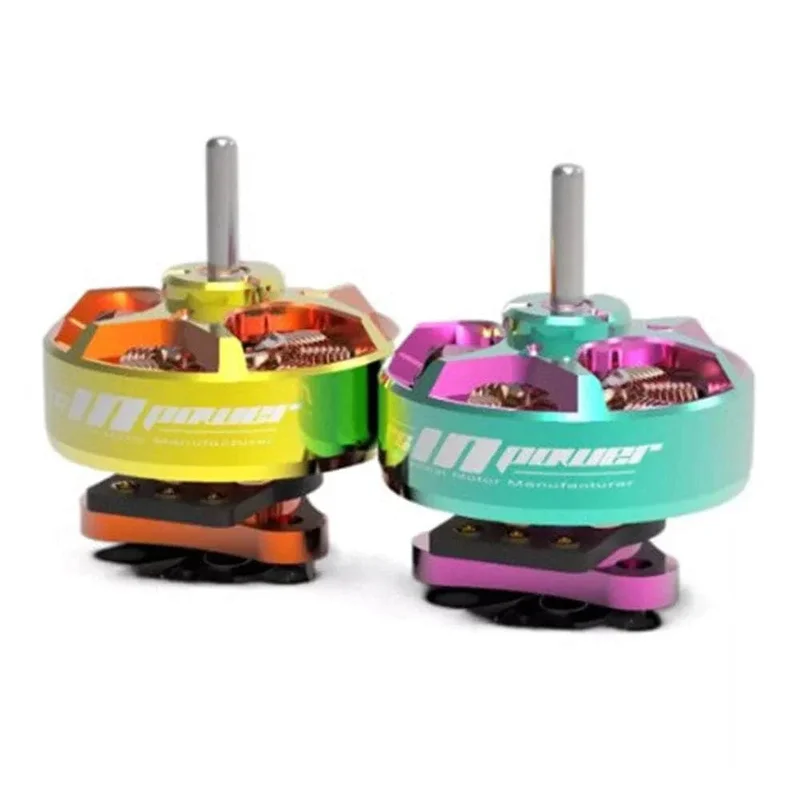

The RCINPOWER GTS V3 0802 Brushless Motors are engineered for serious micro FPV racers and freestyle pilots who demand maximum precision and performance in 65mm–75mm (1.6″) whoops. Available in 22000KV. 25000KV. and 27000KV. these motors are optimized for 1S LiPo setups. delivering punchy throttle response. high RPM. and smooth linear power.
With a Unibell construction. stunning dual-color anodized finish. and high-efficiency arc-shaped N52H magnets. the GTS V3 motors are lightweight yet rugged. offering exceptional dynamic balance and long-lasting reliability. The 1mm shaft with 1.5mm inside diameter. CNC machined bell. and double ball bearing system ensure silky-smooth rotation even under aggressive flight conditions.
Key Features
-
Available in 22000KV. 25000KV. 27000KV for tuning flexibility
-
0802 Micro Brushless FPV Motor. perfect for 1.6” prop whoops
-
Unibell structure with precision CNC machined aluminum bell
-
N52H arc magnets + 9N12P stator design for max torque and magnetism
-
1S compatibility (3.7V–4.35V). ideal for lightweight builds
-
1mm shaft / 1.5mm internal – durable and prop-friendly
-
Weight: only 1.97g with plug. ideal for micro racers
-
Double ball bearings for longer motor life and improved smoothness
-
Compatible with Gemfan 1203. 1204. 1635. 1636 1.6” props
Technical Specifications (per KV option)
| Spec | 22000KV | 25000KV | 27000KV |
|---|---|---|---|
| Voltage (1S) | 3.7V | 3.7V | 3.7V |
| Max Power | 21.5W | 24.1W | 26.6W |
| Max Current | 5.8A | 6.5A | 7.2A |
| Internal Resistance | 117mΩ | 105mΩ | 95mΩ |
| Idle Current (5V) | 0.2A | 0.25A | 0.3A |
| Dimensions | Φ11.2 × 8.2mm | Φ11.2 × 8.2mm | Φ11.2 × 8.2mm |
| Weight (incl. plug) | 1.97g | 1.97g | 1.97g |
| Max Efficiency Current | (1–2A) > 82% | (1–2A) > 82% | (1–2A) > 82% |
🚀 Performance Test Highlights
-
22000KV: Balanced for longer flight time & stable power. 37.68g thrust . All rights reserved.
