Description
Overview

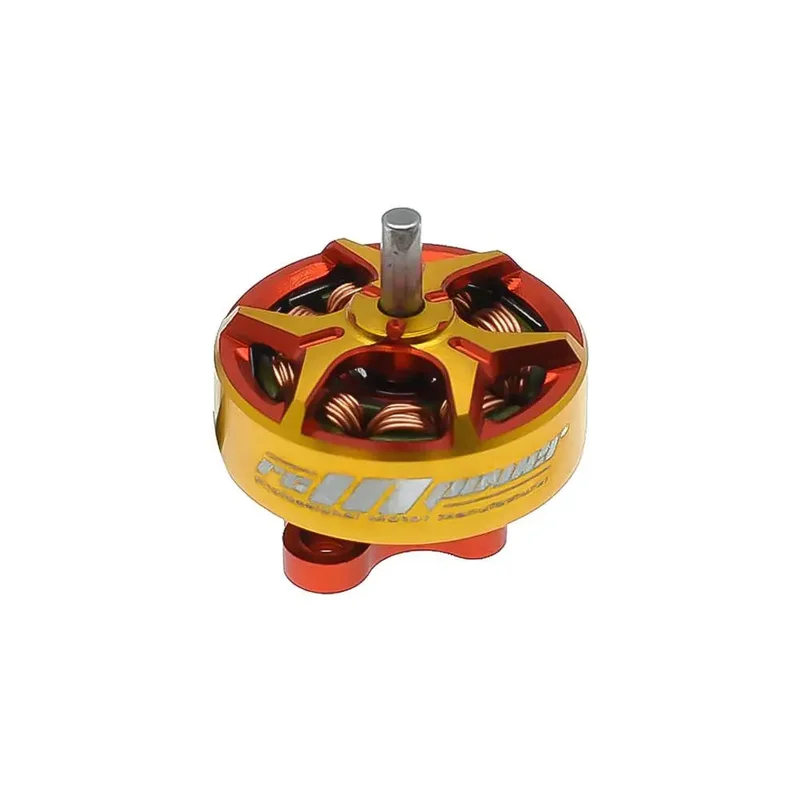

The RCINPOWER GTS V3 1003 Brushless FPV Motor is engineered for powerful and precise performance on 1.6–2 inch freestyle micro drones. including toothpick and tinywhoop builds. Available in 10000KV (2S). 18000KV (1S). and 22000KV (1S) versions. it provides flexible tuning for racing. cruising. or freestyle flights.
Built on a 3mm stator height. the GTS V3 1003 motor delivers increased torque compared to standard 1002 motors. It features a 1.5mm shaft. high-strength unibell design. and efficient cooling system. Each motor is factory-balanced and optimized for maximum thrust-to-weight ratio. making it a top-tier choice for pilots looking for smooth response and reliable durability.
Key Features
-
Micro 1003 motor designed for 1.6–2 inch FPV drones
-
Available in 10000KV (for 2S). 18000KV / 22000KV (for 1S)
-
3mm stator height for enhanced low-end torque
-
1.5mm shaft fits most T-mount props
-
9N12P configuration with unibell design for durability
-
Lightweight at 3.45g including 5cm wire
-
Compatible with Gemfan GF1608. GF1609. GF2023. GF45mm. and other micro props
-
Designed for freestyle. racing. and long indoor flights
-
Supports both low voltage control and high-load output
Specifications
| Parameter | 10000KV | 18000KV | 22000KV |
|---|---|---|---|
| Voltage Support | 2S (7.4V) | 1S (3.7V) | 1S (3.7V) |
| Configuration | 9N12P | 9N12P | 9N12P |
| Stator Size | 10mm x 3mm | 10mm x 3mm | 10mm x 3mm |
| Shaft Diameter | 1.5mm | 1.5mm | 1.5mm |
| Dimensions (Dia × L) | Φ13.5mm × 9.2mm | Φ13.5mm × 9.2mm | Φ13.5mm × 9.2mm |
| Weight (incl. wire) | 3.45g | 3.45g | 3.45g |
Idle Current . All rights reserved.
