Description
RunCam Split FPV + HD Camera with WiFi
RunCam has designed a dual purpose product that serves as both your FPV camera and HD recording device. The Split has similar specs to the RunCam 3 for recording high quality HD video at 1080P 60FPS with its fantastic WDR algorithms, while also serving as an FPV camera with specs and image quality similar to the highly popular RunCam Eagle. This allows you to save space and weight on your builds without sacrificing any functionality or quality. This is truly an exciting product.
The actual camera is similar to the RunCam Swift Mini in size ( Split is a little smaller ) and is attached to a PCB board that can be stacked with your flight controller/PDB. This protects the board from damage during crashes – no more having an expensive cube as your crash bumper.
Specifications:
| FOV Angle of Field | FPV FOV 130° / Recording FOV 165° |
| Video Resolution | 1080@60fps / 1080@30fps / 720@60fps |
| Video Files | MOV |
| Image Resolution | 2 Megapixels |
| TV Output | NTSC / PAL Switchable |
| Real-Time Audio Output | Yes |
| Interface | Micro USB / UART |
| Max Micro SD Card Supported | 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II) |
| WiFi Module | Support (Removable) |
| Dimensions | PCB 36*38mm / Lens Module 22*20mm |
| Power Input | DC 5V |
| Working Current | 650 mAh |
| Weight | 21g |

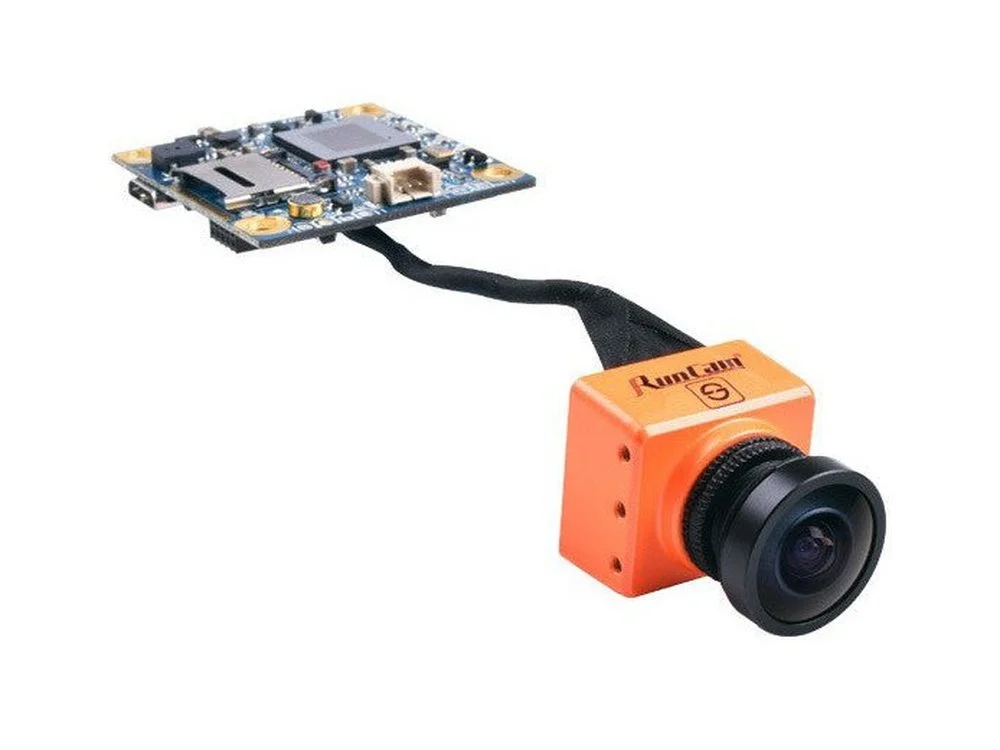

Split FPV Camera
Split Connection and WiFi Module
Split Mounting Bracket
Split PCB Drawing
Split Camera Lens
Includes:
1x Camera ( 1x 90mm Lens Extension Cable included)
1x WiFi module
1x 180mm Lens Extension Cable
1x Aluminum bracket
1x ABS bracket
1x 3pin FPV silicone cable
1x TV-out and power cable
2x Set of screws
1x Manual
Download Manual
Note: Now shipping with longer RC25G, GoPro like lens
