Description
FEATURES
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- Built-in 16Mb black box memory, Barometer, 5 UART ports, 6 PWM output ports, 2 ADC ports, 1 l2C port, 1 Camera Control Port.
- Integrated 36V input power supply, up to 6S lipo battery supported, 5V 2A BEC Output.

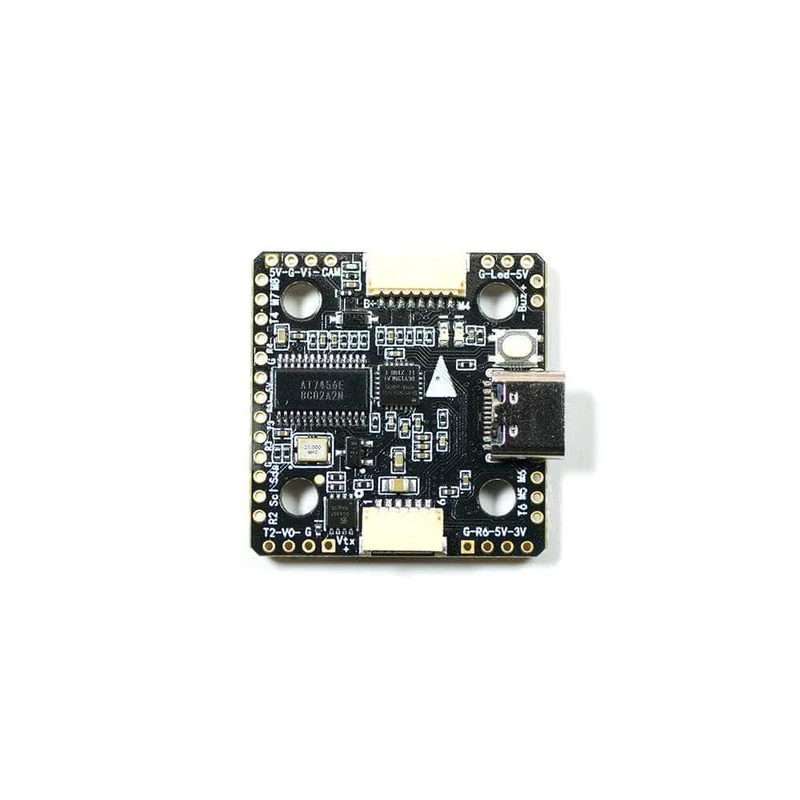

- Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
- Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
- The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.
SPECIFICATIONS
- MCU: STM32 F722
- GYRO: ICM42688P
- Blackbox: 16Mb SPI Flash
- Input Voltage: 7-36V (3-6S)
- BEC Output: 5V/3A
- OSD: CVBS PAL/NTSC
- Mounting Holes: 30.5mm x 30.5mm
- LED: Compatible
- Dimensions: 29mm x 29mm x 6.8mm
- Weight: 5g (Without Cables)
PACKAGE INCLUDES:

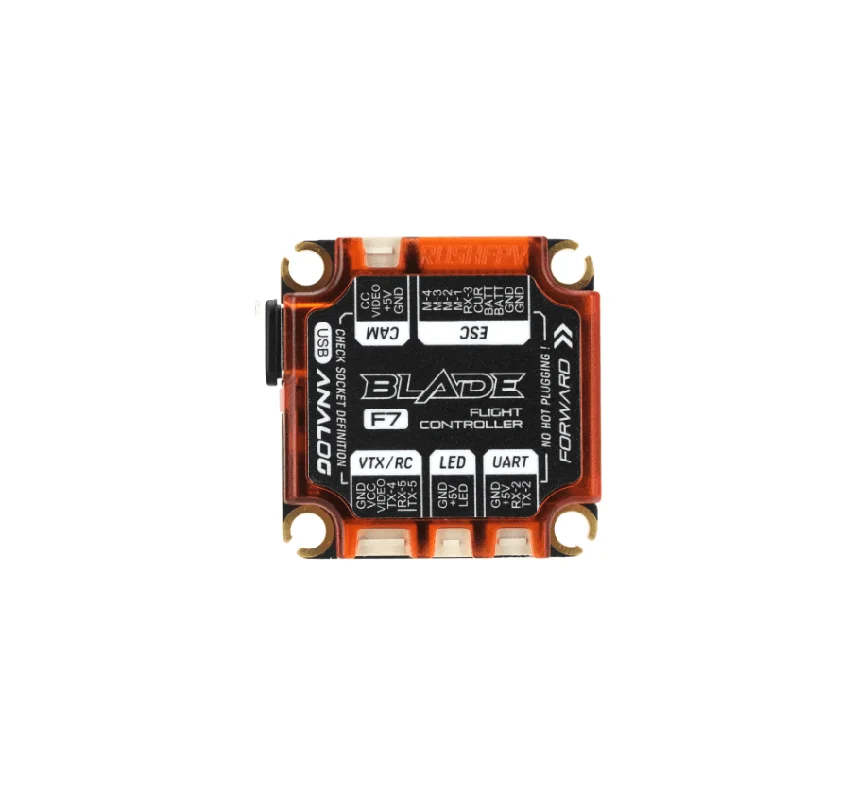

- 1 x RUSH BLADE F722 30×30 Flight Controller For Analog
- 1 x 60MM LED Cable
- 1 x 60mm UART Cable
- 1 x 60MM Modular ESC Cable
- 1 x Camera Cable
- 1 x VTX Cable
- 5 x Small Grommets
- 5 x Big Grommets
