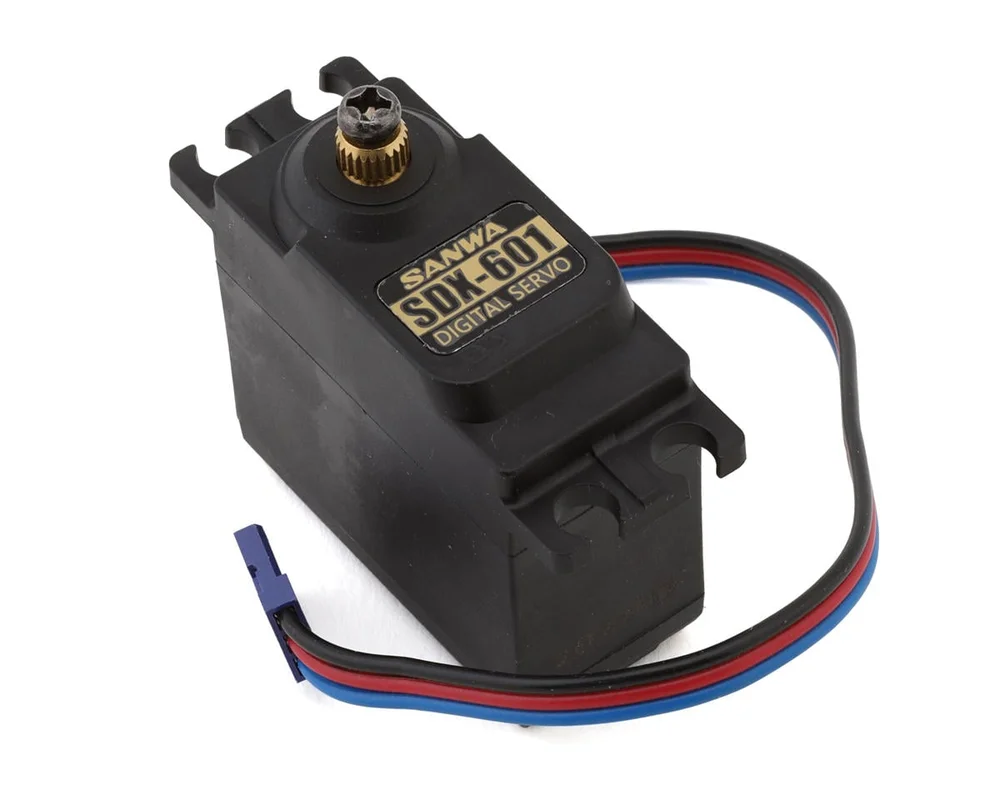

Sanwa/Airtronics SDX-601 High Torque Metal Gear Digital Servo

Description

Servo Overview:

Sanwa/Airtronics SDX-601 High Torque Metal Gear Digital Servo. Compatible with SHR and NOR response modes, this budget friendly digital servo with an all-metal gear design for durability is capable of putting out 7.2kg-cm of torque and 0.14sec/60° of speed at 6V!

Specifications:

• Speed:
• @6.0V: 0.14sec/60°
• Torque:
• @6.0V: 99.9oz-in (7.2kg-cm)
• Dimensions: 40.7x20x39.4mm
• Weight: 49g
• Operating Voltage: 4.8-6.0V
• Spline: 25T
• Waterproof: No

Includes:

• (1) SDX-601 High Torque Metal Gear Digital Servo

This product was added to our catalog on February 13, 2024
