Description

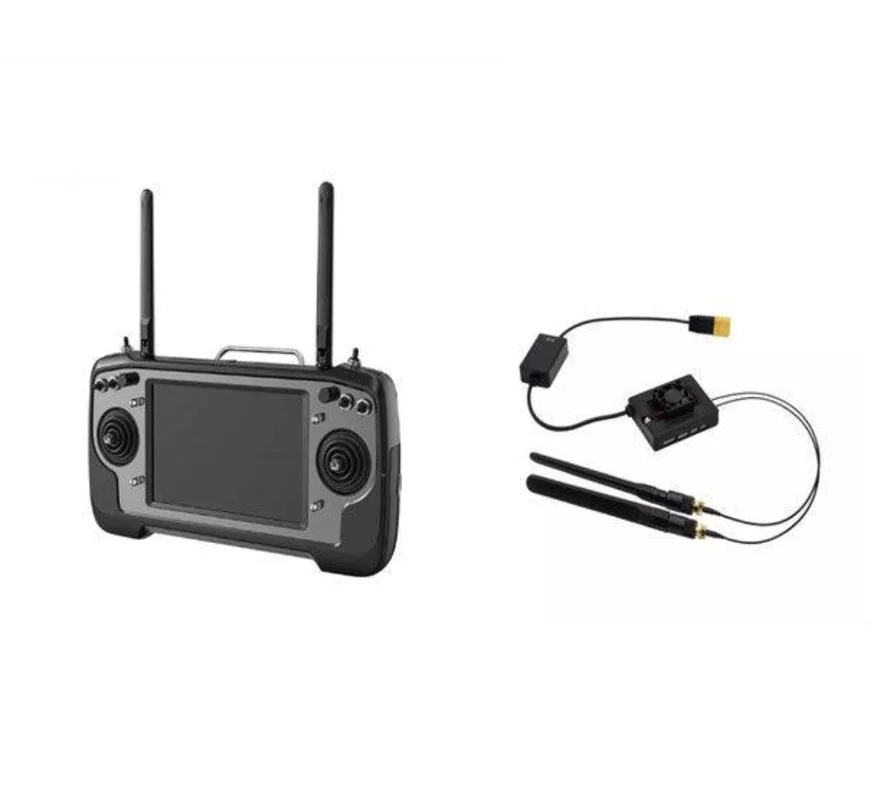

SIYI MK32 Enterprise Handheld Ground Station SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Remote Control

Tool Supplies: Remote Control

Technical parameters: Value 8

Size: 308 x 148 x 72 mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: SIYI MK32

Material: nylon

Four-wheel Drive Attributes: Remote Control

For Vehicle Type: Airplanes

Specifications:

Technical Overall Model: MK32Max Transmission Range: 15 kilometers (unobstructed. free of interference)Channels: 16 physical channels. 16 communication channelsDatalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink outputImage Transmission Compatible Android GCS:- QGroundControl- SIYI FPVImage Transmission Compatible Windows GCS:- QGroundControl Ground Station Monitor: 7-Inch High Definition and High Brightness LCD TouchscreenSystem: Android 9.0 OS. 4G RAM & 64G ROMDimension (antenna overlapped): 308 x 148 x 72 mmWeight: 1440 gBattery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion. 75.48 WhFast Charging Protocol: PD 30WCharging Time: 3.5 Hours (30W PD Charging)Battery Life: 10 hoursInterface & Ports:- Video Output: Standard HDMI- External Device: USB-A- MIC Input: Top Audio Port- Charging: Type-C- Firmware Upgrade: Type-C- File Transfer: Type-C / USB-A- 4G Cellular Network: SIM Card Slot- External Storage: TF Card Slot / USB-A- Communication: LAN (Ethernet)- RC Input / Output: Bottom Audio PortWaterproof Level: IP4XWorking Temperature: -10 to 50℃ Air UnitSignal Output: 16 channels of S.BUS. 5 channels of PWMInterface & Ports:- SBUS: 3-Pin- Datalink (to FC): UART 4-Pin- PWM Channel 1 to 5: 6-Pin- Video Input: Ethernet 8-Pin- Firmware Upgrade: Type-CDimensions (antenna excluded. fan included): 70 x 55 x 16 mmWeight (antenna excluded): 74 gAntenna Gain (standard omni): 5 dBiPower Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)Working Temperature: -10 to 50℃ Air Unit HDMI Input Converter(Optional or Packed with HDMI Combo) Video Input Port: Mini HDMIVideo Output Port: EthernetWorking Voltage: 12 VPower Consumption: 3 W TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps. 720p (1280 x 720) @ 30 fps Video Storage Bitrate: 12 Mbps File Storage Format: FAT32Video Format: H.265Supported MicroSD Cards: MicroSD Class10. Max 32GBWorking Temperature: -10 to 50℃ Dimensions: 42 x 41 x 11 mmWeight: 26 g

SIYI MK32 Enterprise Handheld Ground Station features a 7-inch high-definition touchscreen display with high brightness. powered by Qualcomm core CPU. equipped with 4GB RAM. 64GB ROM. and supports 1080P dual operator mode. as well as digital image relay via 1SKM/2OP PC.

The SIYI MK32 Enterprise Handheld Ground Station features a 7-inch high-definition display with high brightness. powered by a Quarkcomm Core CPU. and equipped with 4GB of RAM. 64GB of ROM. and dual operators ISKM (Input-Output System for Key Management) and 1080p RC relay digital image transmission.

The built-in 7-inch high-definition (HD) monitor with a maximum brightness of 1.000 nits (cd/m2) provides a highly clear and bright screen display.

The Wireless Digital Image Transmission (MK32) is built upon SIYI’s proprietary wireless HD image transmission technology. which enables automatic adaptation to the frequency band with minimal interference.

The MK32 features an Android system powered by a Qualcomm core that efficiently decodes 1080p 60fps video streams in either H.264 or H.265 formats.

The dual operator feature allows for simultaneous control of the same air unit by two ground stations. Additionally. the remote control relay function enables long-range control. making it suitable for various applications such as UAV inspections. surveillance. and remote delivery.

This product features an abundant interface with a knob-knob design. including a 3-stage switch. type-C USB output. and input options for S-Bus and PPM. It also supports SIM technology. TF card expansion. and LAN charging via Ethernet.
