Description
Package Inldues:
1 x MK32 Ground Unit(Dual Version)
1 x HM30 Ground Unit
2 x HM30 Air Unit
1 x R1M Recording Camera
1 x HM30 Quick Release Battery

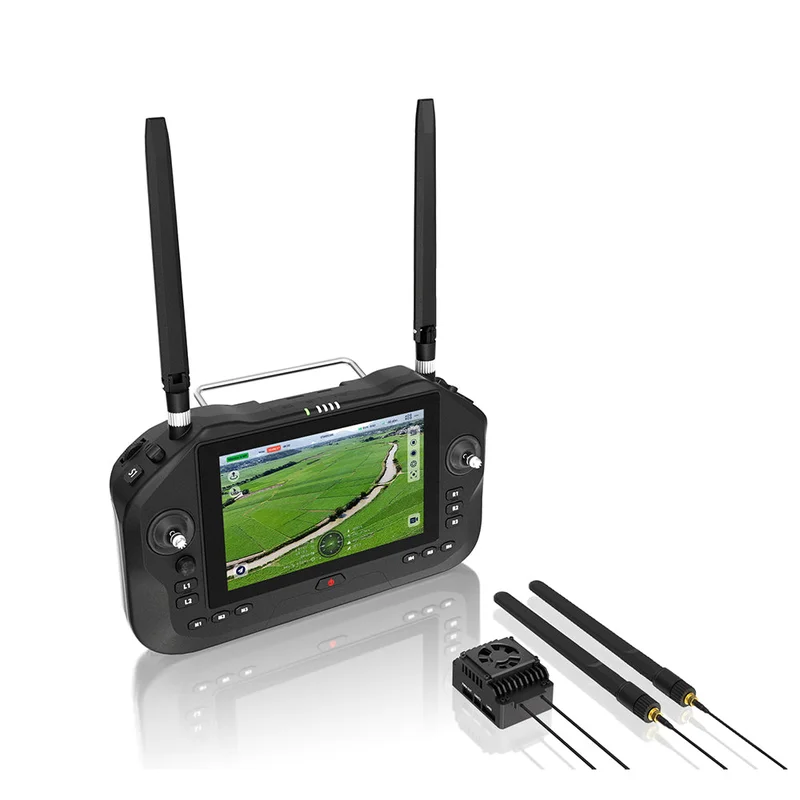

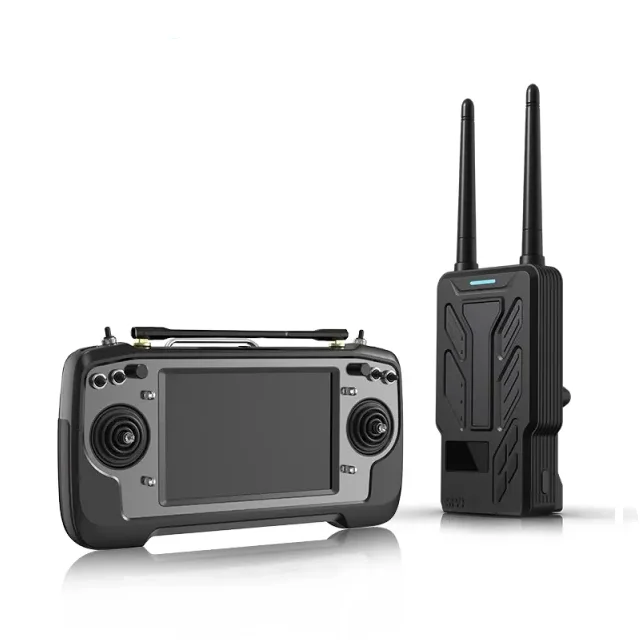

SIYI MK32 is a long range radio with 7″ HD high brightness touchscreen. it is great for the multi-rotor drones for aerial photography. UAV Drones for searching. monitoring. delivering. inspection and etc.
Specification:
Model: MK32
Max Transmission Range: 15 kilometers (unobstructed. free of interference)
Channels: 16 physical channels. 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
– QGroundControl
– SIYI FPV
Image Transmission Compatible Windows GCS:
– QGroundControl
Ground Station
Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS. 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion. 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours
Interface & Ports:
– Video Output: Standard HDMI
– External Device: USB-A
– MIC Input: Top Audio Port
– Charging: Type-C
– Firmware Upgrade: Type-C
– File Transfer: Type-C / USB-A
– 4G Cellular Network: SIM Card Slot
– External Storage: TF Card Slot / USB-A
– Communication: LAN (Ethernet)
– RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃
Air Unit
Signal Output: 16 channels of S.BUS. 5 channels of PWM
Interface & Ports:
– SBUS: 3-Pin
– Datalink (to FC): UART 4-Pin
– PWM Channel 1 to 5: 6-Pin
– Video Input: Ethernet 8-Pin
– Firmware Upgrade: Type-C
Dimensions (antenna excluded. fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃
Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)
Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
TF Card Recording Resolution: 1080P (1920*1080) /embed/kuAIMyBx8zc?rel=0″ height=”562.5″ width=”1000″ frameborder=”0″ allowfullscreen=”allowfullscreen”>
Main Features:
–Full HD Digital Image transmission
–Up to 30KM long range
–150ms low latency
–1080P@60fps H.264/H.265 Decoding
–OLED touchscreen
–FPV OSD
–Support PIX and QGC
–Android & IOS Device compatible
Specifications:
| Max Transmission Range |
30 km (Unobstructed. free of interference) |
| Channels |
16 communication channels |
| Datalink Compatible Flight Controllers |
PX4 / ArduPilot Open-Source Flight Controllers: SIYI N7. etc. INAV Open-Source Flight Controllers |
| Video Stream Compatible GCS (Android) |
SIYI Factory Apps: SIYI FPV Open-Source GCS: QgroundControl Mission Planner |
| Video Stream Compatible GCS (Windows) |
Open-Source GCS: QGroundControl Mission Planner (H264 only) |
Ground Unit
| Monitor |
0.96-inch OLED Display |
| Compatible Battery Type |
NP-F550 / F750 / F950 Series Quick Release Batteries (HM30 fly more combo comes with NP-750 quick release battery) |
| Fast Charging Protocol |
PD 30W |
| Antenna Gain |
Standard Omni Antenna: 5 dBi Standard Long Range Antenna: 11 dBi (Optional) Lollipop Antenna: 5 dBi |
| Interface & Ports |
S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin) Datalink Output: UART (GH1.25 4-pin) Ethernet Port: LAN (GH1.25 4-pin) Power Output: VCC (GH1.25 4-pin. without bucket) GCS Datalink Communication: Type-C Firmware Upgrade: Type-C Charge: Type-C Power Input: PWR (XT30) Tripod Connector: 1/4-inch Screw Hole |
| Product Dimensions (Battery and antennas excluded) |
109 x 61 x 28 mm |
| Product Dimensions (Battery and antennas excluded) |
132 g |
| Waterproof Level |
IP53 |
| Working Temperature |
-10 ~ 50℃ |
Air Unit
| Signal Output |
16 channels of S.Bus 5 channels of PWM |
| Interface & Ports |
S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin) Datalink (to FC): UART (GH1.25 4-Pin) PWM Channel 1 to 5: PWM (GH1.25 6-Pin) Video Input / Network Communication: LAN (GH1.25 8-Pin) Firmware Upgrade: Type-C |
| Antenna Gain |
Omni Antenna: 5 dBi (Standard) Lollipop Antenna: 5 dBi (Optional) |
| Working Voltage |
HM30 Air Unit: 3S ~ 6S / 12.6 ~ 25.2 V 4S to 18S Power Module (Optional): 16.8 ~ 75.6 V |
| Power Consumption |
HM30 Air Unit: – Average: 2.8 W – Summit: 12 W HM30 Air Unit + 4S to 18S Power Module: – Average: 3.2 W – Summit: 12 W |
| Dimensions (Antenna Excluded) |
70 x 55 x 16 mm (fan included) |
| Weight (Antenna Excluded) |
HM30 Air Unit: 74 g HM30 Air Unit + 4S to 18S Power Module: 109 g |
| Working Temperature |
-10 ~ 50℃ |
R1M Recording FPV Camera (Optional. packed with both HM30 combos)
| Video Output Port |
Ethernet |
| Image Sensor |
1/2.9 Inch. 2 MP |
| FOV |
Diagonal: 90° Horizontal: 80° |
| Working Voltage |
12 V |
| Power Consumption |
2.5 W |
| Video Recording Resolution |
1080p (1920*1080) @ 30 fps 720p (1280*720) @ 30 fps |
| Recording Bitrate |
12 Mbps |
| Video Recording Format |
MP4 |
| Supported TF / SD Card Type |
MicroSD Class10 Less than 32GB |
| File Storage Format |
FAT32 |
| Dimensions |
42 x 42 x 25 mm |
| Weight |
23 g |
| Working Temperature |
-10℃ ~ 50℃ |
