Description
SKYRC S65 AC Balance Charger SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories:Lithium Battery
Tool Supplies: Battery
Technical parameters: KV1100
Size: As show
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Batteries – LiPo
Quantity: 1 pcs
Origin: Mainland China
Model Number: S65
Material: Metal
Input Voltage: AC . 100-240V
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Display Type: LCD
Discharge Wattage: 10W
Charge Wattage: 65W

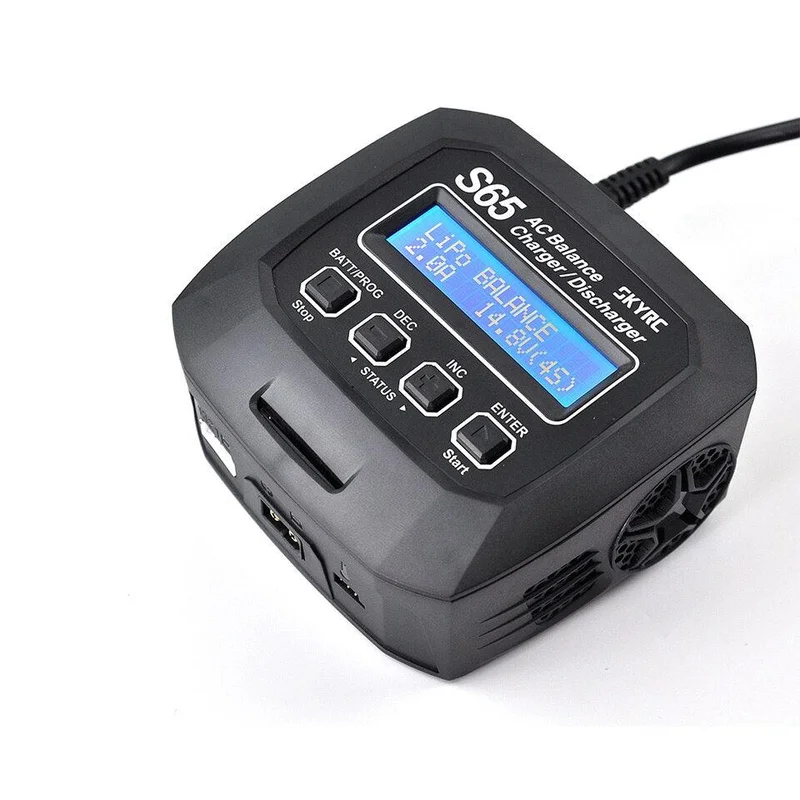

SKYRC S65 AC Balance Charger 10W Discharger XT60 Connector 65W 6A Smart Charger for LiPo/LiFe/Lilon/NiMH/NiCd/PB/LiHV VS B6 S60 S65 Instruction Manual V2.0:https:///s65 SkyRC S65 is an AC input high-performance micro processor control charge/discharge station. with battery management. suitable for use with all current battery types. LiPo. Lilon. LiFe. NiCd. NiMH. PB and also new generation LiHV with end voltage 4.35V. It is an AC input charger/discharger with compact size. The maximum charging power of S65 is 65W with maximum charging current 6A and discharging current 2A. PB AGM & Cold ChargeXT60 Battery ConnectorBigger Cooling FanLithium Battery BalancerProgram Data Store / LoadBattery Resistance MeterBattery Voltage MeterMaximum SafetyTerminal Voltage Control Specifications:Brand:SKYRCModel: S65Case Material: PlasticSocket Type: US.EU.AU(Optional) Case Size: 118*115*45mmWeight: 315gInput Voltage: AC 100-240VCharge Wattage: 65WDischarge Wattage: 10W Battery Types/Cells:LiPo/LiFe/LiIon/LiHV: 2-4 cells. NiMH/NiCd: 6-8 cells .Pb: 3-6 cells Battery Capacity Range:NiMH/NiCd:100-50000mAh.LiPo/LiIon/LiFe/LiHV:100-50000mAh.Pb: 100-50000mAhCharge and Discharge:Charge VoltageNiMH/NiCd: Delta peak detection LiPo: 4.18-4.25V/cell LiFe: 3.58-3.7V/cell LiIon: 4.08-4.2V/cell LiHV: 4.25-4.35V/cellDischarge Cut-off VoltageNiMH/NiCd:0.1-1.1V/cellLiPo:3.0-3.3V/cell LiFe:2.6-2.9V/cell LiIon: 2.9-3.2V/cell LiHV: 3.1-3.4V/cell Charge Current: 0.1A-6.0ADischarge Current: 0.1A-2.0A Balance Cells: 2-4 cells Balance Current: 300mA/cell Max Safety Timer: 1-720minutes off Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd. Embedded XT60 Battery ConnectorBy embedding the XT60 battery connector in the charger. it gets more convenient & safe for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it. AGM & Cold Charge Modes for PB BatterySkyRC S65 can charge AGM battery and also can be used for charging PB battery at very low temperatures. Smart & Efficient Cooling SystemTemperature controlled 7000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink. effectively cooling the device. Higher Accuracy with Three Decimals for Battery VoltageThe charger firmware is highly optimized by displaying the battery voltage with three decimals during the process of charging & battery voltage measuring. Temperature ThresholdIf the temperature limit is reached. the process will be terminated. Package information:Package size: 15.2×14.8x6cm/5.97×5.82×2.36inPackage weight: 492g/17.35ozGeneral Box Package Package Included:1 x S65 Charger1 x Power Cord1 x Manual Notes by OK RC:S65 charger kit only. others not included.There may be some deviation due to manual measurement.The colors deviation might differ due to different monitor settings. please kindly understand.”OK RC” has only one store. no branch. other pictures and s of the same store as us . are competitors copying us. we are more professional than them !We provide you with the best product and service. If you have any problem. please let us know. and we will solve the problem ASAP.Thank you so much. nice day !
This product features an LCD display mode. smart ventilation system. balance lead fan socket. JST-XH ports for resuming or starting charge processes. temperature sensor port. and battery connector confirmation. It also includes an XT60 female connector and can stop charging at any time.
AC= Charger_ Charoer unbupervibedi S65 edotont ol to no Never Vbe The Oeittoo e 10 Lovord Tord Ddioan eroporty Donn UiPo bolodol .
SKYRC AC Balance LiPo LiFc Lilon NiMA Nicd S65 ccrgeanoischarger 4cal J3 6atn 5 Instruction Manual task
