Description

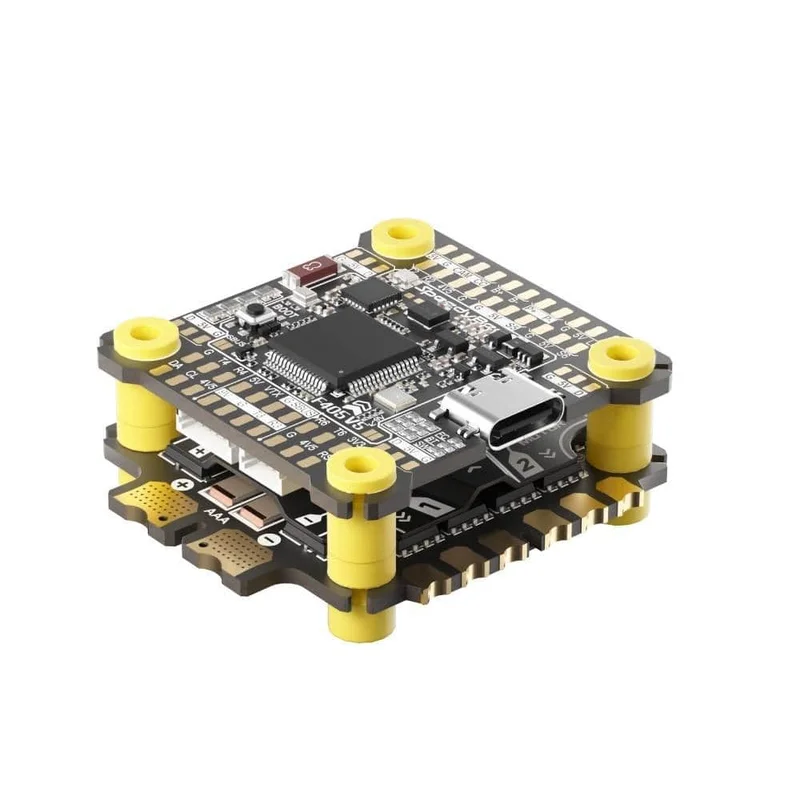

The Skystars Mini F7 HDPRO3 + KM55II AM32 FlyStack is the ideal solution for 3″ and 5″ racing builds. Its 20x20mm format makes it a great fit for compact racing frames, ensuring power and control in every situation. This versatile stack is designed for those seeking reliability and performance.
Check out all our 20×20 stacks, and our SkyStarsRC collection!
Features
- LEDs installed in the four corners; WS2812 programmable LED supported
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire); Supports 3.3V satellite receiver
- High-performance / low-noise / high-sensitivity IMU; BMI with 6-axis gyro and accelerometer
- Supports DJI HD air modules
- Input voltage 12V-26V (3-6S)
- TVS protect
- Automatic voltage monitoring
Specifications
F722 FC
- MCU: STM32F722RET6 216MHz
- IMU: BMI270 (SPI)
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- 5V 2A & 10V 2A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Barometer: YES
- Firmware: SKYSTARS F7HD
- Dimensions: 35 x 28 x 7mm
- Mounting Holes: Standard 20mm/M3 square to the center of holes
- Weight: 4.2g
KM55A II 4IN1 ESC
- Voltage: 3-6S LiPo
- Con.Current: 55A Peak
- Current: 70A≥ 10S
- Firmware: AM_32
- Support : Dshot 600
- Mounting hole : 20X20 mm/M3
- BEC: No
- Product size: 35 x 47 x 6.5mm
- Weight: 16.5g
Includes
- 1x Skystars Kramam 55A II AM32 32Bit 3-6S 20×20 4-in-1 ESC
- 1x Skystars F722 Mini HD Pro3 Flight Controller 20×20mm
