Description

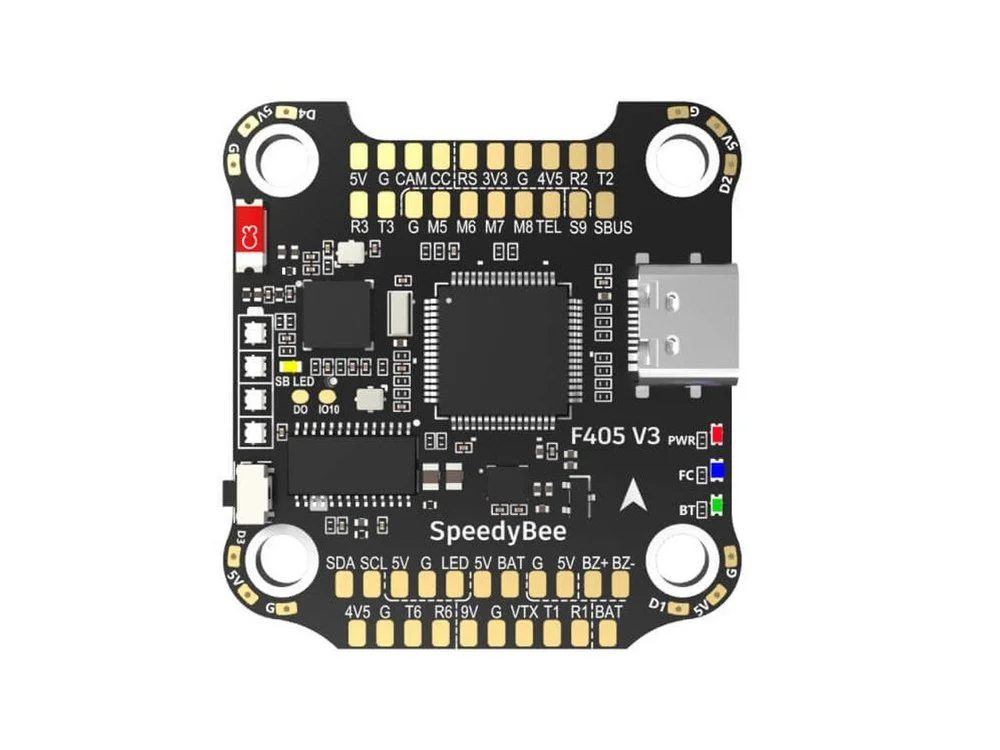

The Speedy Bee F405 V3 Flight Controller is a full-featured FC with all the bells and whistles the company is known for. It features a powerful STM32F405 MCU, onboard 4-level battery life indicator, Micro-SD card slot for Blackbox logging, 4 groups of LED strip pads, DJI plug for digital quads, and even built-in Bluetooth for wireless configuration on the Speedy Bee App.
Specifications:
- MCU: STM32F405
- IMU(Gyro): BMI270
- USB Port: Type-C
- Barometer: Built-=In
- OSD Chip: AT7456E chip
- BLE Bluetooth: Supported
- DJI Air Unit Connection: 6-pin connector and solder pads
- Blackbox Micro-SD Card: 32GB max
- Current Sensor: Supported
- Power Input: 3S-6S LiPo
- Power Output: 9V (2A), 3.3V (500mA), 4.5V(1A), 5V(2A)
- ESC Signal: M1-M8 available
- UART: 5 Sets
- I2C: Supported
- LED: Supported
- Buzzer: Supported
- Boot Button: Press for DFU mode, press when powered to change LED modes
- Firmware Target: SPEEDYBEEF405V3
- Mounting: 30.5 x 30.5mm ( 4mm hole diameter )
- Dimensions: 41.6(L) x 39.4(W) x 7.8(H)mm
- Weight: 9.6g
Download Manual
