Description
Features:
- Charger
- Up to 200W power per channel or 380W on one channel for fast charging
- Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
- Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
- Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
- Smart software tracks and stores numerous smart battery data
- Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries
- Large, 2.8″ display screen
- An on-screen clock counts down remaining charge time until your Smart battery is fully charged and ready to use
- Updated user interface features fresh, intuitive menus, icons and navigation tools, plus non-slip, easy to use buttons
- USB input and output ports are included for updating firmware and charging secondary devices
- ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control
- Detachable power cord makes transporting more convenient
- Includes an efficient, low-noise cooling fan
- Sleek, sturdy case fits well on a workbench and in pit or field bags
- Handy rubber grips on case make it easier to plug in and remove batteries
- IC3® and IC5® connectors are backwards compatible with EC3™ and EC5™ connectors
- Battery
- Simpler and safer to use
- Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Thicker internal metal side plates protect cells and improve heat dissipation
- Integrated microchip stores unique parameters for each battery
- IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
Specifications:
- Charger
- Normal/Standard Charge Rate: 0.1 – 20.0A
- Product Width: 5.67″ (144 mm)
- Technology: Smart
- Application: RC Model Battery Charger
- Reverse Polarity Protection: Yes
- Selectable Charge Rate: Yes
- Software Updates: Yes
- Hard Case: Yes
- Over Current Protection: Yes
- Integrated Balancing: Yes – Internal Balancer & Internal Adapter
- Charge Protection Circuitry: Yes
- Input Voltage: 100 – 240V AC
- Maximum Continuous Discharge Rate: 1.5A
- Output: 2 x 200W, or 380W on one channel
- Battery Balance Connector: JST_XH
- Maximum Charge Rate: 20A
- Low Input Voltage Protection: Yes
- PC Connectivity: Yes
- Product Weight: 37.7oz (1070g)
- Discharge: 0.1 – 1.5A
- Number of Cells: 1 – 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb
- Safety Timer: Yes
- Short Circuit Protection: Yes
- Amp Meter: Yes
- Product Height: 4.13″ (105 mm)
- Product Length: 5.7″ (145 mm)
- Voltage Meter: Yes
- Display: 2.8″ LCD
- Output Connector: IC3 and IC5 selectable
- Peak Detection: Yes
- Thermal Protection: Yes
- Programmable: Yes
- Battery Temperature Monitoring: Yes
- Cooling Method: Fan
- Battery
- Application: Surface
- Battery Balance Connector: G2 Smart
- Battery Type: LiPo (3.7V per cell)
- Battery Voltage: 7.4V
- Capacity: 5000mAh
- Charge Protection Circuitry: Yes
- Connector Type: IC5
- Hard Case: Yes
- Maximum Burst Discharge Rate: 50C
- Maximum Charge Current: 5A
- Maximum Charge Rate: 5C
- Normal/Standard Charge Rate: 1C
- Number of Cells: 2
- Product Height: 0.98″ (35 mm)
- Product Length: 5.45″ (138 mm)
- Product Width: 1.83″ (46 mm)
- Watt Hours: 37
- Wire Gauge: 10 AWG
Includes:

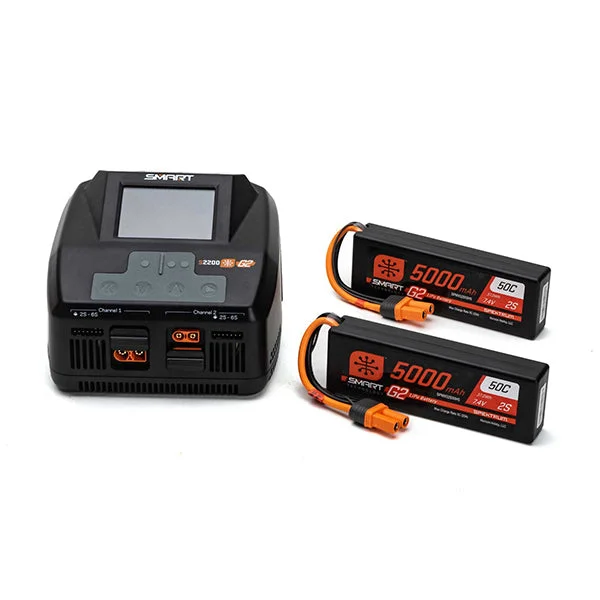

- (1) S2200 G2 AC LiPo Smart Charger (SPMXC2010)
- (2) 2S Smart G2 LiPo 100c Battery Pack (7.4V/5000mAh) (SPMX52S50H5)
