Description

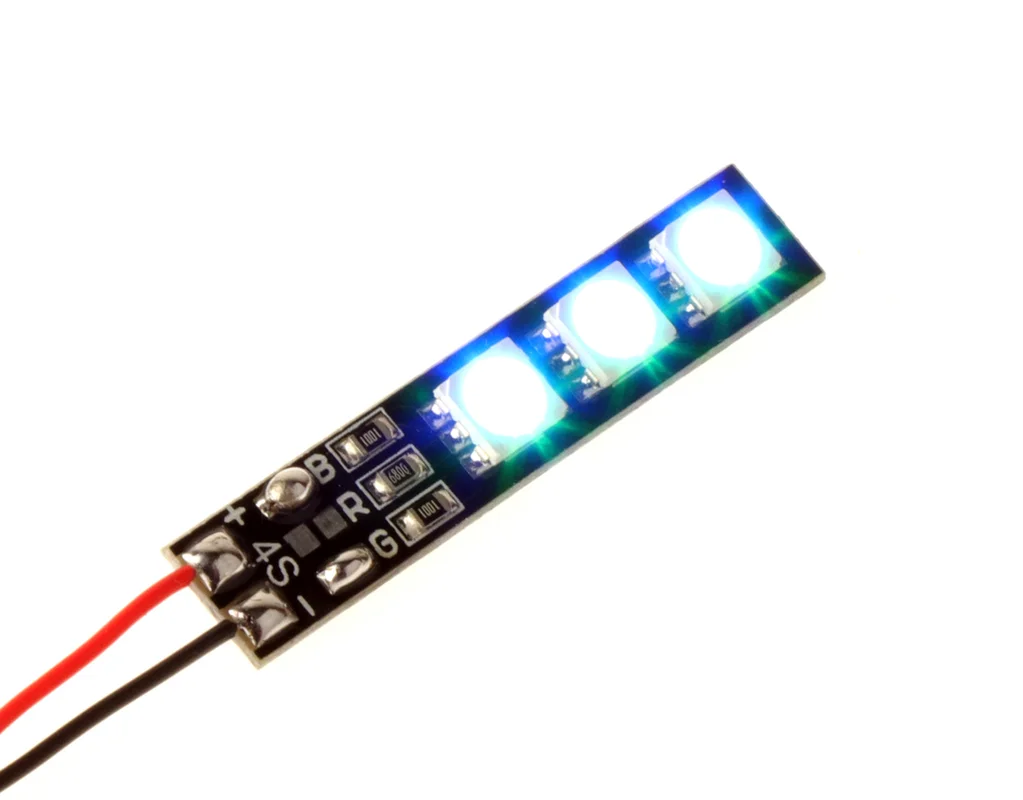

Introducing STRIX 3-4s LED Boards! These are perfect for adding LEDs to your aircraft without worrying about breaking off a dip switch box. Select color combinations by making solder bridges across the selector pads. Note that you must have at least one bridge for it to turn on.
- Includes 1 LED board per package with optional adhesive backing
- 3 LED’s per board
- 10-16v input
- Weight: 1.2g per board (Not including tape)
- Size: 39 x 7.8 x 2.9mm
Color Chart:
| Color | On Switch | Amp |
| Blue | B | 0.03 |
| Red | R | 0.03 |
| Green | G | 0.03 |
| Magenta | B+R | 0.06 |
| Cyan | B+G | 0.06 |
| Yellow | R+G | 0.06 |
| White | B+R+G | 0.09 |
