Description

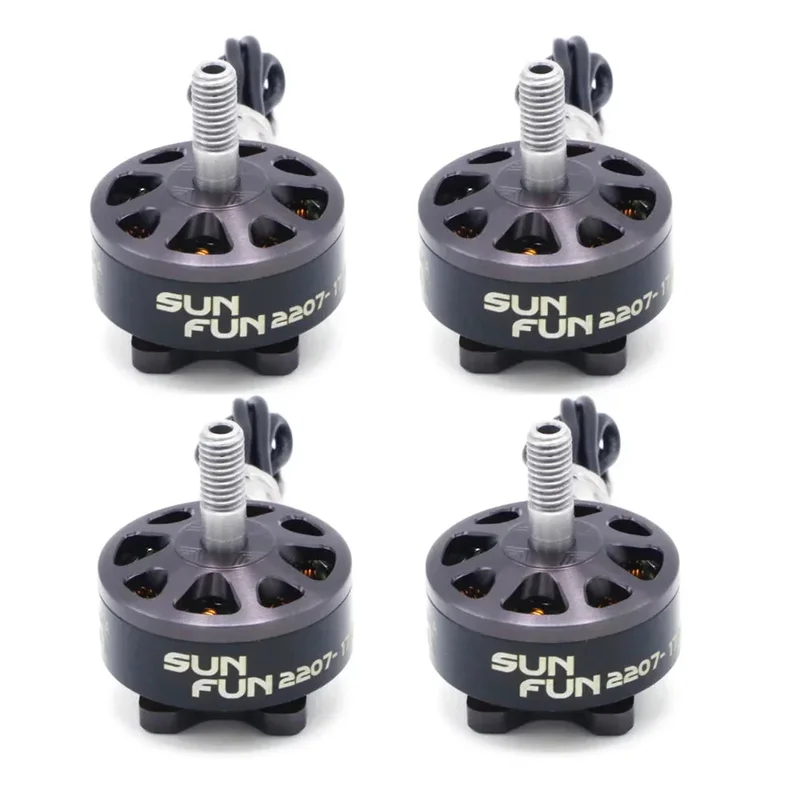

The SUNFUN SF2207 Brushless Motor is designed for FPV drone racing and freestyle enthusiasts. delivering high efficiency. explosive power. and precision control. Available in 1750KV. 2450KV. and 2750KV variants. this motor supports 4S–5S LiPo batteries and is optimized for 5-inch quadcopters. With a durable CW-threaded shaft and high-speed performance. the SF2207 is ideal for aggressive flying styles. offering stable output and thermal reliability under heavy load.
Key Specifications
| Model | KV | Voltage | Max Thrust (g) | Max Power (W) | Battery/Prop Combo |
|---|---|---|---|---|---|
| SF2207 | 1750KV | 4S~5S | 1305g | 539W | LiPo4/5 with 6040/5045/704x Props |
| SF2207 | 2450KV | 4S~5S | 1620g | 664W | LiPo4/5 with 5045/6040 Props |
| SF2207 | 2750KV | 4S~5S | 1460g | 672W | LiPo4/5 with 5045 Props |
-
Stator Size: 2207
-
No-load Current: 1.1A–2.0A
-
Shaft: 5mm CW threaded
-
Mounting: 16mm (4-M3 screws)
-
Motor Dimensions: Φ27.7 × 32.7mm
-
Weight: Lightweight and compact for agile performance
Performance Highlights
SF2207 1750KV . All rights reserved.
