Description

T-MOTOR AT4120 Long Shaft  Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Technical parameters: KV1100

Size: 4120

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 18+

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: AT4120 Long Shaft

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

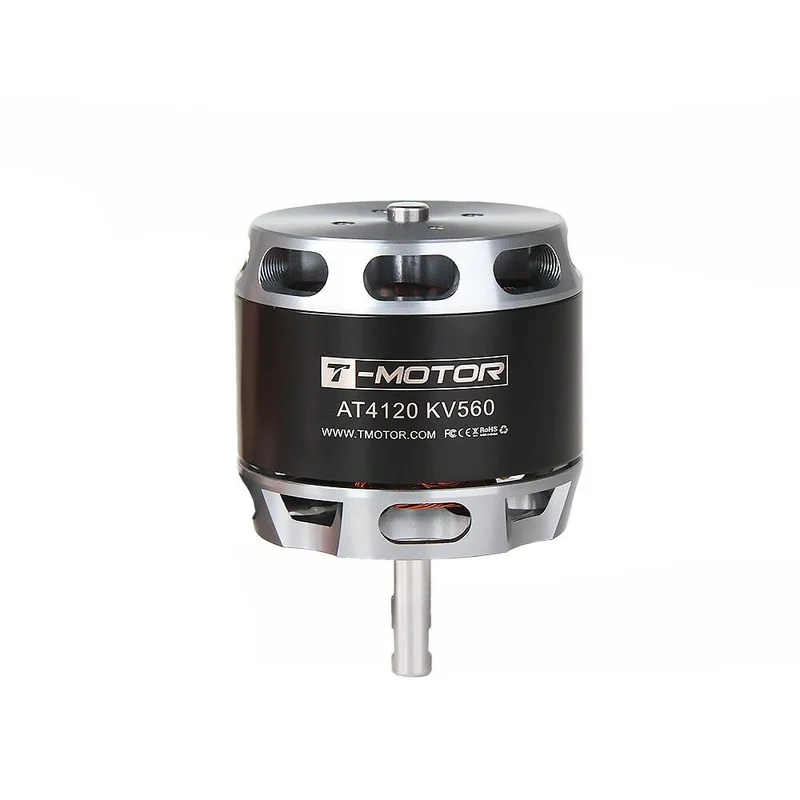

T-MOTOR AT4120 Long Shaft 250kv 500kv 560kv Brushless RC Airplane Electric Motor

the upgradled at series are designed for fixe Wing model. VTOL UA Letls see a leap in quality after well-grounded development attempt . high temperature resistance arc magnets are selected for strong power .

Featuring high efficiency and stable endurance. this motor strikes a perfect balance between technical performance and raw power. Its innovative design incorporates a lateral outlet hole and an internal heat dissipation structure. forming a semi-box-shaped shape that enhances its overall stability.

Utilizing military-grade wire. this motor features high-temperature enameled wire that enhances its resistance to heat and prolongs its lifespan. ensuring reliable performance over an extended period.

Anti-Stripping Design for Enhanced Safety: Our motor features a linear shaft design. combined with a C-clip locking mechanism and shaft collar. providing assurance of safe and reliable operation at high rotation speeds.

Featuring superb workmanship. this motor boasts high-quality materials and attention to detail throughout its design. Its arc magnets are designed for high torque and feature balanced gaps and precision tolerance controls to ensure optimal performance and reliability.

Featuring triple-bearing support for enhanced stability. efficiency. and durability. this motor outperforms ordinary magnets with its curved magnet design.

The propeller adapter features an embossed design for enhanced stability and non-slip mounting. ensuring a secure connection.

The second generation of our AT series motors is now available. featuring a full range of products designed for various applications. Whether you’re building a 3D plane. trainer. glider. or larger-scale fixed-wing drone. we have a suitable power solution to match your specific size and weight requirements.

Motor dimensions: 50mm x 69mm. Internal resistance: 76mΩ. Lead wire: enameled wire. Qmmm configuration. IM: 12N14P. Shaft diameter: 6mm. Rated voltage (Lipo): 11.25V (max).

Key Specifications:Idle Current (1V open circuit): 1.0APeak Current (1 hour rating): 45AMaximum Power: 2100WRecommendations:Test Item: Long Shaft KV MotorWeight (including cable): 305gMotor Dimensions: 50mm x 69mmInternal Resistance: 21mΩLead Wire: Enameled CopperConfiguration: 12N14P (6mm)Shaft Diameter: Rated Voltage (Lipo): 65V OUT. Shaft Diameter: 6mm
