Description

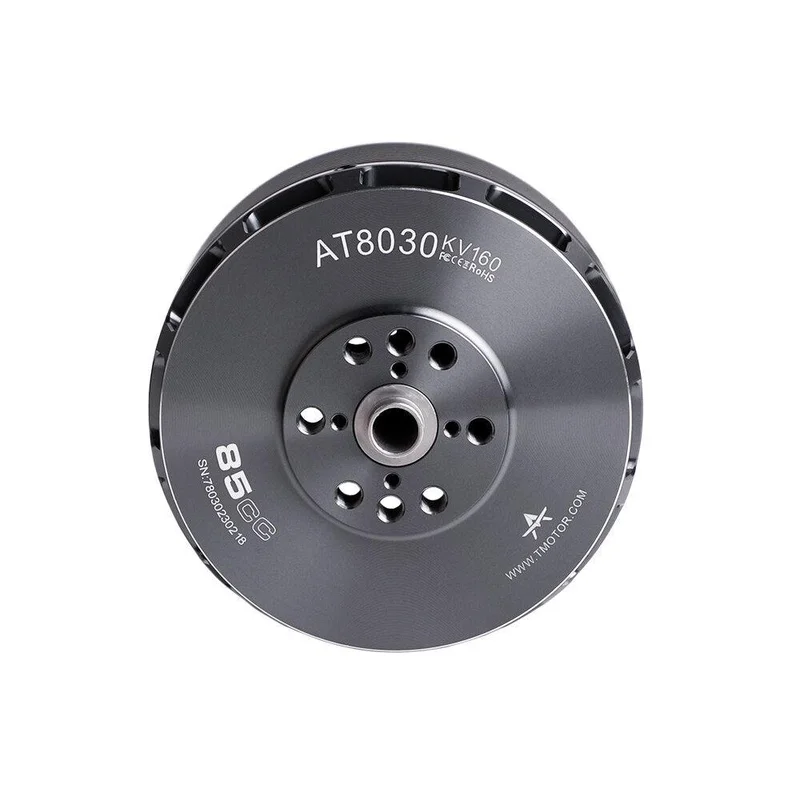

T-MOTOR AT8030 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

Origin: Mainland China

Material: Metal

Brand Name: T-MOTOR

Suitable for fixed-wing with 3.5-4.2m wingspan Takeoff weight about S5kg VTOL UAV 1100g motor weight. can produce explosive 25kg thrust AT8030kv160 8 1 1

Versatile Mounting Options: This motor features a removable propeller adapter. allowing for easy and secure installation on both fixed-wing aircraft and multi-copters. making it a convenient solution for various flying platforms.

Real-time monitoring of motor speed allows for precise control. and the rear output shaft can be equipped with a magnetic coding system to ensure secure and controlled flight speeds.

Maximum diameter: 90mm. Suitable for installing in cylindrical or column-shaped aircraft. this motor features centrifugal active heat dissipation. accompanied by a laminated heat sink at the bottom.

Key Specifications:- KV160 Weight (including cable): 1110g- Motor Dimensions: 90mm x 80.8mm- Internal Resistance: 10.5mΩ- Lead Wound Wire Outlet: 24N28P- Configuration: IN – 12mm Shaft Diameter. OUT – 10mm- Rated Voltage (LiPo): 10-12S- Idle Current (1V. 0.8A): 4.5A- Peak Current (1.8s): 135A/155A- Maximum Power (1.8s. 12S): 5600W
