Description

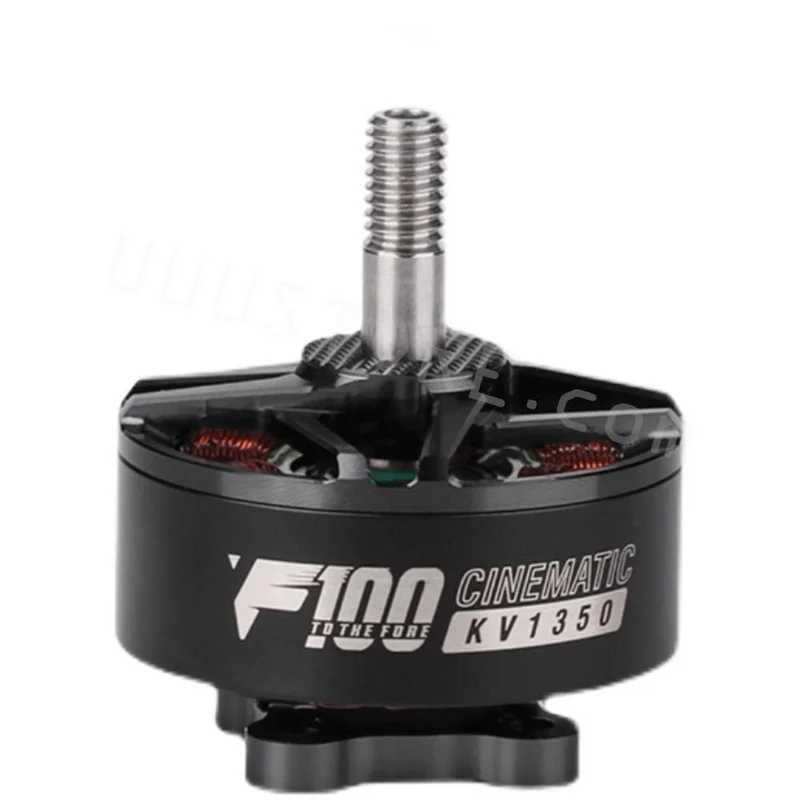

T-motor F100 2810 1350KV 1100KV 5-6S 6S Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Connectors/Wiring

Quantity: 1 pcs

Origin: Mainland China

Model Number: F100 2810

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

Product Drawing 38.05 033 4-M3 Specifications 1100 Configuration 12N14P Internal Resistance 61mn Motor Dimension 033.4*38.05mm Shaft Diameter 4mm Lead 18# 250mm Weight (Incl. Cable) 67g Weight (Excl Cable) Rated Voltage(Lipo) Idle Current(1 OV) 0.98A Max: Power(60s) 1176W Peak Current(60’s) 45.59A

The specifications for the T-motor F100 are as follows: at 85%. the motor produces 2216.91 watts with a current draw of 20.12 amps. efficiency of 45.40%. and power consumption of 14011 watts; at 90%. it produces 2310.82 watts with a current draw of 20.04 amps. efficiency of 50.55%. and power consumption of 14431 watts; at 95%. it produces 2399.85 watts with a current draw of 19.95 amps. efficiency of 55.91%. and power consumption of 14675 watts; and at 100%. it produces 2467.79 watts with a current draw of 19.84 amps. efficiency of 61.65%. and power consumption of 14848 watts.

T-MOTOR F1OO. with a safer propulsion system. is specially designed for 7-8 inch X8 cinelifter build .

Low-throttle performance is smoother. while high-throttle produces increased power. making it easy to complete challenging flights with ease.

The F100 motor offers a maximum thrust of up to 2.467 grams. making it suitable for various camera configurations and ideal for fulfilling diverse shooting requirements.
