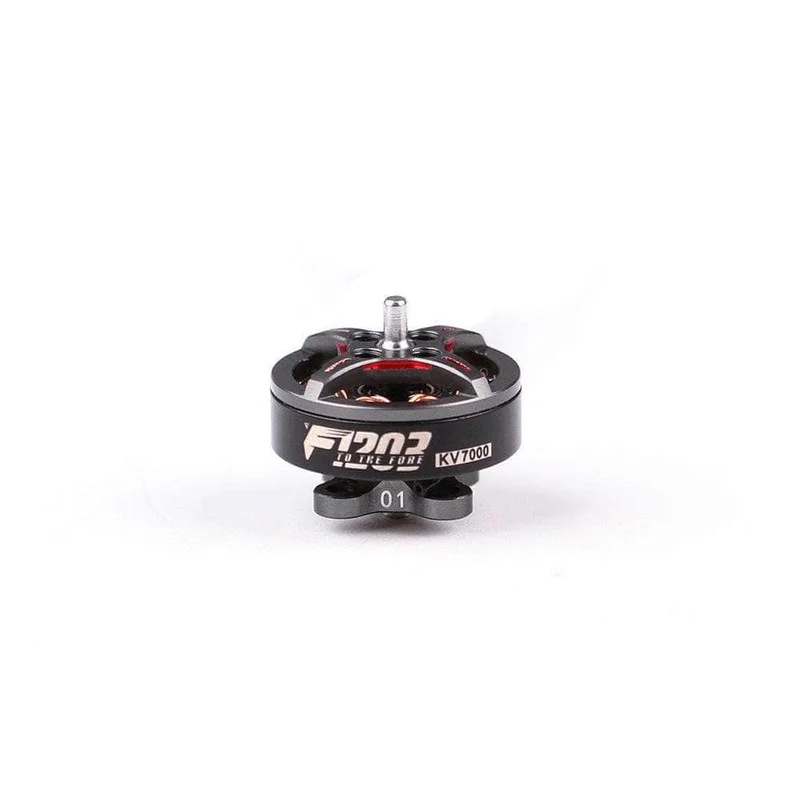

T-Motor F1203 7000Kv Micro Motor

Description

The F 1203 is a killer option for 2.5-3″ 2-3S light racing builds. Equipped with 1.5mm T prop mounting and high efficiency arc magnets, this motor is designed for explosive power and high top speed!

Check out all our motors and all our T-Motor products!

Specifications

• Kv:  7000Kv
• Input Voltage:  2-3S
• Configuration: 9N12P
• Max Continuous Current: 10.85A
• Internal Resistance: 198mΩ
• Motor Dimensions: Φ15.5×14.05mm
• Stator Dimensions: Φ12x3mm
• Shaft Diameter: 1.5mm
• Mounting Pattern: Φ9mm, 4x M2
• Wire Dimensions:  28AWG, 75mm
• Weight: 5.25 (w/ wire)

Includes

• 1x T-Motor 1203 7000Kv Micro Motor
